Vision Wide MHN-8035 / MHN-8042
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way single ballscrew
z axis travel linear way enclosed box ram dual ballscrews
max table load
How much does the Vision Wide MHN-8035 / MHN-8042 cost?
Price estimate
We do not have a price for the Vision Wide MHN-8035 / MHN-8042 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Each column of the Vision Wide MHN-8035 / MHN-8042 is a single casting. Vision Wide describes a one-piece casting column structure with a thick section that links the rigidity of the beam and the base and enhances YZ-axis machining rigidity.
The columns are the path by which every cutting force returns to the foundation. In a bridge machine the beam is stiff and the bed is stiff, and the weak point, if there is one, is the joint between them. A column built up from sections has bolted faces in that path; a one-piece column does not. The benefit is felt most in cuts that push the head along Y or lift it in Z, which is what the maker's wording refers to.
This is an eight-metre machine. X travel is 8,100 mm (318.9 in), the table is 8,000×3,000 mm (315.0×118.1 in), and the load rating is 32,000 kg (70,547 lb). Y travel is 3,500 mm (137.8 in) on the MHN-8035 and 4,200 mm (165.4 in) on the MHN-8042.
The standard head is a box way type with 920 mm of Z travel and a 4,000 rpm 2-step gear spindle on 22/26 kW (29.5/34.9 hp). X/Y rapid is 8 m/min; cutting feed is 1-7,000 mm/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 8,100 mm (318.9 in) |
| Y Axis Travel | 3,500/ 4,200 mm (137.8/ 165.4 in) |
| Z Axis Travel Box Way Single Ballscrew | 920 / 1,020 mm (36.2 / 40.2 in)(Opt.) |
| Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews | 1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.) |
| Table Size | 8,000×3,000 mm (315.0×118.1 in) |
| Max Table Load | 32,000 kg (70,547 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp)(30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 4,000 / 6,000 rpm(Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear | 4,000 / 6,000 rpm(Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram Direct Driven | 10,000 rpm (Opt.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xy | 8 m/min |
| Rapid Traverse Z Box Way or Linear Way | 15 m/min |
| Rapid Traverse Z Enclosed Box Ram | 12 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- One-piece casting columns linking beam and base
- 32,000 kg (70,547 lb) on an 8,000×3,000 mm (315.0×118.1 in) table
- 8,100 mm (318.9 in) of X travel
- Box way head with a geared 4,000 rpm spindle
Limitations
- X/Y rapid of 8 m/min over the long table
- Standard Z travel of 920 mm on an eight-metre machine
- No tool magazine on the page
Best For
Frequently Asked Questions
01
As one-piece castings with a thick column section. Vision Wide says this effectively links the rigidity of beam and base and enhances YZ-axis machining rigidity.
02
X 8,100 mm (318.9 in). Y 3,500/ 4,200 mm (137.8/ 165.4 in). Z 920 mm on the box way head, or 1,020 mm optional; 1,000 mm, 1,200 mm or 1,400 mm on the optional dual-ballscrew heads.
03
32,000 kg (70,547 lb), on an 8,000×3,000 mm (315.0×118.1 in) table. The six-metre MHN-6035 takes 28,000 kg (61,728 lb).
04
22/26 kW (29.5/34.9 hp) as standard and 30/37 kW (40.2/49.6 hp) as an option. The standard spindle is a box way 4,000rpm 2-step gear type.
More from Vision Wide
Other Vertical Machining Centers (VMC)
Haas PMC-500SS

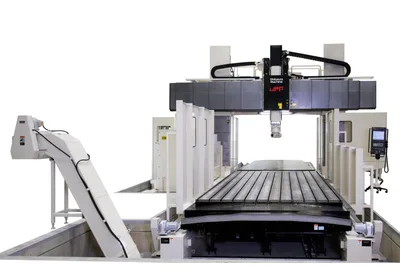

Shibaura Machine MPF Series
