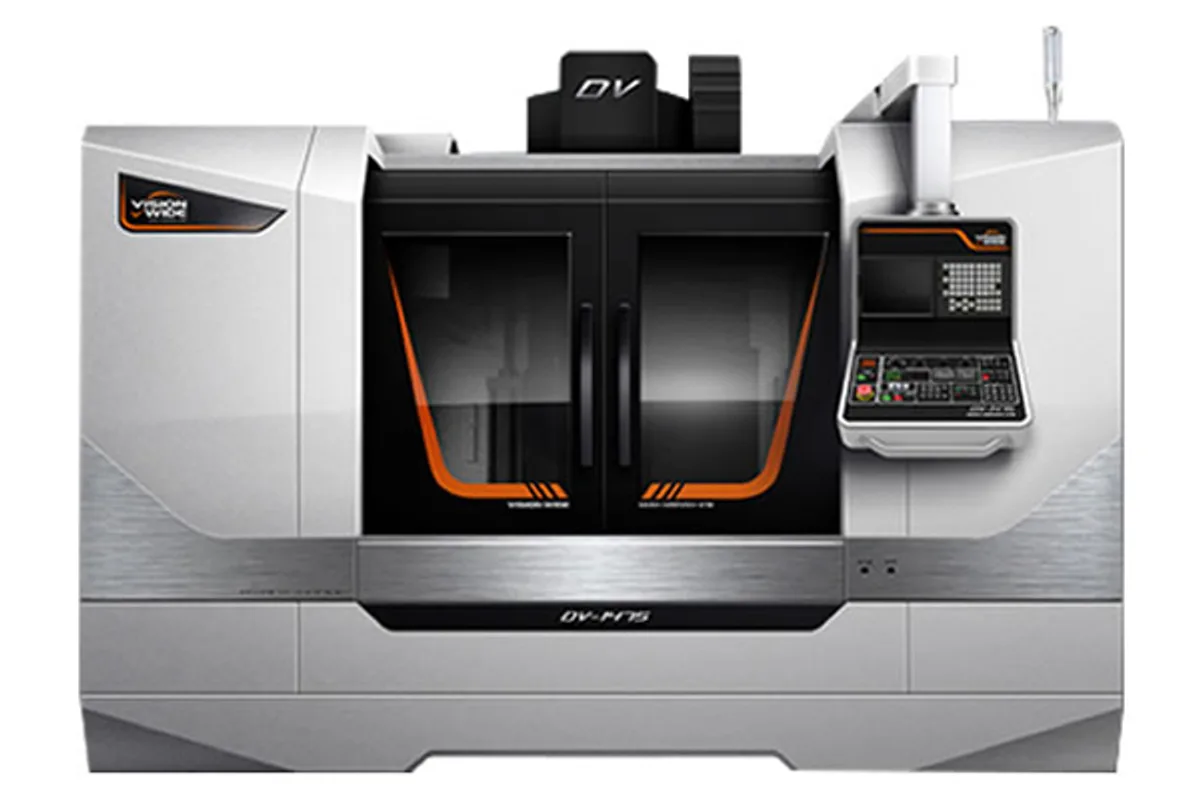

Vision Wide DV-1475
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide DV-1475 cost?
Price estimate
We do not have a price for the Vision Wide DV-1475 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide DV-1475 is a heavy duty vertical machining center built around a #50 spindle. Its standard accessory list names a 6,000 rpm #50 gear driven spindle, and the table rates the motor at 15 / 18 kW (20.1 / 24.1 hp), continuous and short-time.
Travels are 1,400 mm (55.1 in) in X, 750 mm (29.5 in) in Y and 700 mm (27.6 in) in Z. The Y stroke matches the width of the 1,600×750 mm (63.0×29.5 in) table, so the whole depth of the table can be cut. Load capacity is 1,500 kg (3,307 lb).
This machine gives up speed for cutting force. Rapids are 15 / 15 / 12 m/min. The SV-1480, the high speed model of about the same size, lists 30 / 30 / 24 m/min, a 10,000 rpm standard speed and 11 / 15 kW (14.8 / 20.1 hp). Vision Wide describes the DV Z axis as high torque, where the SV description speaks of a non-counter balance drive.
The DV is not locked to the gear spindle. The optional list includes an 8,000rpm #50 belt driven spindle and 10,000/12,000/15,000rpm ♯40 direct driven spindles. The power row also prints 11 / 15 kW (14.8 / 20.1 hp) in brackets without a label; it is reasonable to ask whether that rating goes with one of those optional spindles.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,400 mm (55.1 in) |
| Y Axis Travel | 750 mm (29.5 in) |
| Z Axis Travel | 700 mm (27.6 in) |
| Table Size | 1,600×750 mm (63.0×29.5 in) |
| Max Table Load | 1,500 kg (3,307 lb) |
| Spindle Power Cont 30 Min | 15 / 18 kW (20.1 / 24.1 hp) （11 / 15 kW (14.8 / 20.1 hp)） |
| Cutting Feed Rate | 1-10 m/min |
| Rapid Traverse Xyz | 15 / 15 / 12 m/min |
| Tool Capacity | 24 / 32 pcs |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 6,000 rpm #50 gear driven spindle as standard
- 15 / 18 kW (20.1 / 24.1 hp) spindle motor rating
- 750 mm (29.5 in) of Y travel covers the full width of the 1,600×750 mm (63.0×29.5 in) table
- Optional 8,000rpm #50 belt driven and #40 direct driven spindles up to 15,000rpm
- 1,500 kg (3,307 lb) table load
Limitations
- Rapids of 15 / 15 / 12 m/min are half those of the SV-1480
- No spindle speed row in the specification table; speeds appear only in the accessory lists
- X travel of 1,400 mm (55.1 in) is shorter than the table
- Tool capacity is 24 / 32 pcs
Best For
Frequently Asked Questions
01
The standard accessory list gives a 6,000 rpm #50 gear driven spindle. The specification table rates spindle motor power at 15 / 18 kW (20.1 / 24.1 hp), with 11 / 15 kW (14.8 / 20.1 hp) in brackets. Belt driven #50 and direct driven #40 spindles are optional.
02
1,400 mm (55.1 in) in X, 750 mm (29.5 in) in Y and 700 mm (27.6 in) in Z, with a 1,600×750 mm (63.0×29.5 in) table that takes 1,500 kg (3,307 lb).
03
The DV-1475 is the heavy duty machine: 15 / 18 kW (20.1 / 24.1 hp), a standard #50 gear driven spindle and 15 / 15 / 12 m/min rapids. The SV-1480 lists 11 / 15 kW (14.8 / 20.1 hp), a 10,000 rpm standard speed, 30 / 30 / 24 m/min rapids and 800 mm (31.5 in) of Y travel.
04
The FANUC 0iMF PLUS controller is on the standard accessory list. The optional list names a MISTUBISHI M70 controller / HEIDENHAIN iTNC 620 controller, written here as the maker prints it.
