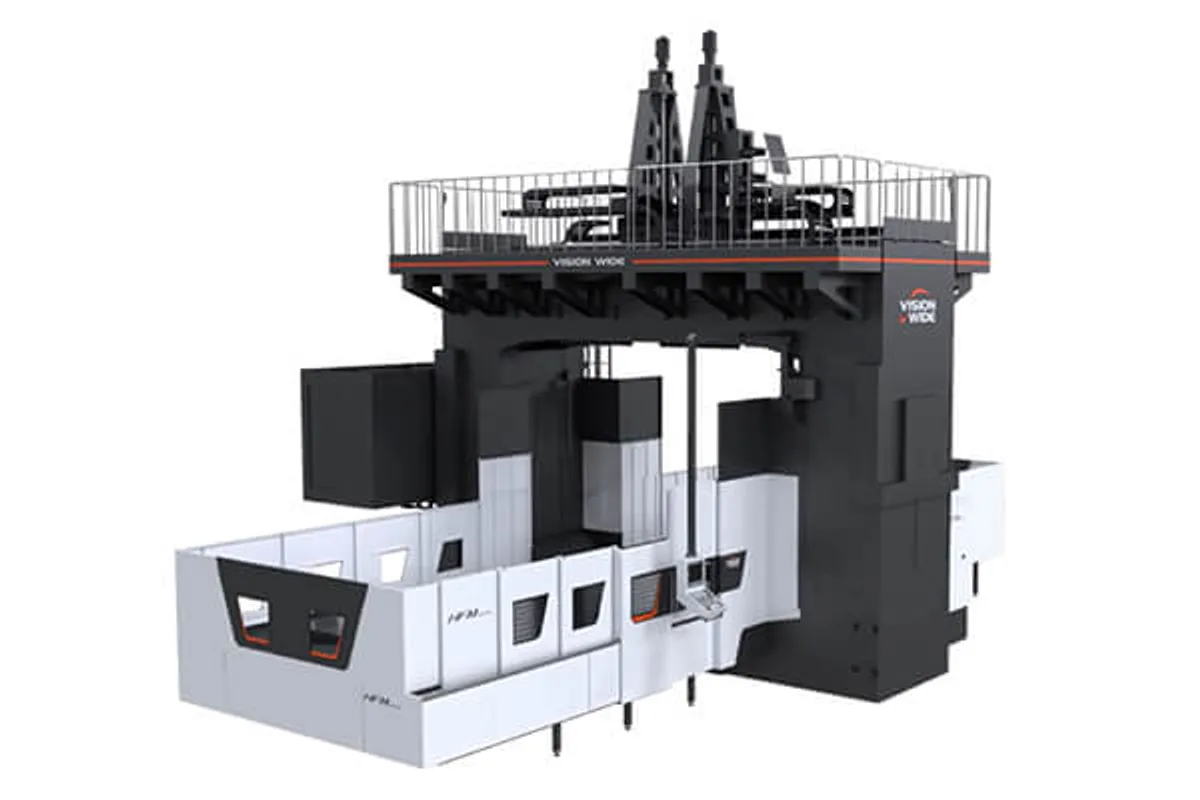

Vision Wide HF-10047M
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
max table load
spindle power cont 30 min
How much does the Vision Wide HF-10047M cost?
Price estimate
We do not have a price for the Vision Wide HF-10047M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
No five-face bridge machine in Vision Wide's HF and HFM tables is larger than the HF-10047M. It has 10,100 mm (397.6 in) of X travel, 4,700 mm (185.0 in) of Y and 1,500 mm (59.1 in) of Z, with a 10,000×3,500 mm (393.7×137.8 in) table and a 36,000 kg (79,365 lb) load rating.
A purchase of this kind is specified, not picked from a list, and the published page leaves a good deal to settle. The specification table has ten rows. It gives no tool magazine capacity; the accessory list names only an optional vertical type tool magazine of 40tools. It gives no positioning accuracy. And the accessory lists show the same controller under both standard and optional headings, so the base control is not clear from the page.
What is clear is the design intent. Vision Wide describes a box-in-box crossbeam, a head whose centre of gravity sits on the structure's centreline, hydrostatic transmission in the head, and a spindle torque output of 1,500~2,000Nm.
Standard spindle power is 22/26 kW (29.5/34.9 hp) with a 2-step gear spindle at 4,000rpm. Rapid traverse is 15/15/12 m/min and cutting feed 1~7,000 mm/min. Z axis linear scale feedback is included.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 10,100 mm (397.6 in) |
| Y Axis Travel | 4,700 mm (185.0 in) |
| Z Axis Travel | 1,500 mm (59.1 in) |
| Table Size | 10,000×3,500 mm (393.7×137.8 in) |
| Max Table Load | 36,000 kg (79,365 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear | 4,000/6,000 rpm (Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram Direct Driven | 10,000 rpm (Opt.) |
| Cutting Feed Rate | 1~7,000 mm/min |
| Rapid Traverse Xyz Box Way | 15/15/12 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Largest envelope of the HFM series: 10,100 mm (397.6 in) by 4,700 mm (185.0 in) by 1,500 mm (59.1 in)
- 36,000 kg (79,365 lb) on a 10,000×3,500 mm (393.7×137.8 in) table
- Spindle torque output of 1,500~2,000Nm stated for the series
- Z axis linear scale feedback is standard
Limitations
- No tool magazine capacity in the specification table
- No positioning accuracy figure is published
- The base controller is not clear from the accessory lists
Best For
Frequently Asked Questions
01
Travels are 10,100 mm (397.6 in) in X, 4,700 mm (185.0 in) in Y and 1,500 mm (59.1 in) in Z. The table is 10,000×3,500 mm (393.7×137.8 in) and carries 36,000 kg (79,365 lb).
02
Tool magazine capacity, positioning accuracy, machine weight and footprint are not in the table. The accessory lists also place the controller under both standard and optional, so ask Vision Wide what the base machine includes.
03
The HF-10047M lists 1,500 mm (59.1 in) of Z travel and rapids of 15/15/12 m/min. The HF-10040 / HF-10047 has 920 mm of Z on its standard head and 8 m/min in X/Y. Table size and the 36,000 kg (79,365 lb) load are the same.
04
A 2-step gear type spindle at 4,000rpm is standard, on 22/26 kW (29.5/34.9 hp). Options are a 6,000rpm gear spindle, a 30/37 kW (40.2/49.6 hp) motor and a direct-driven spindle at 10,000 rpm.
