Chevalier UNi5X-400

Specs verified 2026-10-05 · chevalierusa.com Updated 2026-10-05

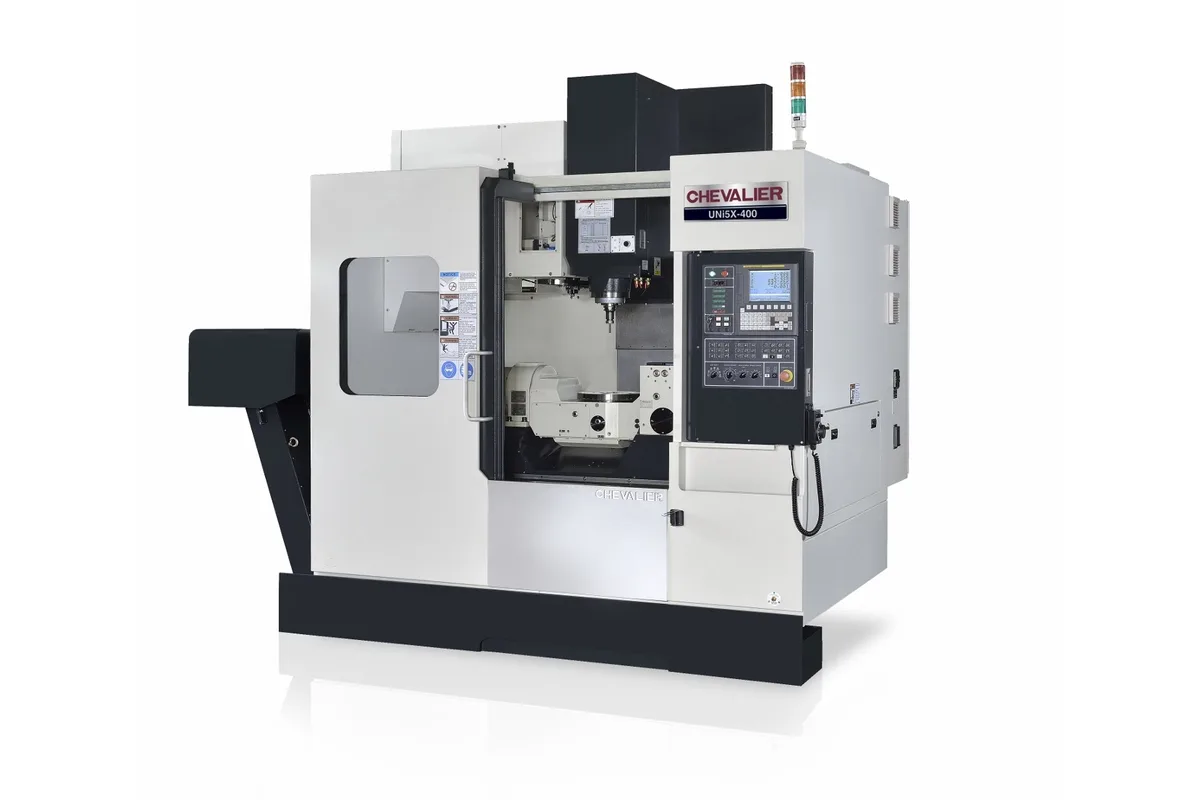

Image: chevalierusa.com, Chevalier Machinery

Key Specifications

Spindle Taper

CT40

Tool Capacity

30+1 arm type ATC

Table Size

Ø12.6 in (Ø320 mm)

Spindle Power

(F) 11/15 kW, (S) 11 kW, (H) 10 kW

Accuracy

0.0004 in (0.010 mm)

Repeatability

0.0003 in (0.007 mm)

How much does the Chevalier UNi5X-400 cost?

Price estimate

Uncertain

We do not have a price for the Chevalier UNi5X-400 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Chevalier UNi5X-400 is a compact five-axis vertical machining center with a tilting and rotating table Ø12.6 in (Ø320 mm) across. The trunnion carries 220 lb (100 kg), tilts through 150° (+30° / -120°) on the A axis and turns 360° on the C axis, so a part can be cut on five sides and at compound angles without being re-clamped.

Linear travels are 29.5 in (750 mm) in X, 24 in (610 mm) in Y and 21.7 in (550 mm) in Z, generous for a table of this size because the spindle has to reach around a tilted part. The spindle is a direct drive CT40 unit at 12,000 rpm, with 15,000 rpm listed as an option. Chevalier describes a large-diameter spindle carried on four P4 class angular-contact ball bearings.

The maker publishes accuracy figures, which few builders in this class do. Positioning accuracy is 0.0004 in (0.010 mm) and repeatability 0.0003 in (0.007 mm) on the linear axes. The A axis positions to 12 sec and repeats to 5 sec. The C axis row reads 20 (12) sec for positioning and 10 (4) sec for repeatability, the bracketed figures applying with the optional angle encoder.

The column is a one-piece inverted Y shape, the ball screws are pre-tensioned Class C3, and the servo motors couple directly to them. A 30+1 arm type changer serves the spindle. The standard control is a Fanuc 0i-MF, with a Fanuc 31i optional. The machine weighs 15,510 lb (7,050 kg) on a 96.5 in x 90 in footprint and stands 124 in high.

Full Specifications

Parameter	Value
CNC Control	Fanuc 0i-MF; Fanuc 31i - Optional
Table Size	Ø12.6 in (Ø320 mm)
Max Workpiece Dimensions	Ø15.7 in x H13.7 in (Ø400 x H350 mm)
Max Table Load	220 lb (100 kg)
X Axis Travel	29.5 in (750 mm)
Y Axis Travel	24 in (610 mm)
Z Axis Travel	21.7 in (550 mm)
Rapid Traverse Xyz	1,417 / 1,417 / 1,181 ipm (36,000 / 36,000 / 30,000 mm/min)
Cutting Feed Rate	394 / 394 / 394 ipm (10,000 / 10,000 / 10,000 mm/min)
Positioning Accuracy	0.0004 in (0.010 mm)
Repeatability	0.0003 in (0.007 mm)
A Axis Positioning Accuracy	12 sec
C Axis Positioning Accuracy	20 (12) sec
A Axis Repeatability	5 sec
C Axis Repeatability	10 (4) sec
A Axis Range	150° (+30° / -120°)
C Axis Range	360°
A C Axis Speed	25 rpm
Spindle Taper	CT40
Spindle Motor Power	(F) 11/15 kW, (S) 11 kW, (H) 10 kW
Spindle Speed	Direct drive 12,000 rpm (opt. 15,000 rpm)
Pull Stud	P40T-1
Distance Spindle Center to Column	27 in (685 mm)
Distance Spindle Nose to Table	0.8 in to 22.4 in (20-570 mm)
Tool Capacity	30+1 arm type ATC
Max Tool Diameter (full magazine)	3 in (76 mm)
Max Tool Diameter Without Adjacent Tool	5.9 in (150 mm)
Max Tool Length	11.8 in (300 mm)
Max Tool Weight	15.4 lb (7 kg)
Machine Dimensions	96.5 in x 90 in x 124 in (2,450 x 2,287 x 3,150 mm)
Machine Weight	15,510 lb (7,050 kg)

Specifications sourced from chevalierusa.com — verified 2026-10-05

Strengths & Limitations

Strengths

Tilting A axis of 150° (+30° / -120°) and a 360° C axis for five-sided and simultaneous work
Published accuracy figures: 0.0004 in (0.010 mm) positioning and 0.0003 in (0.007 mm) repeatability
Direct drive 12,000 rpm spindle with a 15,000 rpm option
29.5 in (750 mm) by 24 in (610 mm) by 21.7 in (550 mm) of linear travel around a small trunnion
Compact 96.5 in x 90 in footprint for a five-axis machine

Limitations

Table load is 220 lb (100 kg), fixture included
Workpiece envelope is limited to Ø15.7 in (Ø400 mm) on the trunnion
The better C axis accuracy figures apply only with the optional angle encoder
The Fanuc 31i control is an option; the standard control is the 0i-MF
Rotary axes turn at 25 rpm, slow for high-feed simultaneous contouring

Best For

Small five-sided parts machined in one clamping Medical, mould-insert and aerospace components under 220 lb (100 kg) Positional five-axis work that needs published accuracy figures Shops adding a first five-axis machine in limited floor space

Frequently Asked Questions

01 What size of part fits the Chevalier UNi5X-400?

The table is Ø12.6 in (Ø320 mm) and the workpiece dimensions are listed as Ø15.7 in x H13.7 in (Ø400 x H350 mm). Maximum table load is 220 lb (100 kg). Travels are 29.5 in (750 mm) in X, 24 in (610 mm) in Y and 21.7 in (550 mm) in Z.

02 What are the rotary axis ranges and speeds?

The A axis tilts through 150° (+30° / -120°) and the C axis rotates 360°. Both are listed at 25 rpm. The A axis positions to 12 sec and repeats to 5 sec; the C axis is listed at 20 (12) sec and 10 (4) sec, where the bracketed values are with the optional angle encoder.

03 Which spindle does the UNi5X-400 have?

A CT40 direct drive spindle running at 12,000 rpm, with 15,000 rpm as an option. The power row reads (F) 11/15 kW, (S) 11 kW, (H) 10 kW; the letters are not explained in the table, so ask which rating applies to the control you choose.

04 What tools can the changer hold?

The changer is a 30+1 arm type. Tools can be 3 in (76 mm) in diameter with adjacent pockets occupied or 5.9 in (150 mm) with them empty, up to 11.8 in (300 mm) long and 15.4 lb (7 kg).

05 Which CNC controls are offered?

The table lists a Fanuc 0i-MF as the control and a Fanuc 31i as optional. For simultaneous five-axis contouring, check with Chevalier which functions each control includes before settling on one.
