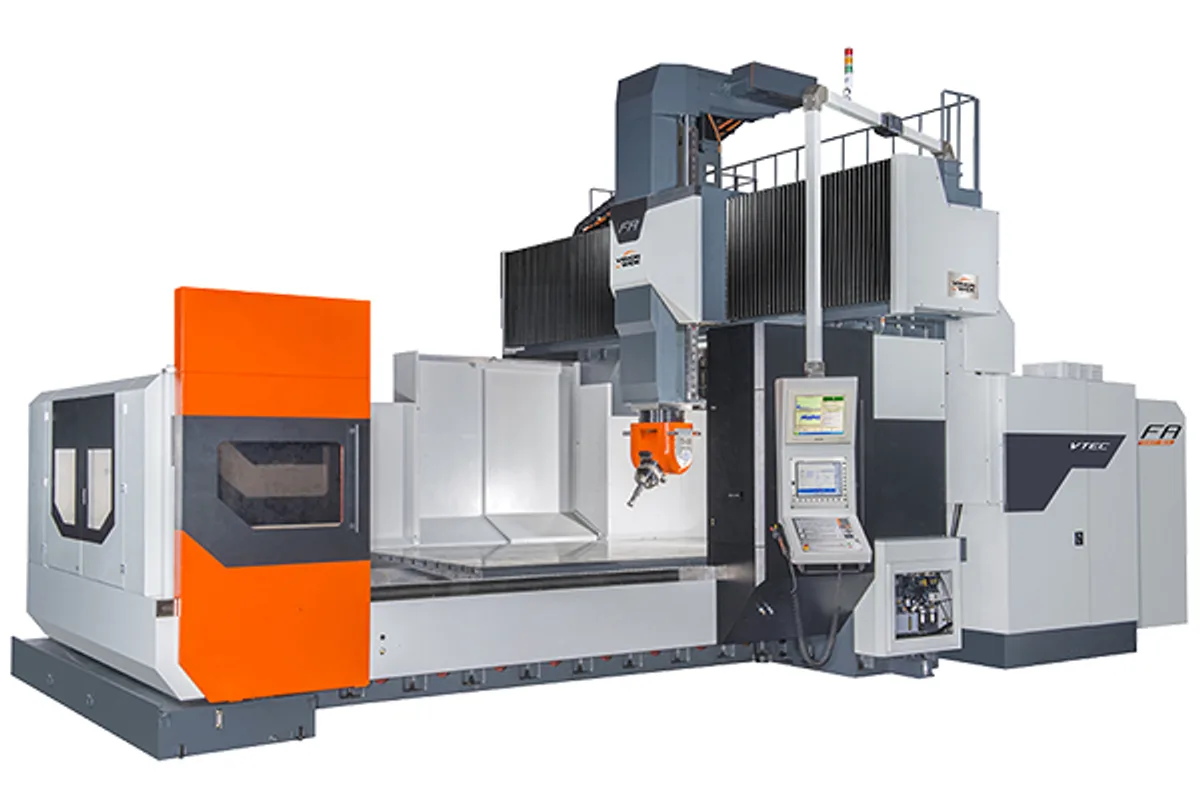

Vision Wide FA-4033
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Spindle Taper
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide FA-4033 cost?
Price estimate
We do not have a price for the Vision Wide FA-4033 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Sixteen tonnes on a five-axis machine: the Vision Wide FA-4033 has a 4,000×2,450 mm (157.5×96.5 in) table rated for 16,000 kg (35,273 lb), with 4,100 mm (161.4 in) of X travel and 3,300 mm (129.9 in) of Y.
An X axis ball screw supporter is part of the standard build. The accessory list makes it available for the FA-xx33 models and for X travels over 4 m, and this model meets both conditions. Supporting the screw along its length is what lets a long axis run at speed without the screw whipping; the X rapid here is 18 m/min.
The head and its safeguards are common to the series. A 2-axis head central control and monitoring protection system watches for spindle cutting vibration, spindle and motor overload and overload of the B/C rotating motors. It is there because a collision or an overload in a tilting head is expensive, and on a machine that runs long programs unattended the monitoring is the first line of defence.
Spindle figures are 12,000 rpm, 34 / 43 kW (45.6 / 57.7 hp) and 162 / 205 Nm (119 / 151 lb-ft) on HSK-A100. Port width is 2,700 mm (106.3 in). Z travel is 1,000 mm, with 1,200 mm optional.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,100 mm (161.4 in) |
| Y Axis Travel | 3,300 mm (129.9 in) |
| Z Axis Travel | 1,000 / 1,200 mm (39.4 / 47.2 in)(opt.) |
| Port Width | 2,700 mm (106.3 in) |
| Table Size | 4,000×2,450 mm (157.5×96.5 in) |
| Max Table Load | 16,000 kg (35,273 lb) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Power Cont 30 Min | 34 / 43 kW (45.6 / 57.7 hp) |
| Spindle Torque Cont 30 Min | 162 / 205 Nm (119 / 151 lb-ft) |
| Spindle Taper | HSK-A100 |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | 18 / 15 / 15 m/min |
| Positioning Accuracy Jis B6333 | ±0.005/300, mm (±0.00020/11.8 in) ±0.010 mm (±0.0004 in)/Full travel |
| Repeatability Jis B6333 | ±0.002 mm (±0.00008 in) |
| Tool Capacity Floor Standing Vertical Tool Change | 24/32 pcs(opt.)/40 pcs(opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 16,000 kg (35,273 lb) table load
- X axis ball screw supporter is standard on this model
- Head monitoring for vibration and for spindle and B/C motor overload
- 4,100 mm (161.4 in) by 3,300 mm (129.9 in) of X and Y travel
Limitations
- X rapid of 18 m/min, Y and Z of 15 m/min
- ±0.010 mm (±0.0004 in) full-travel positioning accuracy
- Standard changer holds 24 tools
Best For
Frequently Asked Questions
01
The standard 2-axis head central control and monitoring protection system covers spindle cutting vibration protection, spindle and motor overloading protection, B/C rotating motor overloading protection and software protection against spindle overload.
02
Yes. The X axis ball screw supporter is listed as standard for the FA-xx33 series and for X travels over 4 m. X travel on this model is 4,100 mm (161.4 in).
03
4,000×2,450 mm (157.5×96.5 in) and 16,000 kg (35,273 lb). The FA-4027, on the narrower frame, has a 4,000×1,800 mm (157.5×70.9 in) table for 12,000 kg (26,455 lb).
04
Rapid traverse is 18 / 15 / 15 m/min and cutting feed is 1-10,000 mm/min. The spindle runs to 12,000 rpm on an HSK-A100 taper.
