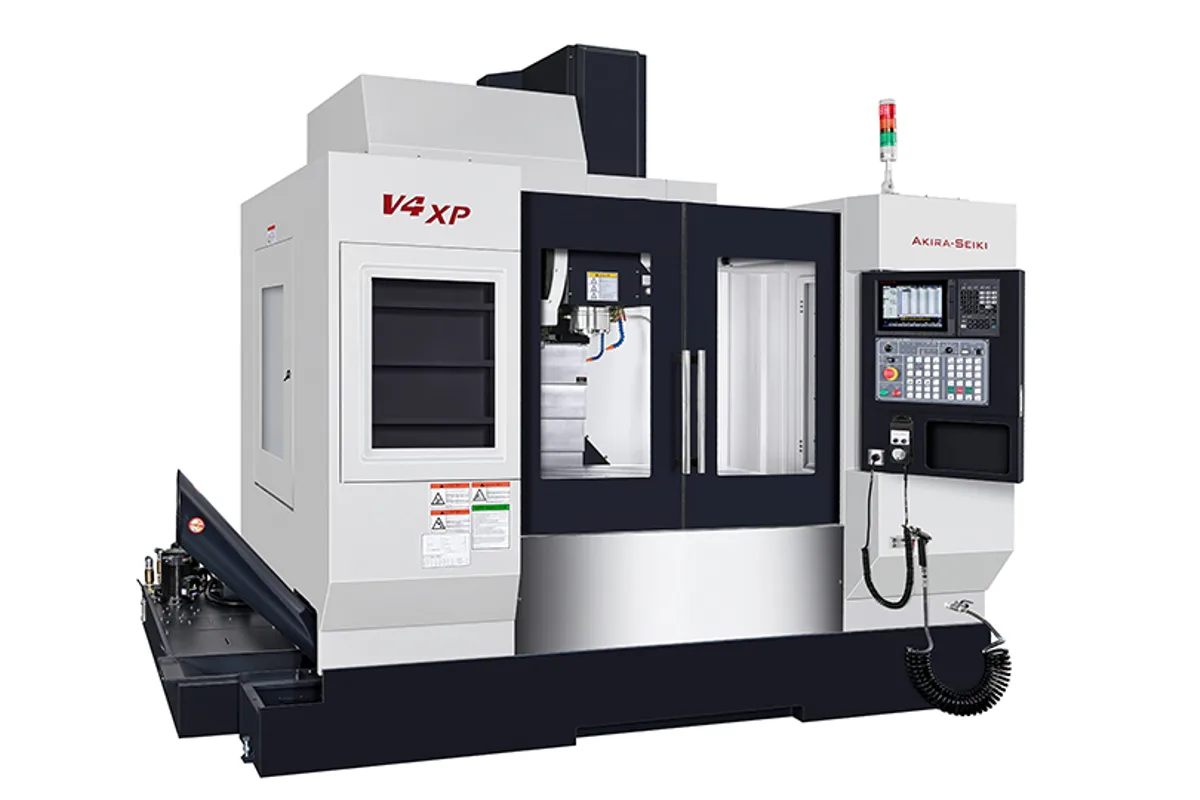

Akira Seiki V4XP
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki V4XP cost?
Price estimate
We do not have a price for the Akira Seiki V4XP that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Akira Seiki's V4XP is the one-metre machine of the V series, with 1,050 mm (41.3 in) of X travel and 560 mm (22 in) of Z above a 1,200 x 480 mm (47.2 x 19 in) table. One caution up front: the maker's page prints the Y travel of this model with millimetre and inch figures that do not agree, so that row is left out of the table here. Confirm Y with Akira Seiki before sizing a fixture.
The spindle is the series' 30 HP class unit. In the V version it is 30 HP (22.4 kW) peak at 10,000 rpm, in the XP version 35 HP (26.1 kW) at 12,000 rpm, with an 8,000 rpm spindle as an option. All are BT40.
A table this long is normally bought for multiple fixtures. Standard loading is 980 kg (2,160 lb) and maximum 1,176 kg (2,592 lb), spread over five 18 mm T-slots. The 28T magazine means one tool list can serve several different parts on the table at once, and each change takes 2.2 s.
Services are 30 kVA and 0.5 MPa (72.5 psi). Accuracy is listed as 0.01 mm (0.00039 in) positioning with ±0.003 mm (±0.00012 in) repeatability. The spindle centre stands 550 mm (21.7 in) from the column cover.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 (Fanuc G code compatible) |
| X Axis Travel | 1,050 mm (41.3 in) |
| Z Axis Travel | 560 mm (22 in) |
| Distance Spindle Nose to Table | 75~635 mm (3~25 in) |
| Spindle Center to Column Cover | 550 mm (21.7 in) |
| Table Size | 1,200 x 480 mm (47.2 x 19 in) |
| T-Slots | 18 mm x 80 mm pitch x 5 slots |
| Max Table Load | 1,176 kg (2,592 lb) |
| Standard Table Load | 980 kg (2,160 lb) |
| Spindle Motor Power | 30 HP (22.4 kW) (V); 35 HP (26.1 kW) (XP) |
| Max Spindle Speed | 10,000 rpm (V); 12,000 rpm (XP); 8,000 rpm (OPT) |
| Spindle Taper | BT40 |
| Positioning Accuracy | 0.01 mm (0.00039 in) |
| Repeatability | ±0.003 mm (±0.00012 in) |
| Tool Capacity | 28T |
| Max Tool Diameter (full magazine) | 65 mm (2.6 in) |
| Max Tool Diameter Without Adjacent Tools | 130 mm (5.1 in) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Tool Change Time | 2.2 s |
| Chip Disposal | Drawer / Chip Screw |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Power Requirement | 30 kVA |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,050 mm (41.3 in) of X travel under a 30 HP class spindle
- XP version: 35 HP (26.1 kW) peak and 12,000 rpm
- Table 1,200 x 480 mm (47.2 x 19 in), rated to 1,176 kg (2,592 lb) maximum
- 28T magazine with tools up to 250 mm (9.8 in) long
Limitations
- The maker's Y-travel row for this model is inconsistent between mm and inch and could not be used
- Coolant tank capacity is also printed with a typing error on the maker's page
- Tool weight limit is 7 kg (15 lb)
- Needs a 30 kVA electrical supply
Best For
Frequently Asked Questions
01
02
The V version is listed at 30 HP (22.4 kW) peak and 10,000 rpm, the XP version at 35 HP (26.1 kW) peak and 12,000 rpm, and there is an 8,000 rpm option. The taper is BT40 in every case.
03
The V4.5XP is the deeper machine: 1,150 mm (45.3 in) of X, 640 mm (25 in) of Y and 660 mm (26 in) of Z on a 1,300 x 600 mm (51.1 x 23.6 in) table rated to 1,560 kg (3,439 lb) maximum. Spindle options and the 28T magazine are common to both.
04
Up to 250 mm (9.8 in), with a maximum diameter of 65 mm (2.6 in), or 130 mm (5.1 in) when the neighbouring pockets are empty, and a maximum weight of 7 kg (15 lb). Z travel is 560 mm (22 in).
