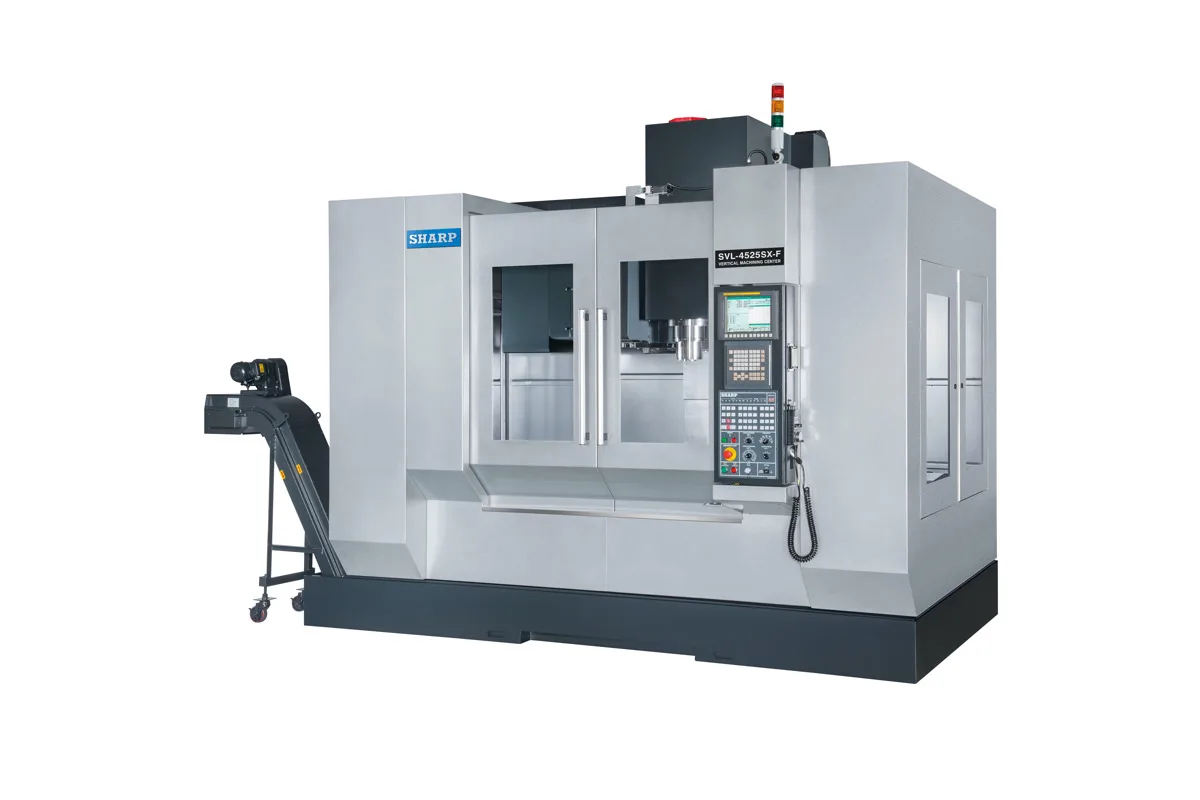

Sharp SVL-4528SX-F
Image: sharp-industries.com, Sharp
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Sharp SVL-4528SX-F cost?
Price estimate
We do not have a price for the Sharp SVL-4528SX-F that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 28 in (711 mm) of Y travel, the Sharp SVL-4528SX-F is the deeper of the two SVL-4500 vertical machining centers. X is 45.3 in (1150 mm) and Z is 20.1 in (510 mm).
There is a catch in the table Sharp publishes. The worktable is listed at 51.2 x 25 in (1300 x 635 mm) for this model, the same as for the SVL-4525SX-F, so the Y axis travels further than the table is deep. That extra stroke is useful for reaching past the edge of a part with a large cutter, for probing, or for fixtures that overhang the table, but it does not add clamping surface. Ask Sharp to confirm the table size if the job depends on it.
The saddle rides on linear roller ways with two additional box ways under the Y axis, an arrangement Sharp uses on this series to support the table across its full cross travel. Load capacity is 1760 lb (800 kg). Feedback comes from Mitutoyo linear scales on three axes, supplied as standard.
At the spindle the figures are 15,000 rpm, a CAT-40 Big plus taper and a 20/25 hp (15/18.5 kW) direct-drive motor. Thirty tools sit in a side-mount magazine; each may weigh 15.4 lb (7 kg) and measure 11.8 in (300 mm) long. Rapids are 1417 ipm (36,000 mm/min) on X, Y and Z. The control is a FANUC Oi-MF with a 10.4" LCD color screen.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 45.3 in (1150 mm) |
| Y Axis Travel | 28 in (711 mm) |
| Z Axis Travel | 20.1 in (510 mm) |
| Distance Spindle Nose to Table | 5.1-25.2 in (130-640 mm) |
| Distance Spindle Center to Column | 31.5 in (800 mm) |
| Table Size | 51.2 x 25 in (1300 x 635 mm) |
| Max Table Load | 1760 lb (800 kg) |
| T-Slots | 5 x 0.7 x 3.9 in (5 x 18 x 100 mm) |
| Spindle Taper | CAT-40, Big plus |
| Max Spindle Speed | 15,000 (ceramic bearing) |
| Spindle Motor Power | 20/25 hp (15/18.5 kW) |
| Spindle Drive | Direct Drive |
| Tool Changer Type | Side Mount |
| Tool Capacity | 30 |
| Max Tool Diameter (full magazine) | 2.95 in (75 mm) |
| Max Tool Diameter Without Adjacent Tools | 5.9 in (150 mm) |
| Max Tool Length | 11.8 in (300 mm) |
| Max Tool Weight | 15.4 lb (7 kg) |
| Tool Change Time | 2 sec |
| Chip to Chip Time | 7 sec |
| Tool Selection | Random |
| Rapid Traverse Xyz | X/Y/Z 1417 ipm (36,000 mm/min) |
| Cutting Feed Rate | 0.04-1417 ipm (1-36,000 mm/min) |
| Axis Drive | Direct Drive |
| Positioning Accuracy | 0.0002 in (0.005 mm) |
| Repeatability | 0.00012 in (0.003 mm) |
| Ballscrew Diameter | 1.57 in (40 mm) |
| Coolant Tank Capacity | 52.8 gal (200 L) |
| Coolant Nozzles | 4 |
| Floor Space | W: 171.5 in (4356 mm) x 134.3 in (3410 mm) |
| Machine Weight | 18,260 lb (8300 kg) |
| Door Opening | 45.3 in (1150 mm) |
| Power Requirement | 220V / 3 Phase / 35 kVA / 60 Hz |
| Air Requirement | 6 CFM at 88 psi |
Specifications sourced from sharp-industries.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 28 in (711 mm) of Y travel with 45.3 in (1150 mm) of X
- Rapid traverse of 1417 ipm (36,000 mm/min) on all three linear axes
- 30-tool side-mount changer taking tools up to 11.8 in (300 mm) long
- Standard FANUC Oi-MF with high speed AICC, 200 blocks look ahead and rigid tapping
- Flat type chip conveyor is a standard accessory
Limitations
- The listed table is 25 in (635 mm) deep, less than the 28 in (711 mm) Y travel
- Z travel of 20.1 in (510 mm) is short for a machine of this X and Y
- At 18,260 lb (8300 kg) it needs a proper foundation and rigging plan
- 2 M memory, Nano smoothing and the FANUC 2 G Data server are extra-cost options
Best For
Frequently Asked Questions
01
28 in (711 mm). That is the one row in Sharp's specification table that separates it from the SVL-4525SX-F, which has 25 in (635 mm). Both are listed with a 51.2 x 25 in (1300 x 635 mm) table.
02
Sharp describes 2 high quality linear roller ways on X/Y/Z axis travel & 2 extra box ways on Y axis travel. The ball screws on X, Y and Z are 1.57 in (40 mm) in diameter, each a double-nut screw centered between the guide ways and, per Sharp, pretensioned and anchored at both ends.
03
2 sec tool to tool and 7 sec chip to chip, with random tool selection from a 30-tool side-mount magazine. Maximum tool diameter is 2.95 in (75 mm), or 5.9 in (150 mm) without an adjacent tool.
04
A 52.8 gal (200 L) tank with 4 coolant nozzles and a flat type chip conveyor. CTS prepped (70 bar) is a standard accessory, which means the spindle is prepared for through-tool coolant; Sharp's list for this series does not show the pump among the standard items, so ask what completes the system.
