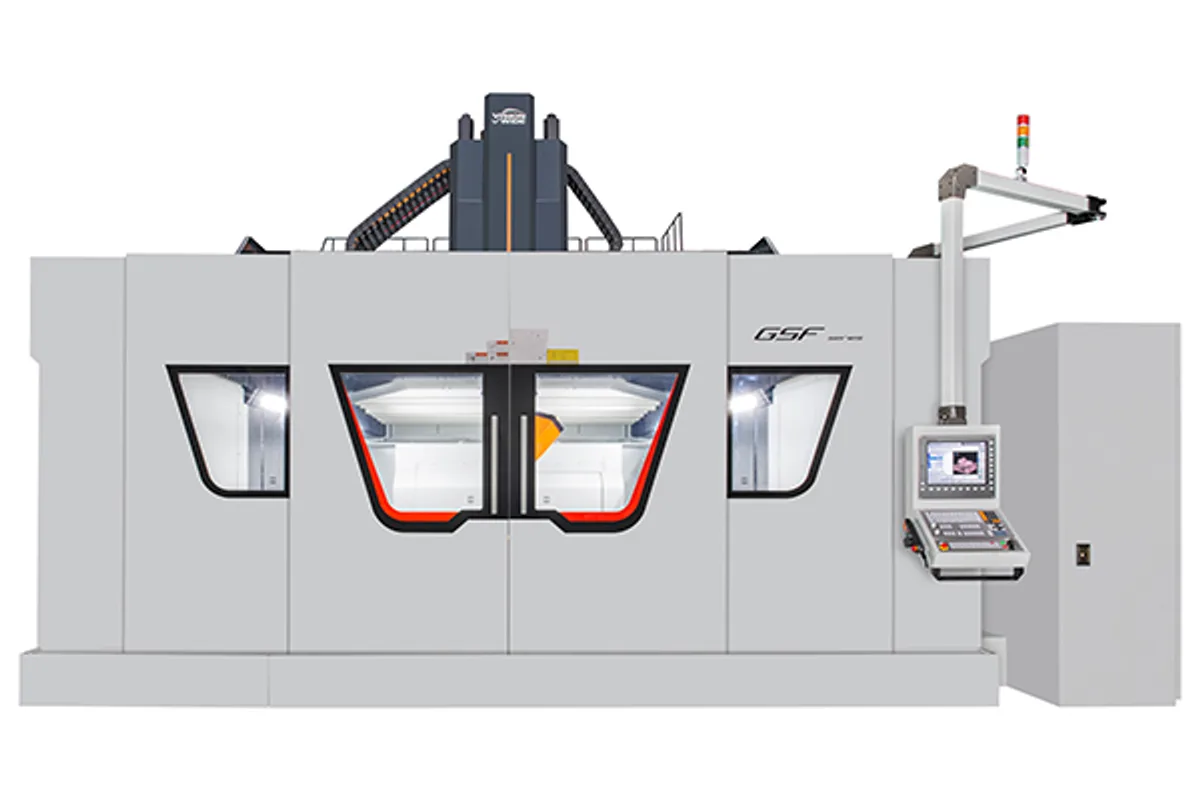

Vision Wide GSF-4032
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide GSF-4032 cost?
Price estimate
We do not have a price for the Vision Wide GSF-4032 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A fixed table of 4,000 x 3,200 mm (157.5 x 126.0 in), rated 3,000 kg/m2, sits under the five-axis gantry of the Vision Wide GSF-4032. X travel is 4,000 mm (157.5 in) and Y travel 3,200 mm (126.0 in).
The load figure deserves a second reading. It is a pressure, the weight the table accepts on each square metre, and since the table is part of the machine base it has no bearing on axis performance. A heavy steel die and a light layup tool are cut with the same acceleration. For a shop that machines both, that consistency is one of the practical arguments for a gantry.
What the figure does not tell you is the limit for a concentrated load, such as a tall part standing on a small footprint. That needs the maker's guidance.
The machine is aimed at five-axis mold and structure work at speed. The built-in spindle is direct-driven on B and C and turns 15,000 rpm with 50/65 kW (67.1/87.2 hp). The linear axes rapid at 32 m/min in X and Y and 20 m/min in Z, with a cutting feed range of 1-20,000 mm/min. X and Z use dual ballscrews, and the X screws are supported at this length. A HEIDENHAIN TNC640 is standard.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,000 mm (157.5 in) |
| Y Axis Travel | 3,200 mm (126.0 in) |
| Z Axis Travel | 1,000/1,200 mm (39.4/47.2 in) |
| Table Size | 4,000 x 3,200 mm (157.5 x 126.0 in) |
| Max Table Load | 3,000 kg/m2 |
| Spindle Power S1 S6 | 50/65 kW (67.1/87.2 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-20,000 mm/min |
| Rapid Traverse Xyz | XY:32 m/min / Z:20 m/min |
| Tool Capacity | 20/32/40/60 pcs |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 4,000 x 3,200 mm (157.5 x 126.0 in) fixed table
- Table load of 3,000 kg/m2 independent of axis dynamics
- Dual ballscrews on X and Z with supported X screws
- 50/65 kW (67.1/87.2 hp), 15,000 rpm five-axis head
Limitations
- No guidance on concentrated loads on the page
- Y axis runs on a single ballscrew over 3,200 mm (126.0 in)
- Z travel of 1,000/1,200 mm (39.4/47.2 in)
Best For
Frequently Asked Questions
01
It is the load the fixed table accepts per square metre. The table measures 4,000 x 3,200 mm (157.5 x 126.0 in). Vision Wide gives no total and no figure for concentrated loads.
02
4,000 mm (157.5 in) in X, 3,200 mm (126.0 in) in Y and 1,000/1,200 mm (39.4/47.2 in) in Z. The GSF-4027 has the same X with 2,700 mm (106.3 in) of Y.
03
The X and Z axes are driven by dual ballscrews and the Y axis by a single ballscrew. An X axis ball screw support device is standard for axes of 4m and above, and X has dual linear scales.
04
A HEIDENHAIN TNC640 controller is standard. A SIEMENS 840D SL controller is offered as an option, and no other control is named in the GSF accessory lists.
