Haas Automation 5-Axis Machining Centers

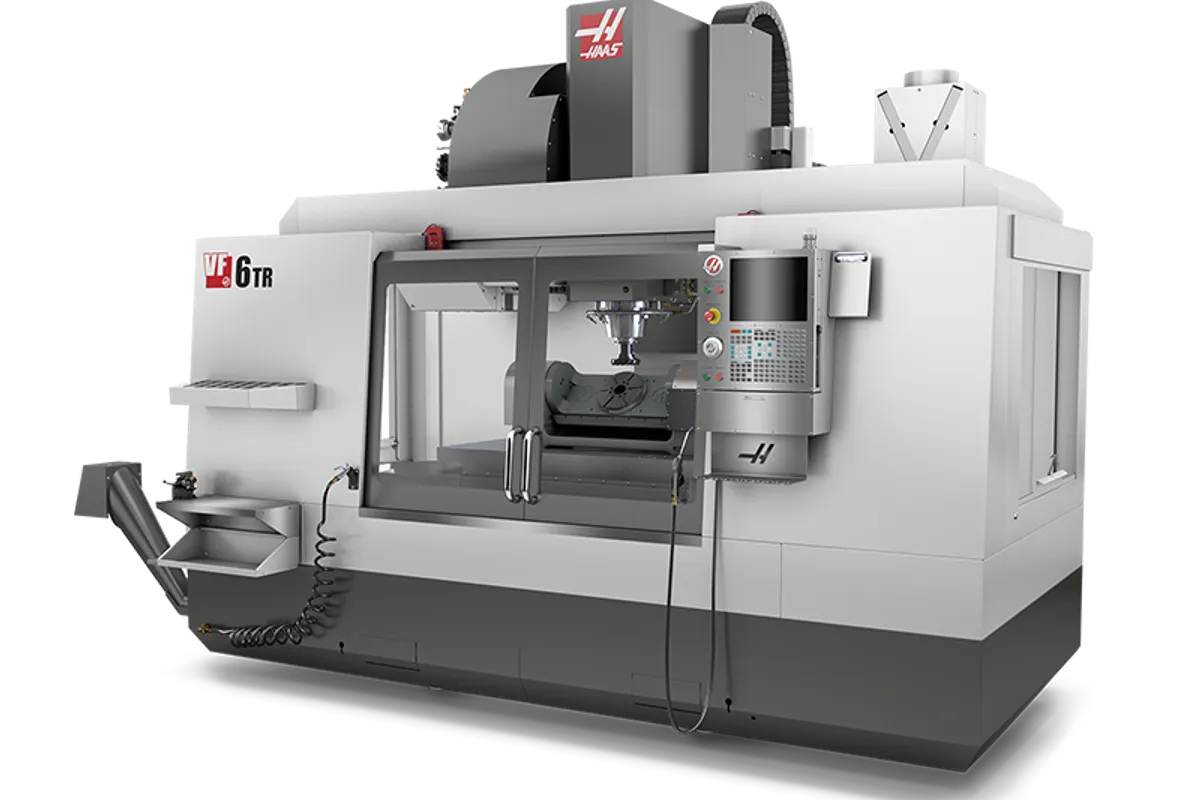

Haas VF-6/50TR

$210,000 - $275,000 Updated 2026-03-19

Key Specifications

X Travel

1,626 mm (64 in)

Y Travel

813 mm (32 in)

Z Travel

762 mm (30 in)

Max Spindle

7,500 RPM

Spindle Taper

CAT 50 / BT50

Tool Capacity

40+1 SMTC

Overview

The Haas VF-6/50TR is the heavy-duty 5-axis variant of the VF-6, combining the 50-taper spindle with an integrated dual-axis trunnion on the large-frame 1,626 x 813 x 762 mm (64 x 32 x 30 in) platform. This machine addresses a specific need: shops that require 5-axis access on large parts while maintaining the torque and rigidity of a 50-taper spindle for cutting steel and titanium.

The 29.8 kW (40 hp) geared-head spindle runs at 7,500 RPM with a two-speed gearbox option. The CAT 50 taper handles the large-diameter tools and heavy cuts that steel and titanium 5-axis work demands. This is a fundamentally different proposition from the 40-taper VF-6/40TR: the /50TR can push large face mills and boring bars into hard materials while maintaining 5-axis accessibility.

The trunnion adds a tilting A-axis with +120 to -35 degrees of rotation and a full 360-degree C-axis. The trunnion table diameter is approximately 311 mm (12.25 in) with a 91 kg (200 lb) load capacity. The 1,829 x 660 mm (72 x 26 in) main table with 2,041 kg (4,500 lb) capacity gives room for additional fixtures alongside the trunnion or full-table 3-axis work.

The 40+1 SMTC handles tools up to 406 mm (16 in) from gage line with up to 13.6 kg (30 lb) tool weight. Rapid traverse runs at 15.2 m/min (600 ipm). Machine weight is approximately 11,340 kg (25,000 lb). For aerospace and defense shops machining steel and titanium parts with localized 5-axis features on a large platform, the VF-6/50TR provides a cost-effective alternative to purpose-built heavy-duty 5-axis machines. Specs derived from Haas Automation published data for the VF-6, TR, and 50-taper platforms.

Full Specifications

Parameter	Value
X-Axis Travel	1,626 mm (64 in)
Y-Axis Travel	813 mm (32 in)
Z-Axis Travel	762 mm (30 in)
Spindle Nose To Table Max	864 mm (34 in)
Spindle Nose To Table Min	102 mm (4 in)
Max Spindle Speed	7,500 RPM
Spindle Taper	CAT 50 / BT50
Spindle Motor Power	30.0 hp
Spindle Torque Max	488 Nm (360 ft-lbf)
Spindle Drive	Geared Head
Spindle Cooling	Liquid Cooled
Trunnion Table Diameter	311 mm (12.25 in)
Trunnion Max Weight	91 kg (200 lb)
A Axis Travel	+120° / -35°
C Axis Travel	360° continuous
Trunnion Rapids	80 deg/sec
Tool Capacity	40+1 SMTC
Tool To Tool	4.20 s
Chip To Chip	6.30 s
Max Tool Diameter	4.0 in
Max Tool Length	16.00 in
Max Tool Weight	30.0 lb
Table Size	1,829 x 660 mm (72 x 26 in)
Table Load Max	2,041 kg (4,500 lb)
T Slots	5 slots, 125 mm (4.92 in) center distance
Max Cutting Feedrate	12.7 m/min (500 ipm)
Rapid Traverse X	15.2 m/min (600 ipm)
Rapid Traverse Y	15.2 m/min (600 ipm)
Rapid Traverse Z	15.2 m/min (600 ipm)
Max Thrust X	3400 lbf
Max Thrust Y	4100 lbf
Max Thrust Z	5600 lbf
Machine Weight	26460 lb
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Air Requirement	113 L/min @ 6.9 bar (4 scfm @ 100 psi)
Electrical	220 VAC 3-phase, 100 A (optional 440 VAC, 50 A)
Travels	S.A.E
X Axis	64.00 in
Y Axis	32.00 in
Z Axis	30.00 in
A Axis Tilt	± 120 °
B Axis Rotation	360 °
Spindle Nose To Platter	10.0- in
Spindle Nose To Table	5.0 in
Trunnion	S.A.E
Platter Diameter	12.20 in
Max Weight On Platter	500 lb
Max Part Swing	31 in
T Slot Width	0.626 in to 0.630 in
Number Of Std T Slots	5
Rapids On A	50 °/sec
Rapids On B	50 °/sec
Max Cutting A	33 °/sec
Max Cutting B	33 °/sec
Spindle	S.A.E
Max Rating	30.0 hp
Max Speed	7500 rpm
Max Torque	340.0 ft-lbf @ 700 rpm
Drive System	2-Speed Gearbox
Taper	CT or BT 50
Table	S.A.E
Length	64.0 in
Width	28.0 in
T Slot Center Distance	4.92 in
Max Weight On Table	4000 lb
Feedrates	S.A.E
Max Cutting	500 ipm
Rapids On X	600 ipm
Rapids On Y	600 ipm
Rapids On Z	600 ipm
Axis Motors	S.A.E
Tool Changer	S.A.E
Type	SMTC
Capacity	30+1
Max Tool Diameter Large	10.0 in
General	S.A.E
Air Requirements	S.A.E
Air Required	4 scfm @ 100 psi
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	195.0 in x 102.0 in x 136.0 in
Export Crate	195.0 in x 105.5 in x 141.5 in
Domestic Pallet W Ec Option	195 in x 102 in x 139 in
Export Crate W Ec Option	195 in x 106 in x 144 in
Weight W Ec Option	26800 lb

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

40 HP CAT 50 spindle with integrated trunnion brings heavy-duty 5-axis capability to large steel and titanium parts
1,626 mm (64 in) X-travel with 5-axis access is far more reach than any Haas UMC model offers
40+1 SMTC with 30 lb tool capacity and 16-inch length handles the large tooling that 50-taper 5-axis work demands
Factory-integrated trunnion eliminates alignment issues versus aftermarket rotary solutions on a /50 platform
Full 72 x 26-inch table with 4,500 lb capacity still available for heavy 3-axis work alongside the trunnion
Dramatically lower cost than purpose-built large 5-axis machines with comparable spindle power

Limitations

91 kg (200 lb) trunnion load limits 5-axis part weight despite the heavy-duty spindle capability
311 mm (12.25 in) trunnion platter restricts 5-axis part size relative to the large machine envelope
7,500 RPM spindle limits high-speed finishing; this machine is built for heavy cutting, not high-speed aluminum
50-taper tooling costs more and limits tooling sharing with 40-taper machines in the shop

Best For

Aerospace shops machining large steel and titanium structural parts with localized 5-axis features Defense manufacturers producing large components requiring both heavy roughing and multi-axis access Mold and die shops needing 5-axis undercut access on large steel mold bases with 50-taper cutting power Heavy equipment shops machining large steel parts with complex angled features Shops that need both large-format 50-taper capability and occasional 5-axis work without buying two machines

Frequently Asked Questions

01 What does a new Haas VF-6/50TR cost?

Base price starts around $210,000. With through-spindle coolant, probing, gearbox, and common options, expect $245,000-$275,000.

02 How does the VF-6/50TR compare to the VF-6/40TR?

The /50TR upgrades to a 40 HP, 7,500 RPM CAT 50 spindle versus the 30 HP, 8,100 RPM 40-taper on the /40TR. It adds significant machine weight and a 40+1 SMTC with larger tool capacity. Choose the /50TR for steel and titanium; the /40TR for aluminum-dominant mixed work.

03 Can the VF-6/50TR replace a dedicated 5-axis machine?

For production 5-axis work, no. The 91 kg trunnion capacity and 311 mm platter limit 5-axis part size. But for shops that primarily do large-format 3-axis steel work with occasional 5-axis needs, the VF-6/50TR eliminates the need for a second dedicated 5-axis machine.

04 Is simultaneous 5-axis supported?

Yes. The A and C axes support full simultaneous 5-axis contouring with RTCP compensation on the NGC control. Standard 5-axis CAM output from Mastercam, Fusion 360, and NX runs without modification.
