Matsuura MAM72-52V

$900,000 - $1,400,000 Updated 2026-03-16

Key Specifications

X Travel

730 mm (28.7 in)

Y Travel

620 mm (24.4 in)

Z Travel

620 mm (24.4 in)

Max Spindle

12,000 rpm (20,000 rpm optional)

Spindle Taper

HSK-A63

Tool Capacity

60 standard (expandable to 200+)

Overview

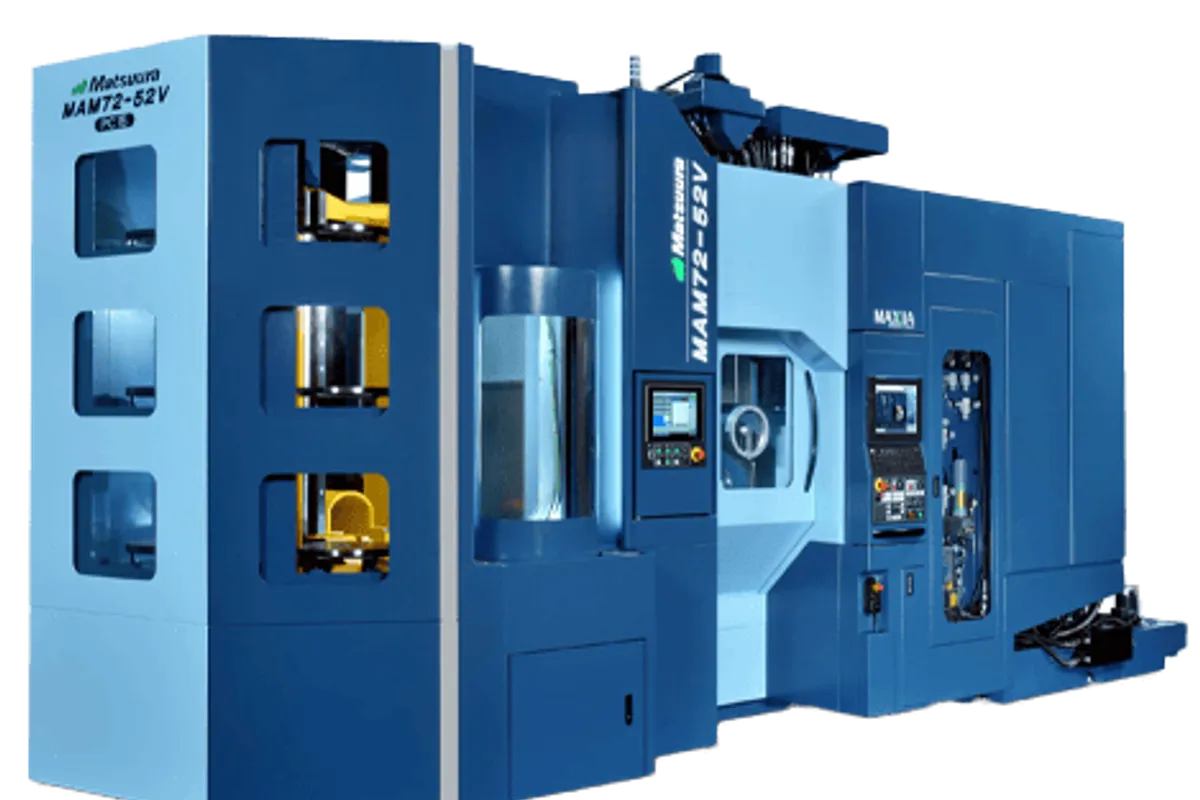

The Matsuura MAM72-52V is a large-capacity simultaneous 5-axis vertical machining center with integrated FMS (Flexible Manufacturing System) pallet management, engineered for unattended production of medium-to-large precision components up to 520 mm diameter. Stepping up from the MAM72-35V's 350 mm pallet, the 52V addresses a broader range of aerospace structural parts, large medical components, and industrial precision parts that exceed what the 35V's pallet size can accommodate.

The trunnion-type A/C axis configuration provides A-axis tilt from -120 to +30 degrees and continuous C-axis rotation on a 520 mm diameter pallet. This workpiece capacity covers the majority of aerospace structural fittings, large orthopedic implants, gearbox housings, and precision tooling components that define the upper range of 5-axis pallet machine applications. The standard spindle runs HSK-A63 tooling at 12,000 rpm with 30 kW of power — substantially higher than the 35V's 22 kW, reflecting the larger part sizes and increased material removal demands of 520 mm components.

Matsuura's proven pallet stocker integrates with the 52V at capacities up to 24 or more pallet stations, each holding a 520 mm pallet. The larger pallets can accommodate complex fixturing holding multiple parts or single large components with multiple operations. Pallet change time remains in the 30-second range, and the automatic tool management system — with magazine capacity expandable to 200+ — handles sister-tool substitution for extended unmanned runs. The G-Tech 31i control (FANUC 31i-B5 based) provides programming and CAMplete TruePath is standard for verification.

The MAM72-52V occupies a premium tier in the 5-axis FMS market, competing with the Hermle C 42 U with HS-flex automation, DMG MORI DMU 85 monoBLOCK with pallet pool, and Makino a61nx horizontal pallet systems. New machine pricing with full pallet stocker typically ranges from $900,000 to $1,400,000, reflecting the machine's scope and the integrated automation system. For shops running high-value aerospace or medical production where spindle utilization must exceed 85%, the economics of the 52V are well-established.

Full Specifications

Parameter	Value
Max Workpiece Diameter	Ø 520 mm (20.5 in)
X-Axis Travel	730 mm (28.7 in)
Y-Axis Travel	620 mm (24.4 in)
Z-Axis Travel	620 mm (24.4 in)
A Axis Range	-120° / +30°
C Axis Range	360° continuous
Max Spindle Speed	12,000 rpm (20,000 rpm optional)
Spindle Taper	HSK-A63
Spindle Motor Power	30 kW (40 hp)
Rapid Traverse Rate	50 m/min (1,969 ipm)
Pallet Size	Ø 520 mm (20.5 in)
Pallet Stocker Capacity	Up to 24 stations (configuration dependent)
Pallet Change Time	Approx. 30 sec
Tool Capacity	60 standard (expandable to 200+)
CNC Control	Matsuura G-Tech 31i (FANUC 31i-B5 based)
Machine Weight	Approx. 20,000 kg (44,100 lb)
Mx Series	MAM72 Series
Mx 330mx 330 Pc10mx 420 Pc10mx 520mx 520 Pc4mx 520tmx 850mx 850 Pc4	MAM72-35VMAM72-42VMAM72-52VMAM72-70VMAM72-100H

Specifications sourced from matsuurausa.com — verified 2026-03-28

Strengths & Limitations

Strengths

520 mm pallet diameter opens the full range of medium-to-large aerospace structural parts, large orthopedic components, and industrial precision parts to automated 5-axis production
30 kW HSK-A63 spindle provides substantial material removal capability for aluminum, titanium, and steel at the scale 520 mm parts demand
Integrated pallet stocker with up to 24 stations enables multi-day unattended production campaigns across different part setups without operator intervention
CAMplete TruePath standard inclusion provides crash-protection verification before programs reach the machine — essential for protecting expensive workpieces in unattended operation

Limitations

Capital investment of $900K–$1.4M is among the highest in standalone 5-axis machining centers — requires rigorous production planning and capacity utilization analysis
Machine and stocker footprint is substantial — facility planning for the MAM72-52V must account for the full cell envelope including pallet staging and operator access
24-station pallet capacity is lower than the 35V's 32-station maximum, reflecting the larger pallet size — shops requiring maximum pallet count should evaluate the 35V for smaller parts

Best For

Aerospace tier-1 suppliers machining medium-to-large structural components — rib sections, bulkhead fittings, actuator housings, and large brackets — in aluminum and titanium with 5-axis access Medical device manufacturers producing large implant components — acetabular cups, large tibial trays, spinal systems — requiring 5-axis machining at production volumes Defense and aerospace MRO facilities machining complex replacement components across diverse part families where FMS flexibility delivers value versus dedicated transfer lines Precision tooling and mold manufacturers running large cavity inserts and complex electrode forms that require 5-axis access and benefit from pallet-automated multi-setup production

Frequently Asked Questions

01 What is the workpiece size advantage of the MAM72-52V over the MAM72-35V?

The 52V handles workpieces up to 520 mm diameter versus 350 mm on the 35V — a 49% increase in diameter that translates to roughly 2.2x more work area on the pallet. This size jump opens up a wide range of aerospace structural parts, large industrial components, and bigger medical implants that simply don't fit on the 35V's 350 mm pallet. If your parts exceed approximately 300 mm in any dimension, the 52V is the appropriate choice in the MAM72 family.

02 How does the MAM72-52V's pallet system handle different part families simultaneously?

Each of the 24 pallet stations holds an independently fixtured pallet. Different pallets can hold completely different part families — for example, a shop might run titanium aerospace brackets on pallets 1–8, aluminum housings on pallets 9–16, and stainless medical components on pallets 17–24. Matsuura's schedule management system sequences the pallets and coordinates tool availability, cutting fluid concentration, and spindle speed programs for each different part. This is the FMS advantage: high-mix production in a single automated cell.

03 Is the MAM72-52V competitive with a horizontal machining center for high-volume production?

For high-mix, medium-volume production requiring full 5-axis capability, the MAM72-52V is often superior to a horizontal machining center. For very high-volume production of a limited part family, a 4-axis HMC with pallet automation may offer faster cycle times and lower cost-per-part. The MAM72-52V's advantage is flexibility — running dozens of different setups unattended while maintaining the 5-axis capability that HMCs lack for complex geometries.

04 What spindle options are available for the MAM72-52V?

The standard HSK-A63 spindle runs at 12,000 rpm with 30 kW — ideal for aluminum and titanium at medium-to-heavy cutting parameters. A 20,000 rpm high-speed spindle option is available for shops primarily machining aluminum or running high-speed finishing strategies. The 30 kW power rating is the same across both spindle options, maintaining material removal capability regardless of speed range.

05 How does the MAM72-52V compare to a DMG MORI DMU 85 monoBLOCK with pallet pool?

The DMU 85 monoBLOCK with PH 150 pallet pool is the most direct Western competitor. The DMG MORI offers a broader range of spindle options and benefits from DMG MORI's extensive global service network. The MAM72-52V's pallet stocker typically offers more pallet positions in its standard configuration and Matsuura's decades of FMS-specific engineering focus. Pricing is comparable. Shops standardized on FANUC controls often find the Matsuura's G-Tech 31i control environment familiar.
