Vision Wide ASM-1212

Q: How much does the Vision Wide ASM-1212 cost?

The price estimate for the Vision Wide ASM-1212 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-asm-1212#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

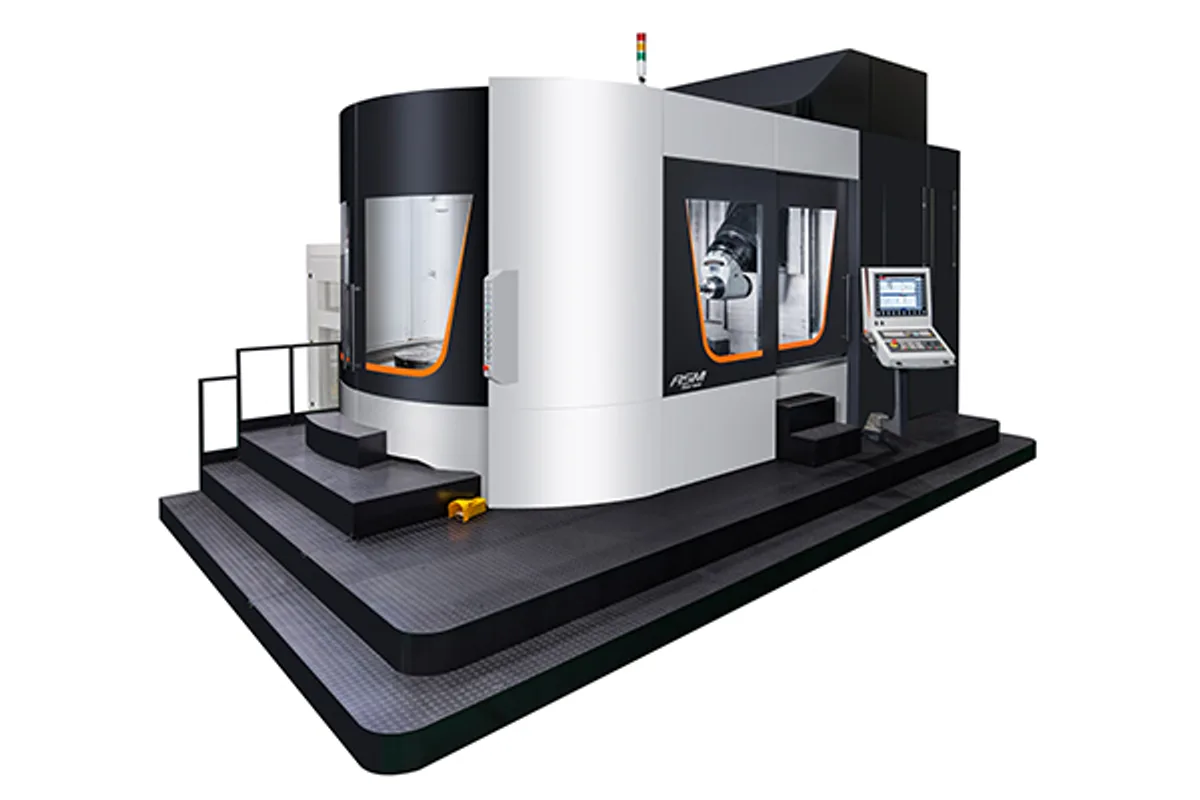

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

10,000 rpm

x axis travel

1,250 mm (49.2 in)

y axis travel

1,260 mm (49.6 in)

z axis travel

1,050 mm (41.3 in)

table diameter

Ø1,200 mm (Ø47.2 in)

max table load central area

2,000 kg (4,409 lb)

How much does the Vision Wide ASM-1212 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide ASM-1212 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A Ø1,200 mm (Ø47.2 in) table is what the Vision Wide ASM-1212 adds over the smallest ASM, with X travel growing to 1,250 mm (49.2 in). Y and Z stay at 1,260 mm (49.6 in) and 1,050 mm (41.3 in).

Load does not follow the diameter. The table still carries 2,000 kg (4,409 lb) in the central area, the same as the ASM-1012 with its Ø1,000 mm (Ø39.4 in) table. This is therefore the size for parts that are larger in diameter but not heavier: thin-walled casings, rings, aluminum housings, tire mold segments. A dense steel part that fills the table may exceed the rating, and the wording "central area" means an off-centre load is allowed less still.

The head is watched and corrected as standard. A 45° universal head central monitoring protection system guards against overload of the B/C axis rotating motors and of the spindle and its motor, and the head's rotation error is corrected through its mechanism chain. Spindle thermal compensation is given as 0.02 mm.

Speeds match the rest of the line: 40 / 40 / 40 m/min rapid, 24 / 24 / 24 m/min cutting feed, 10,000 rpm. An ASM-1212 FD is listed with the same table figures.

Full Specifications

Parameter	Value
X Axis Travel	1,250 mm (49.2 in)
Y Axis Travel	1,260 mm (49.6 in)
Z Axis Travel	1,050 mm (41.3 in)
Table Diameter	Ø1,200 mm (Ø47.2 in)
Max Table Load Central Area	2,000 kg (4,409 lb)
Max Spindle Speed	10,000 rpm
Cutting Feed Rate	24 / 24 / 24 m/min
Rapid Traverse Xyz	40 / 40 / 40 m/min

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Ø1,200 mm (Ø47.2 in) table with 1,250 mm (49.2 in) of X travel
45° universal head monitoring protection and rotation error correction are standard
Spindle thermal compensation stated as 0.02 mm
40 / 40 / 40 m/min rapid traverse

Limitations

Table load of 2,000 kg (4,409 lb) is no higher than on the ASM-1012
The load rating applies to the central area of the table
No published difference from the ASM-1212 FD

Best For

Thin-walled casings and rings up to Ø1,200 mm (Ø47.2 in) Aluminum housings and tire mold segments Light, large-diameter five-axis parts

Frequently Asked Questions

01 How much can the Vision Wide ASM-1212 table carry?

2,000 kg (4,409 lb) in the central area, on a Ø1,200 mm (Ø47.2 in) table. The larger ASM-1612 carries 3,000 kg (6,614 lb) on a Ø1,500 mm (Ø59.1 in) table.

02 What are the travels of the ASM-1212?

1,250 mm (49.2 in) in X, 1,260 mm (49.6 in) in Y and 1,050 mm (41.3 in) in Z. Rapid traverse is 40 / 40 / 40 m/min on all three.

03 How is the ASM-1212 head protected?

The standard 45° universal head central monitoring protection system covers B/C axis rotating motor overloading protection, spindle and motor overloading protection and software protection against spindle overload. Rotation error mechanism chain correction is standard too.

04 Is the ASM-1212 FD a different machine?

The table gives the ASM-1212 FD the same figures as the ASM-1212 in every row, and the page does not describe what FD means. Confirm the difference with the maker.
