Okuma GENOS M460V-5AX

$200,000 - $280,000 Updated 2026-03-13

Key Specifications

X Travel

762 mm (30.0 in)

Y Travel

460 mm (18.1 in)

Z Travel

460 mm (18.1 in)

Max Spindle

min⁻¹

Spindle Taper

CAT 40 Big Plus

Tool Capacity

32 (arm-type ATC)

Overview

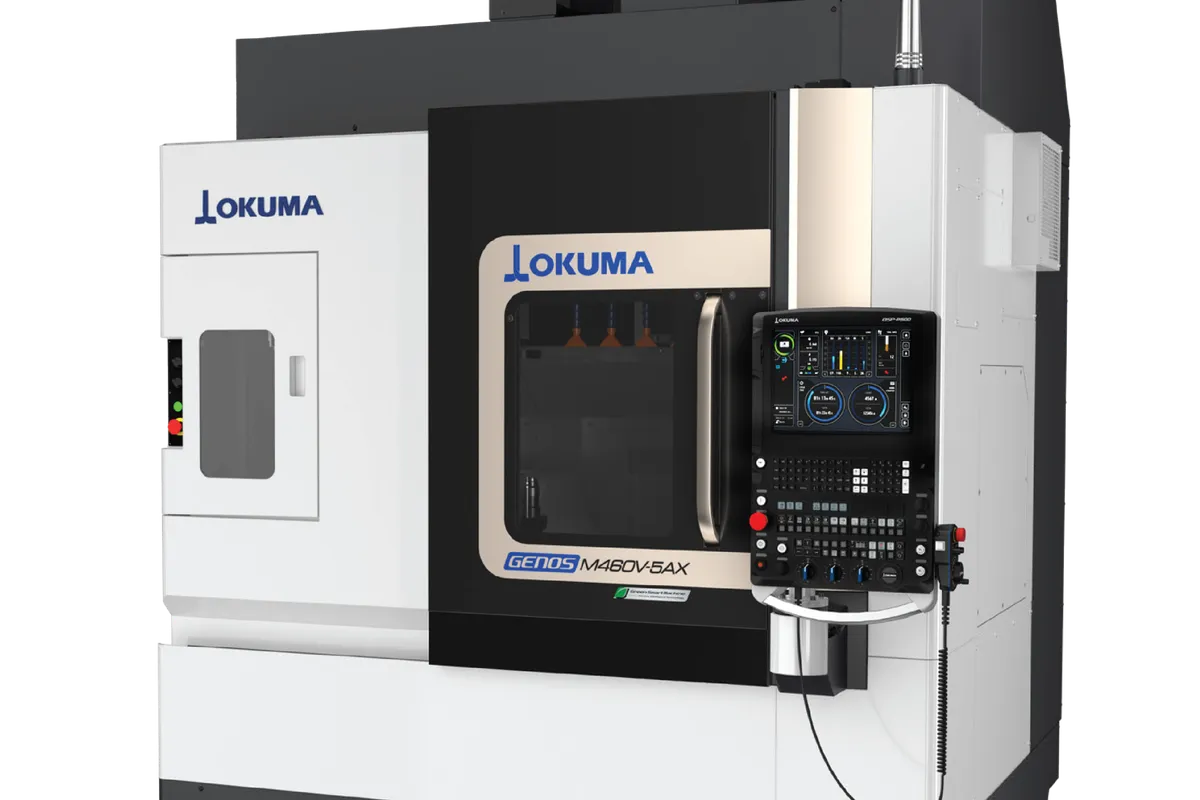

The Okuma GENOS M460V-5AX is Okuma's entry-level simultaneous 5-axis vertical machining center, designed as an accessible stepping stone for shops moving from 3-axis to 5-axis work. It takes the proven GENOS M460-V platform and adds a compact trunnion table with A-axis and C-axis rotation, creating a true 5-axis machine in one of the smallest footprints in the category.

Travel measures 762 x 460 x 460 mm (30.0 x 18.1 x 18.1 in) on the linear axes. The trunnion table is 400 mm (15.7 in) in diameter with A-axis tilt from +20 to -110 degrees and continuous 360-degree C-axis rotation. Maximum workpiece size is 500 mm diameter by 300 mm height, with a table load capacity of 200 kg (441 lb). That's adequate for most medical, dental, and small aerospace components.

The spindle runs at 15,000 RPM with 22 kW (30 hp) through a CAT 40 Big Plus taper. Big Plus provides simultaneous face and taper contact for improved rigidity at speed, which matters when you're running long tools at compound angles in 5-axis work. The 32-tool arm-type ATC keeps tool changes fast, and the overall machine weight of approximately 7,500 kg (16,535 lb) provides good vibration damping for a compact 5-axis platform.

Rapid traverse hits 40 m/min (1,575 ipm) on X and Y, 32 m/min (1,260 ipm) on Z. The machine runs on Okuma's OSP-P500 control with the option of Collision Avoidance System, which is particularly valuable for operators new to 5-axis programming where crash risk is inherently higher. Thermo-Friendly Concept comes standard, maintaining dimensional accuracy without warm-up cycles.

The GENOS M460V-5AX competes with machines like the Haas UMC-500, DMG Mori DMU 40, and Matsuura MX-330. It's positioned as a premium alternative to the Haas at a similar price point, with significantly heavier construction and Okuma's thermal compensation technology. New pricing typically starts around $200,000-$280,000 depending on options. The machine requires approximately 2,620 x 3,015 mm (103 x 119 in) of floor space, making it one of the more compact simultaneous 5-axis machines on the market.

Full Specifications

Parameter	Value
X-Axis Travel	762 mm (30.0 in)
Y-Axis Travel	460 mm (18.1 in)
Z-Axis Travel	460 mm (18.1 in)
A Axis Range	+20° to -110° (trunnion tilt)
C Axis Range	360° (continuous rotation)
Max Spindle Speed	min⁻¹
Spindle Taper	CAT 40 Big Plus
Spindle Motor Power	kW
Tool Capacity	32 (arm-type ATC)
Table Size	Ø 400
Max Workpiece Size	Ø 500 x 300 mm height
Max Table Load	200 kg (441 lb)
Rapid Traverse Xy	40 m/min (1,575 ipm)
Rapid Traverse Z	32 m/min (1,260 ipm)
Machine Weight	7,500 kg (16,535 lb)
Floor Space	2,620 x 3,015 mm (103 x 119 in)
CNC Control	Okuma OSP-P500
Max Machining Volume	X: 762, Y: 460, Z: 460
Rapid Traverse Rate	X-Y: 40 Z: 32
Okuma Global Repair Center	Charlotte, North Carolina
Inches	Metric
Spindle Speed	15,000
Spindle Motor Power	22/18.5
Magazine Capacity	48

Specifications sourced from okuma.com — verified 2026-03-28

Strengths & Limitations

Strengths

Compact footprint of 2,620 x 3,015 mm puts simultaneous 5-axis capability into shops with limited floor space, smaller than most competitors in the class
22 kW (30 hp) CAT 40 Big Plus spindle at 15,000 RPM delivers the same proven spindle as the GENOS M460-V, handling steel, titanium, and aluminum effectively
GENOS-series value positioning makes this one of the most affordable simultaneous 5-axis machines from a major Japanese builder
Thermo-Friendly Concept standard on all GENOS machines eliminates warm-up cycles and maintains tolerance through shift changes
7,500 kg machine weight provides significantly better vibration damping than lighter entry-level 5-axis machines like the Haas UMC-500
OSP-P500 control with optional Collision Avoidance System reduces crash risk for operators transitioning from 3-axis to 5-axis programming

Limitations

200 kg table load capacity limits workpiece weight compared to the MU-5000V's 500 kg, restricting heavy fixture and rotary table setups
400 mm trunnion table diameter constrains part size compared to the MU-5000V's 500 mm, limiting use for larger aerospace components
+20 to -110 degree A-axis range is narrower than some competitors offering full +90 to -120 degrees, potentially requiring additional setups for certain part geometries
CAT 40 only with no 50-taper option limits clamping force for heavy roughing applications in difficult materials
32-tool standard magazine may run short on complex 5-axis jobs requiring many tool lengths and types

Best For

Job shops adding their first 5-axis machine where the GENOS M460V-5AX's compact size and accessible price reduce the barrier to entry Medical device manufacturers producing implants, surgical instruments, and dental components that fit within the 500 mm work envelope Aerospace subcontractors machining small structural components, brackets, and fittings requiring simultaneous 5-axis contouring Shops already running Okuma GENOS 3-axis VMCs that want to add 5-axis capability with familiar OSP control and programming Educational institutions and training facilities where the compact size and Collision Avoidance System provide a safe 5-axis learning platform

Frequently Asked Questions

01 What does an Okuma GENOS M460V-5AX cost?

New pricing starts around $200,000 for a base configuration and runs to approximately $280,000 with options like Collision Avoidance System, probing, through-spindle coolant, and chip conveyor. This positions it above the Haas UMC-500 but below dedicated 5-axis platforms like the Okuma MU-5000V.

02 How does the GENOS M460V-5AX compare to the MU-5000V?

The MU-5000V is a significantly larger and more capable machine with 800 x 1,050 x 600 mm travels vs the GENOS's 762 x 460 x 460 mm. The MU-5000V has a 500 mm table, 500 kg load capacity, and double-column construction. The GENOS M460V-5AX costs roughly half as much and fits in a smaller space, making it ideal for shops that don't need the MU's capacity.

03 How does this compare to the Haas UMC-500?

Both target the entry-level 5-axis market, but the Okuma is a heavier, more rigid machine at 7,500 kg vs the Haas's approximately 5,900 kg. The Okuma's Thermo-Friendly Concept provides better thermal stability over long runs. The Haas costs less and has a wider dealer network in North America, but shops prioritizing precision and long-term accuracy tend to prefer the Okuma.

04 Can the GENOS M460V-5AX handle titanium?

Yes. The 22 kW spindle and relatively heavy machine mass for its class provide adequate rigidity for titanium cutting. The 15,000 RPM spindle speed is more than fast enough for titanium, where speeds are typically kept below 200 SFM. CAT 40 Big Plus taper provides improved tool holding rigidity for demanding cuts.

05 Is the GENOS M460V-5AX good for production work?

It's capable of production work within its size range. The 32-tool magazine, arm-type ATC for fast changes, and Thermo-Friendly Concept for thermal stability support production environments. For higher volumes, shops often pair it with a pallet changer or robotic loading system. Lights-out capability depends on the specific part and tooling requirements.
