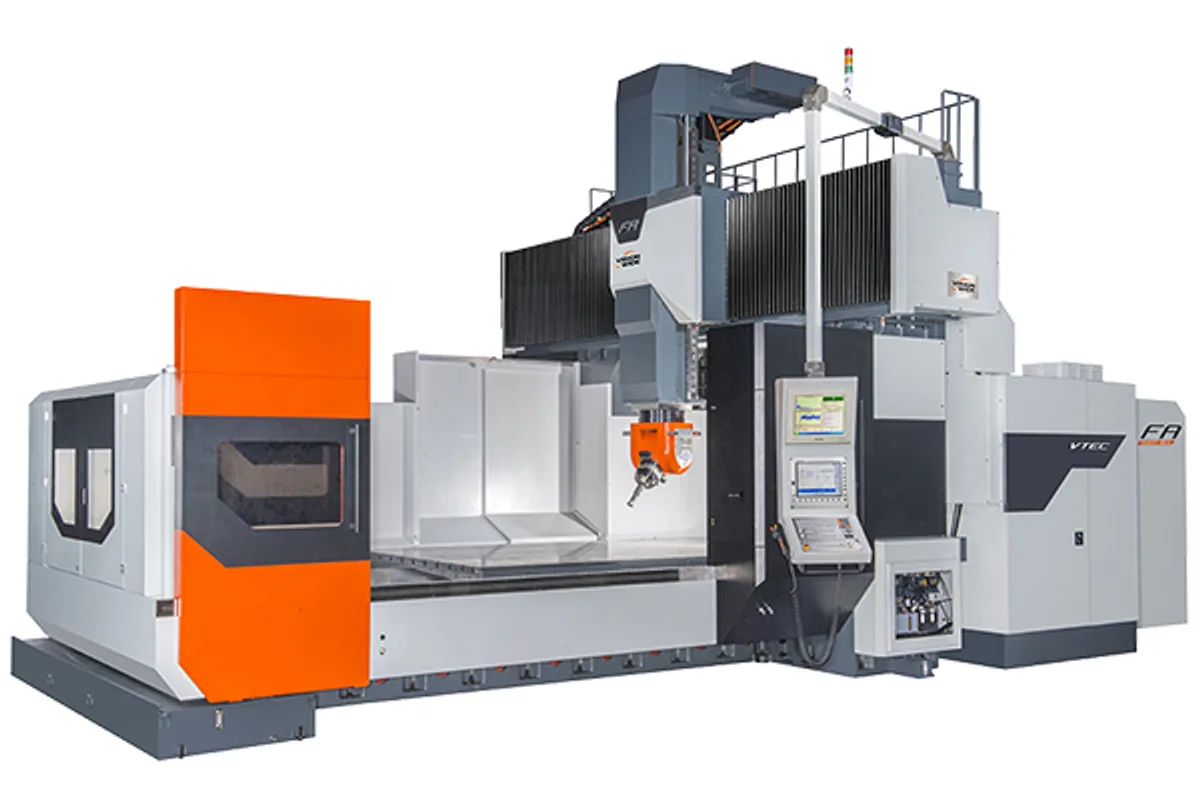

Vision Wide FA-6033
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Spindle Taper
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide FA-6033 cost?
Price estimate
We do not have a price for the Vision Wide FA-6033 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide FA-6033 and the NF-6026 have the same table: 6,000×2,450 mm (236.2×96.5 in), rated for 22,000 kg (48,501 lb), under 6,100 mm (240.2 in) of X travel. What sits above the table is different, and the difference is the choice between five-axis and five-face machining.
The NF-6026 changes attachment heads to reach the sides of a part and cuts with three axes at a time. Its standard spindle is a geared low-speed unit. The FA-6033 has a permanent two-axis head that moves during the cut, a 12,000 rpm HSK-A100 spindle with 162 / 205 Nm (119 / 151 lb-ft), a HEIDENHAIN TNC640 and linear scales on every axis as standard.
So the FA is the machine for contoured surfaces on big parts: large mold cavities, blade and vane forms, aerospace tooling. The NF is the machine for square faces, bores and heavy stock removal.
Y travel on the FA-6033 is 3,300 mm (129.9 in) and port width 2,700 mm (106.3 in). X rapid is 10 m/min, with 15 m/min in Y and Z. The floor-standing changer is listed at 24 tools, with 32 and 40 as options.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 6,100 mm (240.2 in) |
| Y Axis Travel | 3,300 mm (129.9 in) |
| Z Axis Travel | 1,000 / 1,200 mm (39.4 / 47.2 in)(opt.) |
| Port Width | 2,700 mm (106.3 in) |
| Table Size | 6,000×2,450 mm (236.2×96.5 in) |
| Max Table Load | 22,000 kg (48,501 lb) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Power Cont 30 Min | 34 / 43 kW (45.6 / 57.7 hp) |
| Spindle Torque Cont 30 Min | 162 / 205 Nm (119 / 151 lb-ft) |
| Spindle Taper | HSK-A100 |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | 10 / 15 / 15 m/min |
| Positioning Accuracy Jis B6333 | ±0.005/300, mm (±0.00020/11.8 in) ±0.010 mm (±0.0004 in)/Full travel |
| Repeatability Jis B6333 | ±0.002 mm (±0.00008 in) |
| Tool Capacity Floor Standing Vertical Tool Change | 24/32 pcs(opt.)/40 pcs(opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Permanent two-axis head for simultaneous five-axis cutting
- 6,000×2,450 mm (236.2×96.5 in) table for 22,000 kg (48,501 lb)
- 12,000 rpm HSK-A100 spindle with 162 / 205 Nm (119 / 151 lb-ft)
- Linear scales and HEIDENHAIN TNC640 as standard
Limitations
- X rapid of 10 m/min over 6,100 mm (240.2 in)
- No geared low-speed spindle such as the 4,000 rpm unit of the NF-6026
- Largest magazine listed is 40 pcs
Best For
Frequently Asked Questions
01
Both have a 6,000×2,450 mm (236.2×96.5 in) table for 22,000 kg (48,501 lb). The FA-6033 is a five-axis machine with a 12,000 rpm spindle. The NF-6026 is a five-face machine with attachment heads and a 4,000 rpm gear spindle as standard.
02
6,100 mm (240.2 in) in X, 3,300 mm (129.9 in) in Y and 1,000 mm in Z, with 1,200 mm optional. Port width is 2,700 mm (106.3 in).
03
The floor-standing type vertical tool change is listed at 24/32 pcs(opt.)/40 pcs(opt.). A 24 tools magazine with ATC is standard.
04
10 / 15 / 15 m/min for X, Y and Z. The five-metre FA-5033 lists 12.5 / 15 / 15 m/min. Cutting feed is 1-10,000 mm/min on both.
