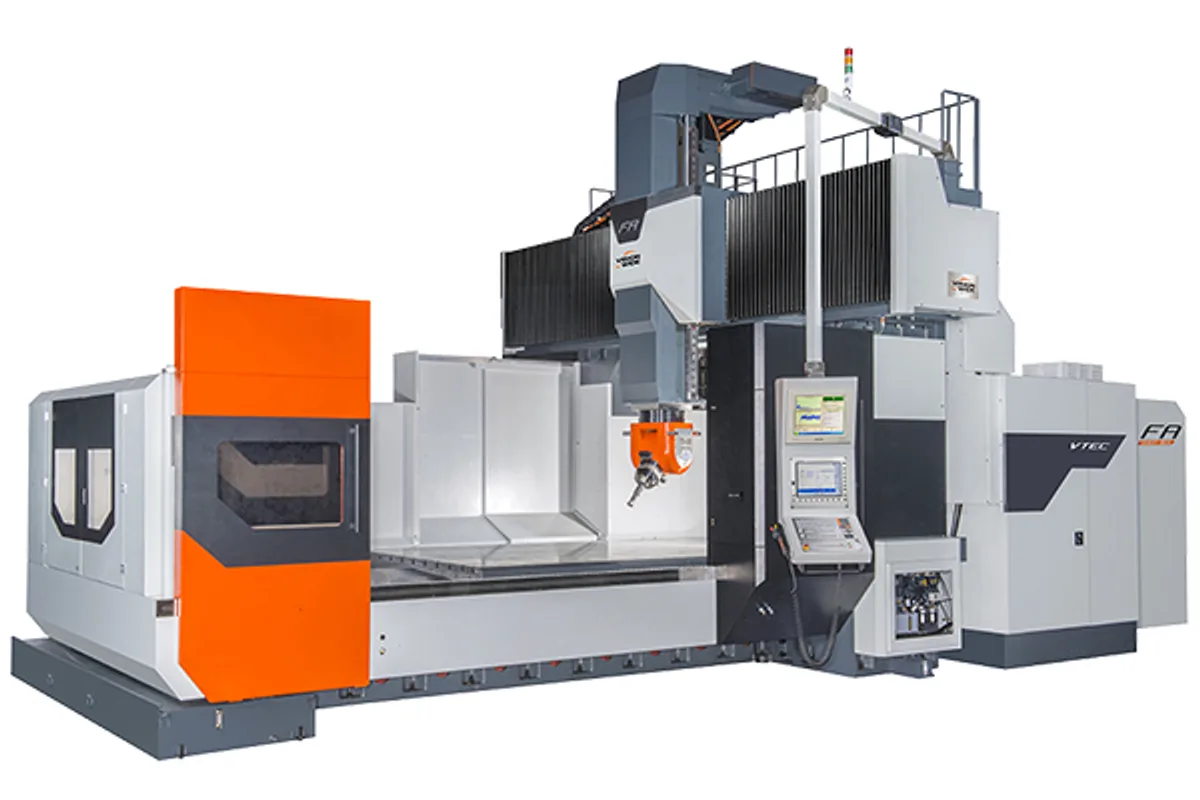

Vision Wide FA-3033
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Spindle Taper
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide FA-3033 cost?
Price estimate
We do not have a price for the Vision Wide FA-3033 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The widest FA frame starts with the Vision Wide FA-3033. Port width is 2,700 mm (106.3 in), Y travel is 3,300 mm (129.9 in), and the table measures 3,000×2,450 mm (118.1×96.5 in).
Those three numbers work together. A part up to the table width passes between the columns with room to spare, and the head can then travel well beyond it on both sides. For five-axis work on large, bulky parts such as bumper molds, engine-block tooling and big structural castings, that margin is what allows the tilted head to reach down the sides.
Table load is 13,000 kg (28,660 lb). The spindle is the HSK-A100 unit: 12,000 rpm, 34 / 43 kW (45.6 / 57.7 hp) and 162 / 205 Nm (119 / 151 lb-ft).
Rapid traverse is 24 / 15 / 15 m/min, so the cross axis and Z are slower than on the narrower frames; the FA-3027 lists 24 / 18 / 15 m/min. Accuracy over full travel is ±0.010 mm (±0.0004 in), with ±0.005 per 300 mm, and repeatability is ±0.002 mm (±0.00008 in). Those figures are looser than on the smaller frames, as would be expected of a longer beam. Z travel is 1,000 mm, or 1,200 mm as an option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | 3,300 mm (129.9 in) |
| Z Axis Travel | 1,000 / 1,200 mm (39.4 / 47.2 in)(opt.) |
| Port Width | 2,700 mm (106.3 in) |
| Table Size | 3,000×2,450 mm (118.1×96.5 in) |
| Max Table Load | 13,000 kg (28,660 lb) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Power Cont 30 Min | 34 / 43 kW (45.6 / 57.7 hp) |
| Spindle Torque Cont 30 Min | 162 / 205 Nm (119 / 151 lb-ft) |
| Spindle Taper | HSK-A100 |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | 24 / 15 / 15 m/min |
| Positioning Accuracy Jis B6333 | ±0.005/300, mm (±0.00020/11.8 in) ±0.010 mm (±0.0004 in)/Full travel |
| Repeatability Jis B6333 | ±0.002 mm (±0.00008 in) |
| Tool Capacity Floor Standing Vertical Tool Change | 24/32 pcs(opt.)/40 pcs(opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Port width of 2,700 mm (106.3 in) and Y travel of 3,300 mm (129.9 in)
- 3,000×2,450 mm (118.1×96.5 in) table for 13,000 kg (28,660 lb)
- HSK-A100 spindle with 162 / 205 Nm (119 / 151 lb-ft)
- X rapid of 24 m/min on the 3,100 mm (122.0 in) axis
Limitations
- Y and Z rapids of 15 m/min
- Full-travel positioning accuracy of ±0.010 mm (±0.0004 in)
- Cutting feed of 1-10,000 mm/min
Best For
Frequently Asked Questions
01
Port width between the columns is 2,700 mm (106.3 in) and the table is 3,000×2,450 mm (118.1×96.5 in). Y travel is 3,300 mm (129.9 in), so the head travels past the table on both sides.
02
Positioning accuracy is ±0.005/300 and ±0.010 mm (±0.0004 in)/Full travel; repeatability is ±0.002 mm (±0.00008 in). Both refer to JIS B6333.
03
24 / 15 / 15 m/min for X, Y and Z, so the table axis is the fast one. The cutting feed range is 1-10,000 mm/min.
04
13,000 kg (28,660 lb). The next length, the FA-4033, takes 16,000 kg (35,273 lb) on a 4,000×2,450 mm (157.5×96.5 in) table.
