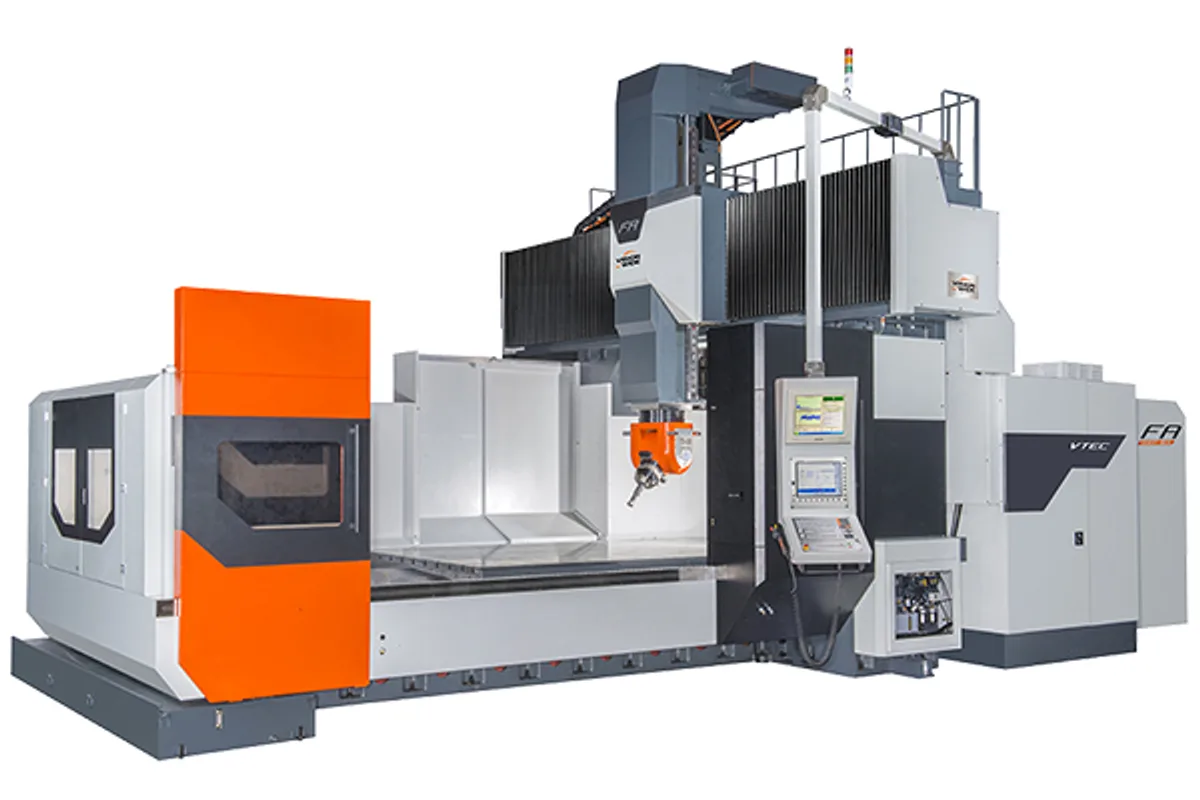

Vision Wide FA-2123
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Spindle Taper
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide FA-2123 cost?
Price estimate
We do not have a price for the Vision Wide FA-2123 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide FA-2123 is the smallest of the FA bridge-type five-axis machining centers, a moving-table double-column machine with a two-axis head. Travels are 2,100 mm (82.7 in) in X and 2,300 mm (90.6 in) in Y, with 800 mm of Z and 1,000 mm as an option.
The three FA-xx23 models are the high-speed end of the series. The table lists a spindle speed of 24,000 rpm on an HSK-A63 taper, with 25 / 30 kW (33.5 / 40.2 hp) and 30 / 36 Nm (22.1 / 26.6 lb-ft). Low torque and high speed mark a finishing spindle for small tools. One inconsistency needs clearing up with the maker: the standard accessory list gives the FA-xx23 spindle as 20,000rpm with tool shank HSK-A63, not the 24,000 rpm of the table.
Accuracy figures are published, which is not true of every Vision Wide series. Positioning accuracy is ±0.004 mm (±0.00016 in) over full travel and repeatability ±0.001 mm (±0.00004 in), both referred to JIS B6333, and the five-axis dynamic accuracy (TCPM) is 0.04mm.
The table is 2,300x1,600 mm (90.6x63.0 in) for 10,000 kg (22,046 lb), and the port width between the columns is 1,700 mm (66.9 in). Rapids are 24 / 24 / 20 m/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,100 mm (82.7 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel | 800 / 1,000 mm (31.5 / 39.4 in)(opt.) |
| Port Width | 1,700 mm (66.9 in) |
| Table Size | 2,300x1,600 mm (90.6x63.0 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| Max Spindle Speed | 24,000 rpm |
| Spindle Power Cont 30 Min | 25 / 30 kW (33.5 / 40.2 hp) |
| Spindle Torque Cont 30 Min | 30 / 36 Nm (22.1 / 26.6 lb-ft) |
| Spindle Taper | HSK-A63 |
| Cutting Feed Rate | 1~24,000 mm/min |
| Rapid Traverse Xyz | 24 / 24 / 20 m/min |
| Positioning Accuracy Jis B6333 | ±0.004 mm (±0.00016 in)/Full travel |
| Repeatability Jis B6333 | ±0.001 mm (±0.00004 in) |
| Tool Capacity Floor Standing Vertical Tool Change | 24/32 pcs(opt.)/40 pcs(opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Positioning accuracy of ±0.004 mm (±0.00016 in) over full travel, repeatability ±0.001 mm (±0.00004 in)
- High-speed HSK-A63 spindle listed at 24,000 rpm
- Cutting feed of 1~24,000 mm/min
- 10,000 kg (22,046 lb) table load on a five-axis machine
- XYZ axis linear scale feedback and HEIDENHAIN TNC640 as standard
Limitations
- Spindle torque of 30 / 36 Nm (22.1 / 26.6 lb-ft) rules out heavy roughing
- The table (24,000 rpm) and the accessory list (20,000rpm) disagree on the standard spindle speed
- Port width of 1,700 mm (66.9 in) limits part width between the columns
Best For
Frequently Asked Questions
01
The specification table lists 24,000 rpm, 25 / 30 kW (33.5 / 40.2 hp), 30 / 36 Nm (22.1 / 26.6 lb-ft) and an HSK-A63 taper. The standard accessory list names a spindle 20,000rpm with tool shank HSK-A63 for the FA-xx23 series, so confirm the speed with the maker.
02
Positioning accuracy is ±0.004 mm (±0.00016 in)/Full travel and repeatability is ±0.001 mm (±0.00004 in), referred to JIS B6333. Vision Wide also states a five-axis dynamic rotation synchronization accuracy (TCPM) of 0.04mm.
03
2,100 mm (82.7 in) in X, 2,300 mm (90.6 in) in Y and 800 / 1,000 mm (31.5 / 39.4 in)(opt.) in Z. Port width between the columns is 1,700 mm (66.9 in).
04
The table is 2,300x1,600 mm (90.6x63.0 in) and carries 10,000 kg (22,046 lb). It is longer than the X travel, which leaves clamping room at the ends.
