Matsuura MAM72-100H
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview

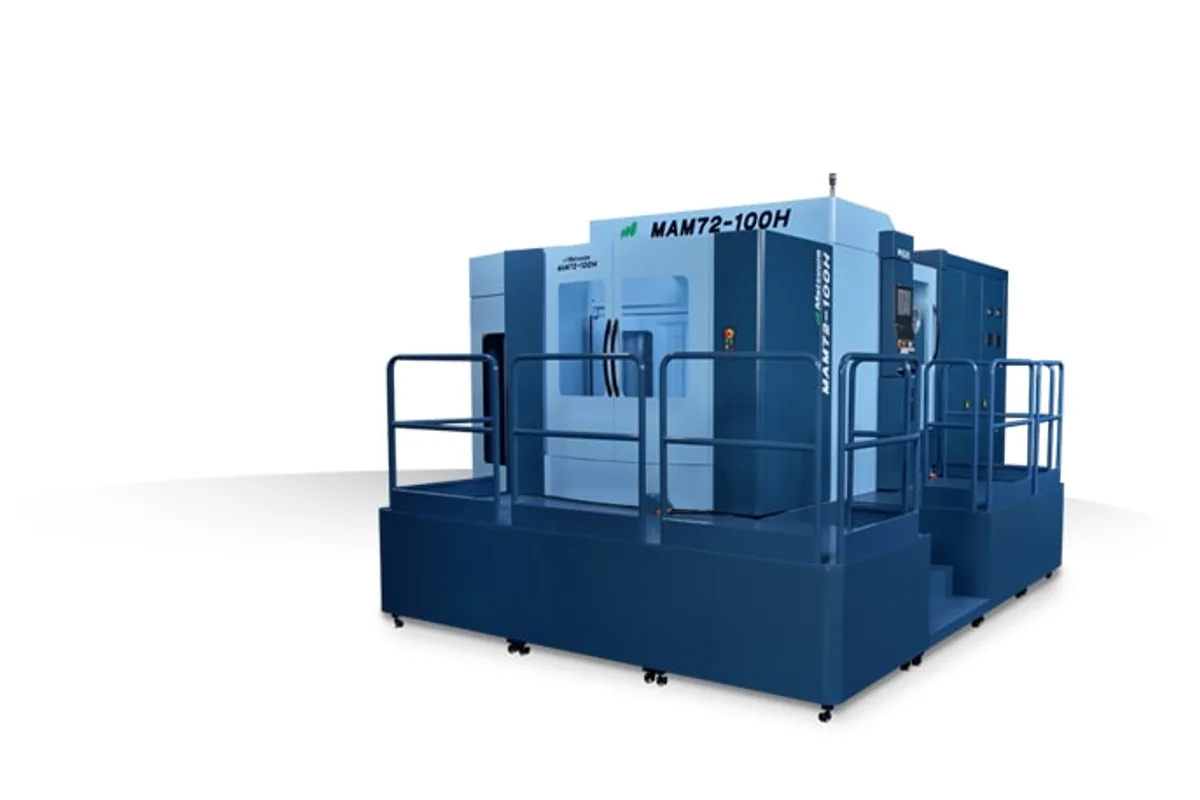

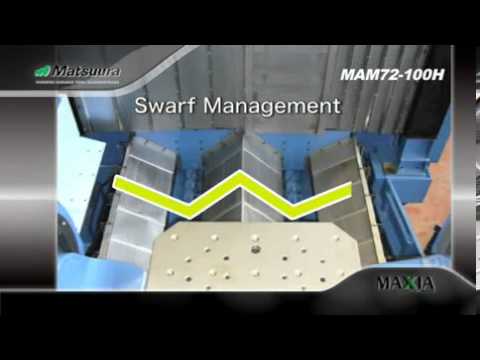

The Matsuura MAM72-100H is the horizontal-spindle variant in the MAM72 multi-pallet 5-axis family, built for machining large, heavy workpieces with full 5-axis capability and automated pallet handling. Where the vertical MAM72 variants (35V, 42V, 63V) excel at smaller precision parts, the 100H tackles structural aerospace components, large housings, and heavy industrial parts up to 1,000 mm (39.4 in) diameter and 800 kg (1,764 lb) per pallet. The horizontal spindle orientation also provides superior chip evacuation during heavy roughing.
Axis travel measures 1,050 x 900 x 900 mm (41.3 x 35.4 x 35.4 in) on X/Y/Z — a substantial work envelope. The A-axis tilts from +45 to -135 degrees and the C-axis rotates a full 360 degrees. The standard spindle is a BT50 at 10,000 RPM with 30/37 kW (40/50 hp), delivering the torque and power needed for titanium, Inconel, and hardened steel work. A high-speed 12,000 RPM option is available. HSK-A100 tooling is offered for maximum rigidity at speed.
The integrated pallet stocker holds up to 12 pallets at 1,000 mm (39.4 in) size, managed by Matsuura's MIMS cell controller. Tool capacity starts at 60 positions and scales to 330 tools. The machine sits on a massive cast iron bed weighing approximately 35,000 kg (77,162 lb) and runs on the G-Tech 31i touch-screen control. The horizontal spindle configuration with pallet automation makes the 100H a direct competitor to horizontal FMS systems from Mazak, Makino, and OKK, but packaged as a single integrated machine rather than a multi-machine cell.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,050 mm (41.3 in) |
| Y-Axis Travel | 900 mm (35.4 in) |
| Z-Axis Travel | 900 mm (35.4 in) |
| A Axis Range | +45° to -135° |
| C Axis Range | 360° (continuous) |
| Max Spindle Speed | 10,000 RPM BT50 (optional 12,000 RPM) |
| Spindle Taper | BT50 (HSK-A100 optional) |
| Spindle Motor Power | 30 / 37 kW (40 / 50 hp) |
| Spindle Torque | 500 Nm |
| Tool Capacity | 60 standard (up to 330 tools) |
| Pallet Capacity | Up to 12 pallets |
| Pallet Size | 1,000 x 1,000 mm (39.4 x 39.4 in) |
| Max Workpiece Size | 1,000 mm dia x 800 mm H (39.4 x 31.5 in) |
| Table Load Capacity | 800 kg (1,764 lb) per pallet |
| Rapid Traverse Xyz | 40 m/min (1,575 ipm) |
| Tool Change Time | 2.0 sec (tool-to-tool) |
| Through Spindle Coolant | 20 bar standard (70 bar optional) |
| Machine Weight | 35,000 kg (77,162 lb) |
| Floor Space Required | 6,500 x 7,200 mm (with pallet stocker) |
| CNC Control | Matsuura G-Tech 31i (FANUC 31i-B5 based, touch screen) |
| Mx Series | MAM72 Series |
| Mx 330mx 330 Pc10mx 420 Pc10mx 520mx 520 Pc4mx 520tmx 850mx 850 Pc4 | MAM72-35VMAM72-42VMAM72-52VMAM72-70VMAM72-100H |
Specifications sourced from matsuurausa.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Horizontal spindle with 500 Nm torque and 37 kW power tackles titanium and Inconel with authority — this is a real production spindle
- 1,000 mm workpiece diameter and 800 kg pallet load handle large structural aerospace and industrial components
- Horizontal orientation provides gravity-assisted chip evacuation, critical during heavy roughing in hard metals
- Up to 12 integrated pallets with 330-tool magazine delivers FMS-level automation as a single machine system
- Massive 35,000 kg machine weight provides excellent vibration damping and thermal mass stability
- MIMS cell controller and G-Tech 31i interface are shared with the rest of the MAM72 family for operator consistency
Limitations
- Price exceeding $1.2M requires substantial production volume and spindle utilization to justify the investment
- 35,000 kg weight demands serious foundation engineering — concrete pits and isolation pads are often required
- 6.5 x 7.2 m footprint with pallet stocker requires significant floor space allocation
- Matsuura's service infrastructure for these large machines is limited outside Japan, the EU, and major U.S. markets
- Complexity of the 12-pallet system means lengthy commissioning and extended time to reach full production efficiency
Best For
Frequently Asked Questions
01
New MAM72-100H pricing ranges from $1,200,000 to $2,000,000 depending on pallet count, spindle selection, tool magazine capacity, and software packages. Fully loaded configurations with 12 pallets, 330 tools, and HSK-A100 spindle can exceed $2.2 million. These rarely trade on the used market.
02
Horizontal spindle orientation provides gravity-assisted chip evacuation, which is critical when rough-machining deep pockets in titanium and Inconel where chip recutting destroys tools and surface finish. The horizontal setup also allows better access to part features on tall workpieces. The vertical MAM72 variants are better for smaller parts where gravity holds the workpiece naturally against the fixture.
03
All three target large 5-axis horizontal work for aerospace. The Makino T1 is arguably the benchmark for titanium cutting with its massive spindle and thermal management, while the Mazak HCR-5000 offers Mazak's extensive automation ecosystem. The MAM72-100H differentiates with its integrated multi-pallet stocker, MIMS cell management, and the consistency of the MAM72 platform across sizes. The Matsuura is less well-known in this segment than Makino or Mazak, but shops that run them report excellent reliability.
