Vision Wide GSF-5032

Q: How much does the Vision Wide GSF-5032 cost?

The price estimate for the Vision Wide GSF-5032 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-gsf-5032#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

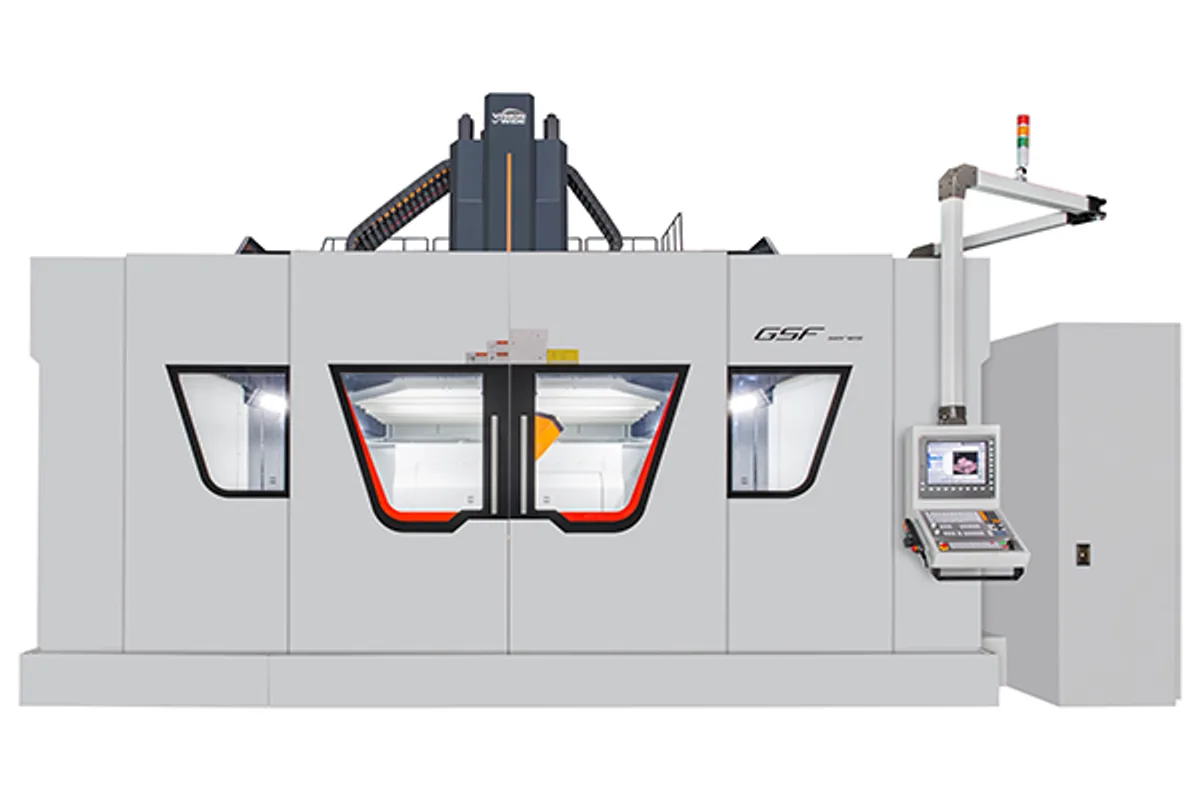

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

15,000 rpm

Tool Capacity

20/32/40/60 pcs

Table Size

5,000 x 3,200 mm (196.9 x 126.0 in)

x axis travel

5,000 mm (196.9 in)

y axis travel

3,200 mm (126.0 in)

z axis travel

1,000/1,200 mm (39.4/47.2 in)

How much does the Vision Wide GSF-5032 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide GSF-5032 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Keeping a five-axis head accurate over years of work is a maintenance question as much as a design one, and the Vision Wide GSF-5032 comes with part of the answer built in. X travel is 5,000 mm (196.9 in), Y travel 3,200 mm (126.0 in), and the table 5,000 x 3,200 mm (196.9 x 126.0 in).

Three items on the accessory lists bear on it. As standard, the 2-axis head has rotation error mechanism chain correction, meaning the errors of its rotary chain are mapped and compensated. As standard again, the linear axes are measured by scales: dual on X, single on Y and Z. And as an option, automatic correction software of rotary axis error lets the shop re-measure the head's kinematics when needed, after a collision or a change of season.

That last option is worth its place on any machine expected to hold the stated TCPM accuracy of 0.04mm over time. A head that was correct at installation drifts, and without a way to re-calibrate, the shop depends on a service visit.

The head's temperatures and cutting load are monitored by a standard protection system. Spindle power is 50/65 kW (67.1/87.2 hp) at 15,000 rpm. Rapids are 32 m/min in X and Y, and table load is 3,000 kg/m2.

Full Specifications

Parameter	Value
X Axis Travel	5,000 mm (196.9 in)
Y Axis Travel	3,200 mm (126.0 in)
Z Axis Travel	1,000/1,200 mm (39.4/47.2 in)
Table Size	5,000 x 3,200 mm (196.9 x 126.0 in)
Max Table Load	3,000 kg/m2
Spindle Power S1 S6	50/65 kW (67.1/87.2 hp)
Max Spindle Speed	15,000 rpm
Cutting Feed Rate	1-20,000 mm/min
Rapid Traverse Xyz	XY:32 m/min / Z:20 m/min
Tool Capacity	20/32/40/60 pcs

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

2-axis head rotation error mechanism chain correction is standard
Dual linear scale on X and linear scales on Y and Z
Optional automatic correction software of rotary axis error
5,000 x 3,200 mm (196.9 x 126.0 in) fixed table

Limitations

In-shop rotary axis re-calibration software is an option
No long-term accuracy or recalibration interval is stated
Z rapid of 20 m/min is slower than X and Y

Best For

Five-axis work that must hold accuracy between service visits Large molds and tooling up to 5,000 mm (196.9 in) long Shops with in-house calibration practice

Frequently Asked Questions

01 How is five-axis accuracy maintained on the Vision Wide GSF-5032?

2-axis head rotation error mechanism chain correction is standard, and automatic correction software of rotary axis error is optional. Vision Wide states a TCPM accuracy of 0.04mm.

02 What feedback do the linear axes of the GSF-5032 have?

X axis dual linear scale and Y/Z-axis linear scale, both on the standard accessory list. X and Z are driven by dual ballscrews.

03 What are the GSF-5032 travels and table?

5,000 mm (196.9 in) in X, 3,200 mm (126.0 in) in Y, 1,000/1,200 mm (39.4/47.2 in) in Z. The table is 5,000 x 3,200 mm (196.9 x 126.0 in).

04 Is the GSF-5032 head monitored?

Yes. The standard 2-axis head central monitoring protection system covers spindle and motor temperature, B/C-axis motor temperature and spindle cutting load software protection.
