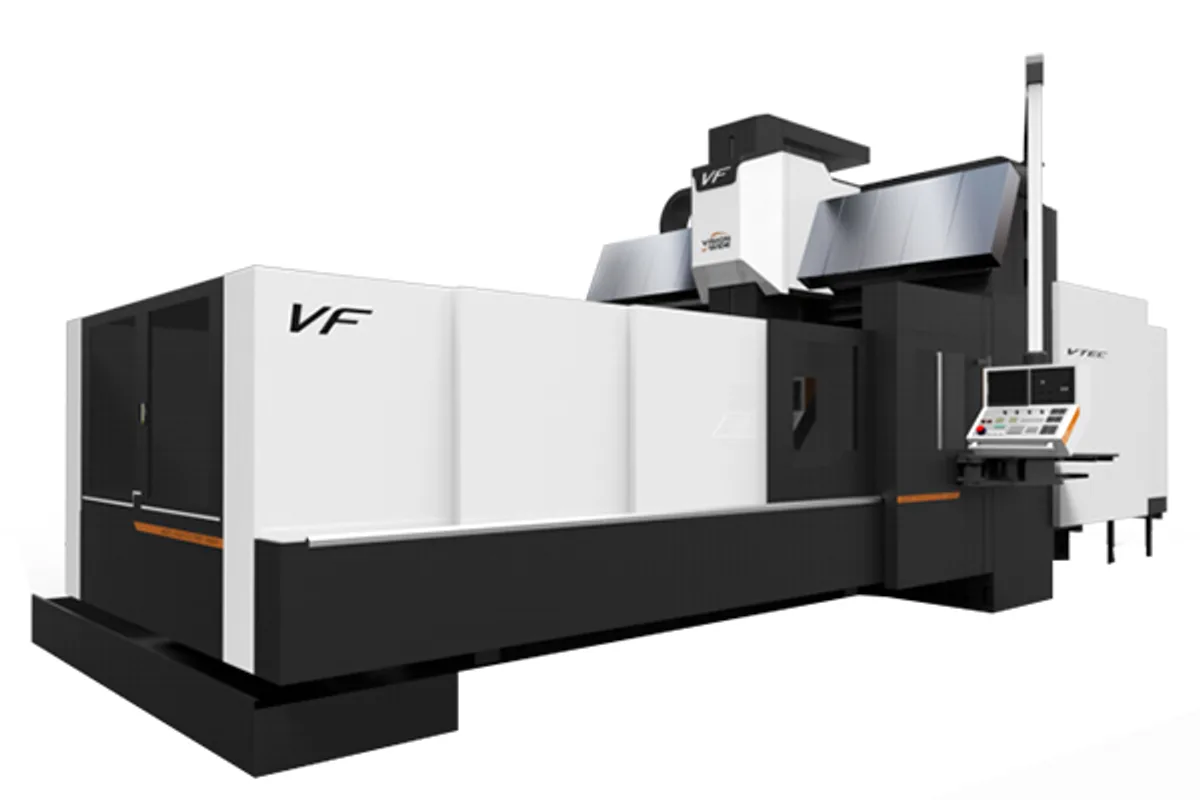

Vision Wide VF-4026
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide VF-4026 cost?
Price estimate
We do not have a price for the Vision Wide VF-4026 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Deep-hole work is one of the things a heavy box way machine is asked to do, and the Vision Wide VF-4026 has the coolant options for it. The list offers a coolant through spindle system at 20/70 bar, an interface preparation for that system, a coolant through tool holder interface with a 5 bar /20 bar cutting fluid interface, and an oil mist cooling device.
The distinction between the two through-tool routes is practical. Coolant through the spindle goes down the drawbar and suits long drills and boring bars run in the main spindle. Coolant through the tool holder feeds the holder from outside the spindle and is how fluid reaches a tool in an attachment head. A shop that drills from the side as well as from above may need both.
The machine offers the room for side work. Y travel is 2,600 mm (102.4 in) over a table 2,050 mm (80.7 in) wide, and X travel is 4,200 mm (165.4 in). The table, 4,200x2,050 mm (165.4x80.7 in), carries 13,000 kg (28,660 lb).
A cutting fluid cooling system is standard. Rapids are 10 m/min in X and 12 m/min in Y and Z. The spindle is geared, 4,000 rpm standard, on 18.5/22 kW (24.8/29.5 hp).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,200 mm (165.4 in) |
| Y Axis Travel | 2,600 mm (102.4 in) |
| Z Axis Travel | 920/1,020 mm (36.2/40.2 in)(Opt.) |
| Table Size | 4,200x2,050 mm (165.4x80.7 in) |
| Max Table Load | 13,000 kg (28,660 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp)(22/26 kW (29.5/34.9 hp) Opt.) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed 2 Step Gear | 4,000/6,000 rpm(Opt.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X:10 m/min Y/Z:12 m/min |
| Tool Capacity | 40/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Coolant through spindle system 20/70 bar available
- Coolant through tool holder interface for attachment-head work
- 4,200x2,050 mm (165.4x80.7 in) table for 13,000 kg (28,660 lb)
- 2,600 mm (102.4 in) of Y travel
Limitations
- All through-tool coolant systems are options
- X rapid of 10 m/min, slower than Y and Z
- Geared spindle only, 4,000 rpm or optionally 6,000 rpm
Best For
Frequently Asked Questions
01
Coolant through spindle system 20/70 bar, interface preparation for it, a coolant through tool holder interface, a coolant through tool holder 5 bar /20 bar cutting fluid interface, an oil mist cooling device and a spindle ring cutting coolant device.
02
X is 4,200 mm (165.4 in), Y is 2,600 mm (102.4 in) and Z is 920/1,020 mm (36.2/40.2 in)(Opt.). The VF-4000 has the same X and Z with 2,300 mm (90.6 in) of Y.
03
13,000 kg (28,660 lb) on a 4,200x2,050 mm (165.4x80.7 in) table, the same table and rating as the VF-4000 with its shorter Y travel.
04
Rapid traverse is 10 m/min in X and 12 m/min in Y and Z, with a cutting feed range of 1-7,000 mm/min. All three axes run on box ways.
