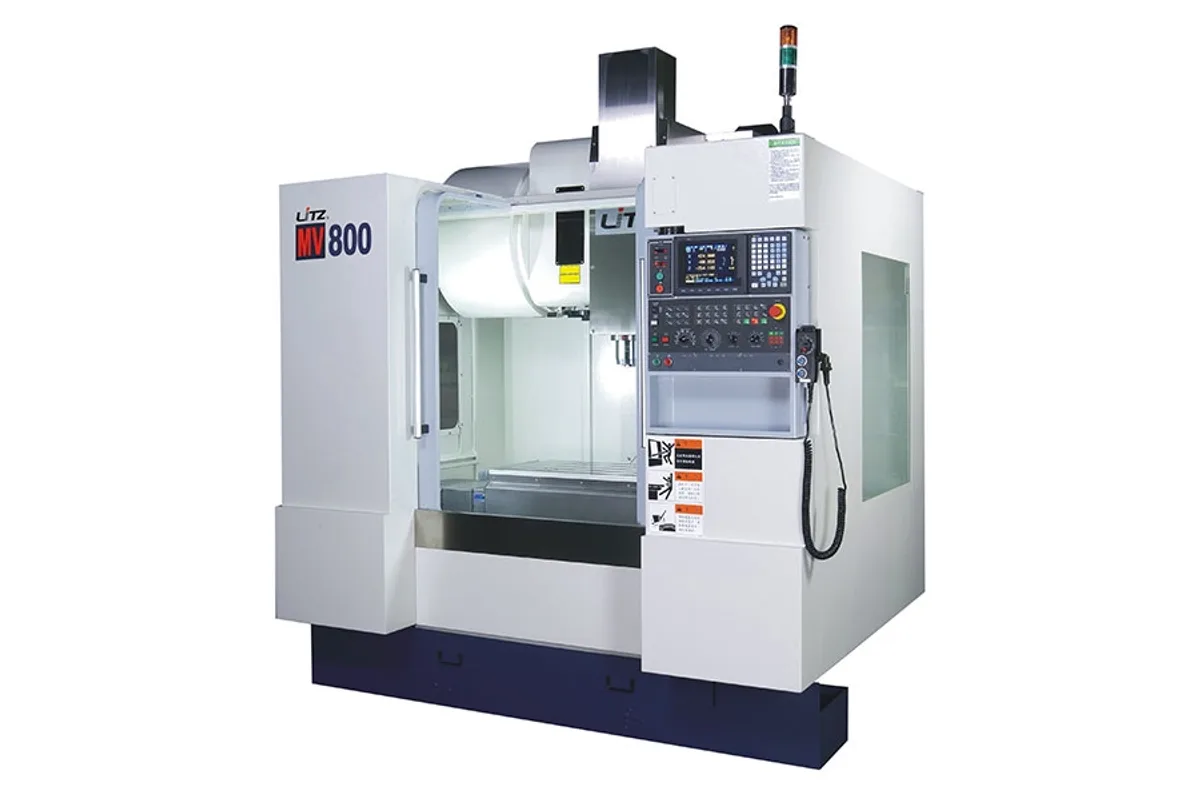

Litz MV-800
Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Litz MV-800 cost?
Price estimate
We do not have a price for the Litz MV-800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz MV-800 opens the MV vertical machining center series with 800 mm (31.5 in) of X travel, 450 mm (17.7 in) of Y and 540 mm (21.3 in) of Z. It carries a 10,000 rpm BT-40 spindle and a 24-tool arm changer, and at 4,500 kg (9,921 lb) it is the lightest MV model.
In the MV series spindle speed falls as the machines grow. The MV-1000 is listed at 8,000 rpm and the MV-1200B at 6,000 rpm, so the MV-800 is the quick one of the family, suited to smaller cutters and lighter parts. A 12,000 rpm spindle is listed as an option, along with a spindle oil cooler and coolant through the spindle. Note that the oil cooler is an option here; the standard spindle list has only the air seal system.
The table is 850 x 450 mm (33.5 x 17.7 in) with a 350 kg (772 lb) limit, and the T-slots sit 80 mm from the centre where the MV-1000 uses 100 mm. Spindle nose to table distance is 80 to 620 mm (3.1 to 24.4 in), low enough to reach thin work with stub tools.
Rapids are 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) and cutting feed runs to 20,000 mm/min. The axis motors are small at 1.5 / 1.5 / 2.0 kW, in keeping with the light table. Supply is 15 kVA, coolant capacity 200 L, and the standard control is the Mitsubishi M80.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 800 mm (31.5 in) |
| Y Axis Travel | 450 mm (17.7 in) |
| Z Axis Travel | 540 mm (21.3 in) |
| Distance Spindle Nose to Table | 80 to 620 mm (3.1 to 24.4 in) |
| Max Spindle Speed | 10,000 rpm |
| Tool Capacity | 24 |
| Max Tool Diameter (full magazine) | 80 / 125 mm (3.1 / 4.9 in) |
| Max Tool Length | 270 mm (10.6 in) |
| Max Tool Weight | 8 kg (18 lb) |
| Tool Change Method | Arm |
| Tool Shank | BT-40 |
| Axis Motors Xyz | 1.5 / 1.5 / 2.0 kW |
| Table Size | 850 x 450 mm (33.5 x 17.7 in) |
| Max Table Load | 350 kg (772 lb) |
| T-Slots | 5 x 18 mm x 80 mm (number x width x distance from the center) |
| Cutting Feed Rate | 1-20,000 mm/min (up to 787 ipm) |
| CNC Control | Mitsubishi M80 |
| Machine Weight | 4,500 kg (9,921 lb) |
| Power Requirement | 15 kVA |
| Coolant Tank Capacity | 200 L |
| Compressed Air | 6 kg/cm² |
| Rapid Traverse Xyz | 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 10,000 rpm standard spindle, the fastest standard speed in the MV series, with 12,000 rpm as an option
- Spindle nose reaches down to 80 mm (3.1 in) above the table
- 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) rapids
- Lightest MV model at 4,500 kg (9,921 lb) on a 15 kVA supply
Limitations
- 350 kg (772 lb) table load limits fixture and part weight
- Spindle oil cooler is an option on this model
- Y travel of 450 mm (17.7 in) is short next to the 500 mm of the MV-1000
- Tool length is limited to 270 mm (10.6 in)
Best For
Frequently Asked Questions
01
The MV-800 travels 800 mm (31.5 in) in X, 450 mm (17.7 in) in Y and 540 mm (21.3 in) in Z. Its table is 850 x 450 mm (33.5 x 17.7 in), rated for 350 kg (772 lb), and the spindle nose sits 80 to 620 mm (3.1 to 24.4 in) above it.
02
The standard spindle runs at 10,000 rpm with BT-40 tooling and a spindle air seal system. Litz lists a 12,000 rpm spindle, a spindle oil cooler and coolant through the spindle as options.
03
The arm type magazine holds 24 tools. Tool length can be up to 270 mm (10.6 in) and tool weight up to 8 kg (18 lb). Maximum tool diameter is listed as 80 / 125 mm (3.1 / 4.9 in).
04
The MV-1000 is the next size: 1,000 x 500 x 540 mm travels and a 500 kg (1,102 lb) table load, with an 8,000 rpm standard spindle. The MV-800 is smaller, lighter at 4,500 kg against the 5,800 kg of the MV-1000, and faster at 10,000 rpm.
