Hartford Vertical Machining Centers (VMC)

Hartford SW-426

Q: How much does the Hartford SW-426 cost?

The price estimate for the Hartford SW-426 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/hartford-sw-426#price; the request is passed to Hartford or an authorised dealer.

Specs verified 2026-10-04 · hartfordcnc.com Updated 2026-10-04

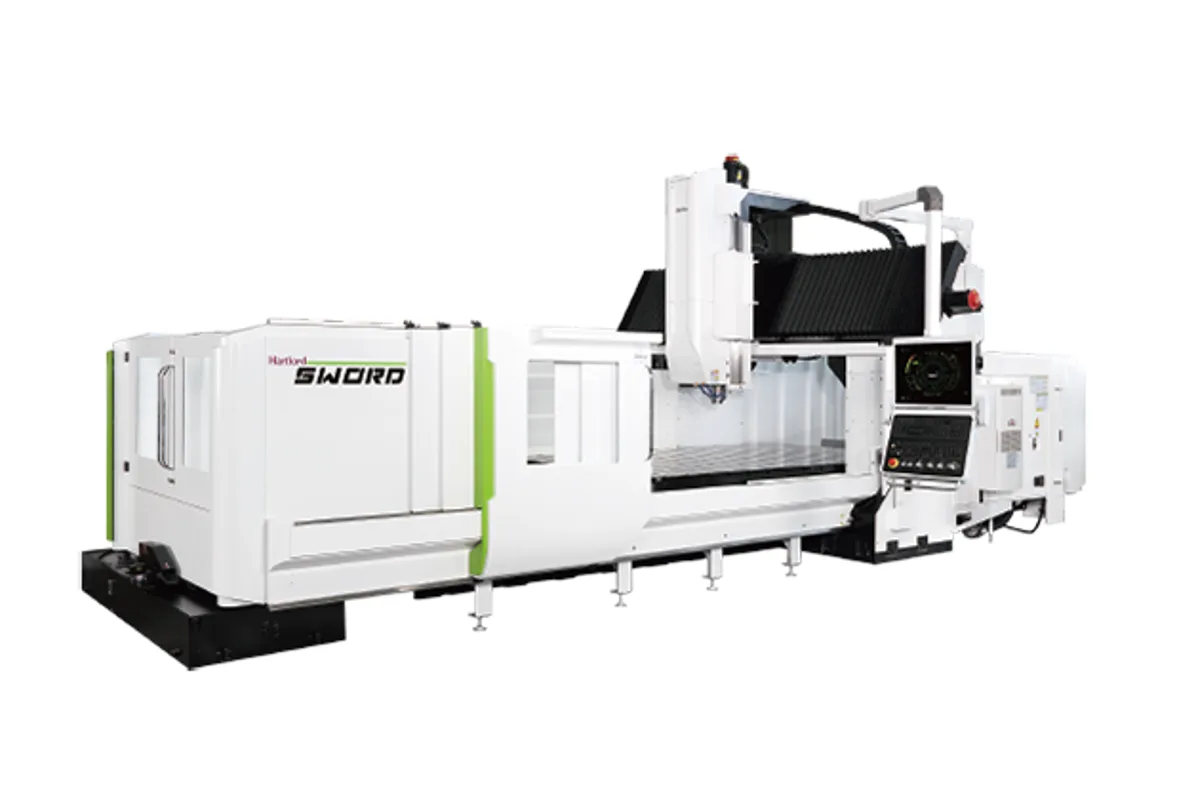

Image: hartfordcnc.com, Hartford

Key Specifications

Spindle Taper

#50

Tool Capacity

S: 20 A: 32(40) pcs

Table Size

4,000 x 2,500 mm (157.5 x 98.4 in)

Spindle Power

15/18.5 opt. 18.5/22, 22/26, 30/37 kW (Cont. / 30 min)

max table load

13,500 kg (29,762 lb)

t slots

28 x 250 (16) mm

How much does the Hartford SW-426 cost?

Price estimate

Uncertain

We do not have a price for the Hartford SW-426 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hartford SW-426 carries 13,500 kg (29,762 lb) on a 4,000 x 2,500 mm (157.5 x 98.4 in) table. It is a box-guideway double-column machining center with 4,000 mm (157.5 in) of X travel and 2,600 mm (102.4 in) of Y.

Hartford's page for this model puts the emphasis on three things under one heading: its gibs, its self-made gear-driven spindle head and the use of angular heads. The gibs deserve a word. A box way is adjusted for clearance by a tapered gib, and on the SW machines that gib is lubricated directly, with double gibs on X and Y. Direct feed keeps oil at the sliding face and off the outside of the casting, which protects the Turcite-B lining from running dry.

The gear head is listed at 4,000 / 6,000 rpm. A #50 DDS spindle at 10,000 / 12,000 rpm is the alternative for finishing. Motors run from 15/18.5 kW through 18.5/22 kW and 22/26 kW to 30/37 kW (Cont. / 30 min).

Z travel is 780 mm, with 1,070 mm as the option. The tool changer is either an S type, listed as S: 20, or an arm type with 32 tools, or 40. The shank is BT-50; BBT-50, CAT-50 and DIN69871A are alternatives.

Full Specifications

Parameter	Value
Table Size	4,000 x 2,500 mm (157.5 x 98.4 in)
Max Table Load	13,500 kg (29,762 lb)
T-Slots	28 x 250 (16) mm
X Axis Travel	4,000 mm (157.5 in)
Y Axis Travel	2,600 mm (102.4 in)
Z Axis Travel	780 opt. 1,070 mm
Spindle Taper	#50
Spindle Speed Gear	4,000 / 6,000 rpm
Spindle Speed Dds	10,000 / 12,000 rpm
Tool Capacity	S: 20 A: 32(40) pcs
Tool Shank	BT-50 (BBT-50 /CAT-50 /DIN69871A)
Spindle Motor Power	15/18.5 opt. 18.5/22, 22/26, 30/37 kW (Cont. / 30 min)

Specifications sourced from hartfordcnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

13,500 kg (29,762 lb) table load on a 4,000 x 2,500 mm (157.5 x 98.4 in) table
Directly lubricated taper gibs, doubled on X and Y
Gear head at 4,000 / 6,000 rpm with motor options up to 30/37 kW
DDS spindle at 10,000 / 12,000 rpm for finishing
2,600 mm (102.4 in) of Y travel

Limitations

Arm-type magazine holds 32 tools, or 40
Gear head speed is capped at 6,000 rpm
Standard Z travel of 780 mm
No published figures for feed thrust or rapid traverse

Best For

Large mould bases and die shoes Heavy plates up to four metres long and 2,500 mm wide Roughing in steel with a 30/37 kW gear head Parts up to 13,500 kg (29,762 lb)

Frequently Asked Questions

01 What is the capacity of the Hartford SW-426?

The table is 4,000 x 2,500 mm (157.5 x 98.4 in) with an average load of 13,500 kg (29,762 lb). Travels are 4,000 mm (157.5 in) in X, 2,600 mm (102.4 in) in Y and 780 mm in Z, or 1,070 mm optionally.

02 How are the box ways of the SW-426 lubricated?

Through the taper gibs. Hartford states that taper gib lubrication prevents oil leaking from the contact surface between casting and gibs and avoids lubrication failure on the Turcite-B, and that double gibs on the X and Y axis improve machining accuracy.

03 What spindle options does the SW-426 have?

A #50 gear spindle at 4,000 / 6,000 rpm or a #50 DDS spindle at 10,000 / 12,000 rpm. The motor is 15/18.5 kW with 18.5/22 kW, 22/26 kW and 30/37 kW as options.

04 SW-426 or SW-423?

The SW-423 has a 4,000 x 2,200 mm (157.5 x 86.6 in) table, 2,300 mm (90.6 in) of Y travel and a 12,000 kg (26,455 lb) load. The SW-426 is wider and carries more; spindles and motors are the same.
