GF Machining Mikron MILL E 1400 U ST
This model was not found in GF Machining Solutions's current lineup when we checked on 2026-10-02 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

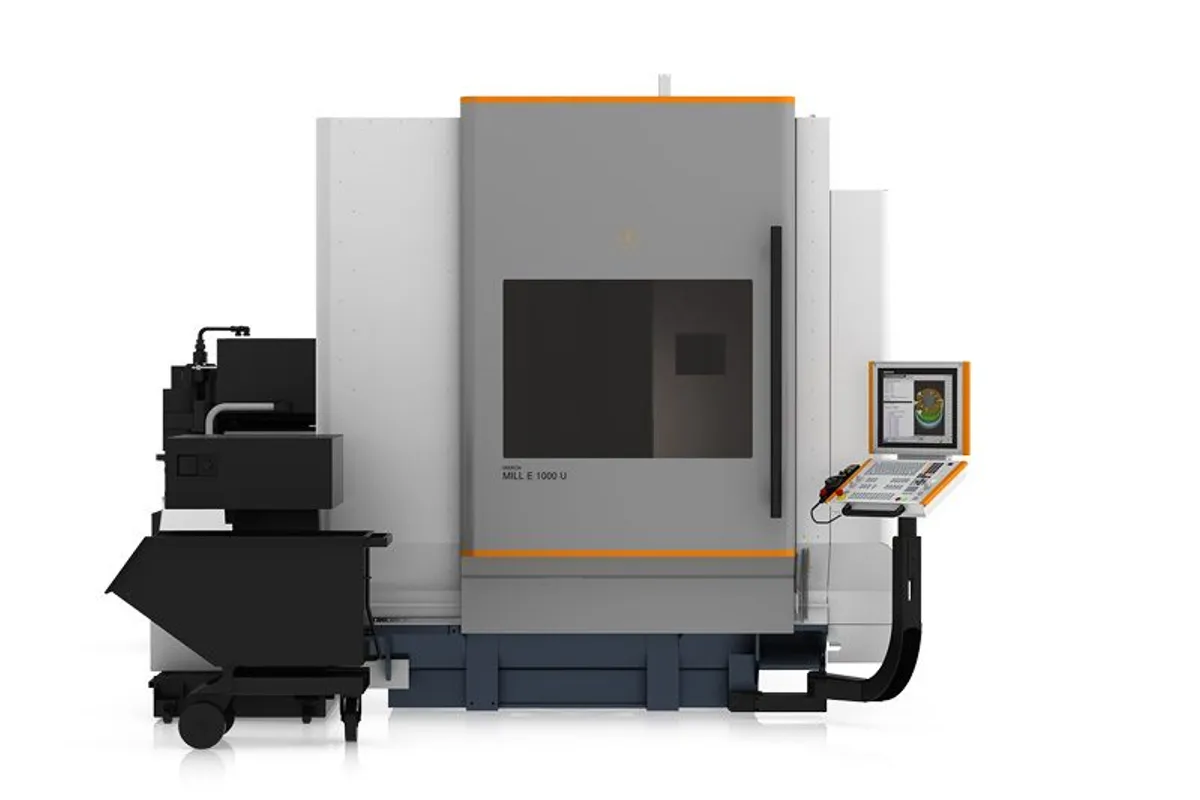

Image: assets.georgfischer.com, GF Machining Solutions
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the GF Machining Mikron MILL E 1400 U ST cost?
Estimated price range
Our best estimate for a 5-axis machining center in this class — not a quote from GF Machining Solutions. Configuration moves it a long way.
Overview
The Mikron MILL E 1400 U ST is a 5-axis mill-turn machining center with 1,380 x 1,150 x 900 mm of X, Y and Z travel and a 12,000 rpm spindle with an HSK-T100 interface. This model name does not appear in GF Machining Solutions' current Mikron lineup, so the page is mainly of use to someone assessing a used machine, and the figures below are the listed ones.
The ST version adds turning to 5-axis milling, and the table carries two load ratings to match: 1,600 kg when milling and 1,000 kg when turning. The lower figure is the one to plan with for a heavy ring or housing, because a part that is spun has to be balanced as well as clamped. The A axis swivels from +16 deg to -110 deg and the C axis turns n x 360 deg continuously, so the far side of a part can be reached without a second setup.
Axis feed is listed as 15 m/min, with 32 m/min as the S6 option. HSK-T100 is an interface built to hold turning tools as well as milling cutters, so one magazine serves both kinds of operation. Tool storage starts at 30 pockets, with tower magazines of 90, 130 or 175 pockets listed, and the control is given as Heidenhain TNC 7 or Siemens SINUMERIK ONE.
The current Mikron MILL E 1900 U ST is the larger mill-turn model, with 1880 x 1400 x 930 mm of travel and a table rated 4000 kg for milling and 2400 kg for turning.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,380 mm (54.3 in) |
| Y-Axis Travel | 1,150 mm (45.3 in) |
| Z-Axis Travel | 900 mm (35.4 in) |
| Table Load Milling | 1,600 kg (3,527 lb) |
| Table Load Turning | 1,000 kg (2,205 lb) |
| A Axis Swivel Range | +16 deg / -110 deg |
| C Axis Rotation | n x 360 deg (continuous) |
| Max Spindle Speed | 12,000 RPM |
| Spindle Taper | HSK-T100 |
| Tool Capacity | HSK-T100: 30 / Tower 90 / 130 / 175 pockets |
| Feed Rate | 15 m/min (32 m/min S6 option) |
| CNC Control | Heidenhain TNC 7 / Siemens SINUMERIK ONE |
| Travel X Y Z | 1880 x 1400 x 930 mm |
| Feed Rate X Y Z | 15 / 41 (S6) m/min |
| Swivelling Range | +20 (HSK-T100)-110° (HSK-T100) |
| Rotary Range | n x 360° |
| Feed Rate Swivel | 11 (S6) rpm20 (S6) rpm |
| Feed Rate Rotary | 30 rpm Simultaneous Turning300 rpm Simultaneous Turning |
| Working Table | T-slot table radial Ø1500 mm for Simultaneous Turning |
| Table Load Capacity | 4000 kg milling / 2400 kg turning |
| Working Spindle | 12'000 rpm - HSK-T100 |
| Automation | On request |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- 1,380 x 1,150 x 900 mm of travel for large 5-axis parts in one clamping
- Mill-turn table rated 1,600 kg for milling and 1,000 kg for turning
- 12,000 rpm spindle with an HSK-T100 interface that holds turning tools as well as milling cutters
- Tool storage from 30 pockets up to tower magazines of 90, 130 or 175 pockets
- A axis from +16 deg to -110 deg with a continuous C axis
Limitations
- Not in GF Machining Solutions' current Mikron lineup under this name, so a machine on offer must be checked against its own build documents
- Turning load is 1,000 kg against 1,600 kg for milling, which rules out turning the heaviest parts the table can mill
- Standard axis feed is 15 m/min; 32 m/min needs the S6 option
- The 12,000 rpm HSK-T100 spindle is built for heavy cutting and turning rather than small-tool high-speed finishing
Best For
Frequently Asked Questions
01
This model name does not appear in GF Machining Solutions' current Mikron lineup. The current Mikron MILL E 1900 U ST has 1880 x 1400 x 930 mm of travel and a table rated 4000 kg for milling and 2400 kg for turning. For a used MILL E 1400 U ST, confirm spindle, magazine and control against the machine's own documentation.
02
The listed turning load is 1,000 kg, against 1,600 kg for milling. Turning spins the part on the table, so the lower figure applies to any job that includes turning operations, and the part and fixture should be balanced before the table is run up to speed.
03
1,380 mm in X, 1,150 mm in Y and 900 mm in Z. The A axis swivels from +16 deg to -110 deg and the C axis turns n x 360 deg continuously, so most faces of a part can be reached in one clamping.
04
A 12,000 rpm spindle with an HSK-T100 interface. Tool storage is 30 pockets, with tower magazines of 90, 130 or 175 pockets listed. The control is given as Heidenhain TNC 7 or Siemens SINUMERIK ONE, so check which one a particular machine carries.
