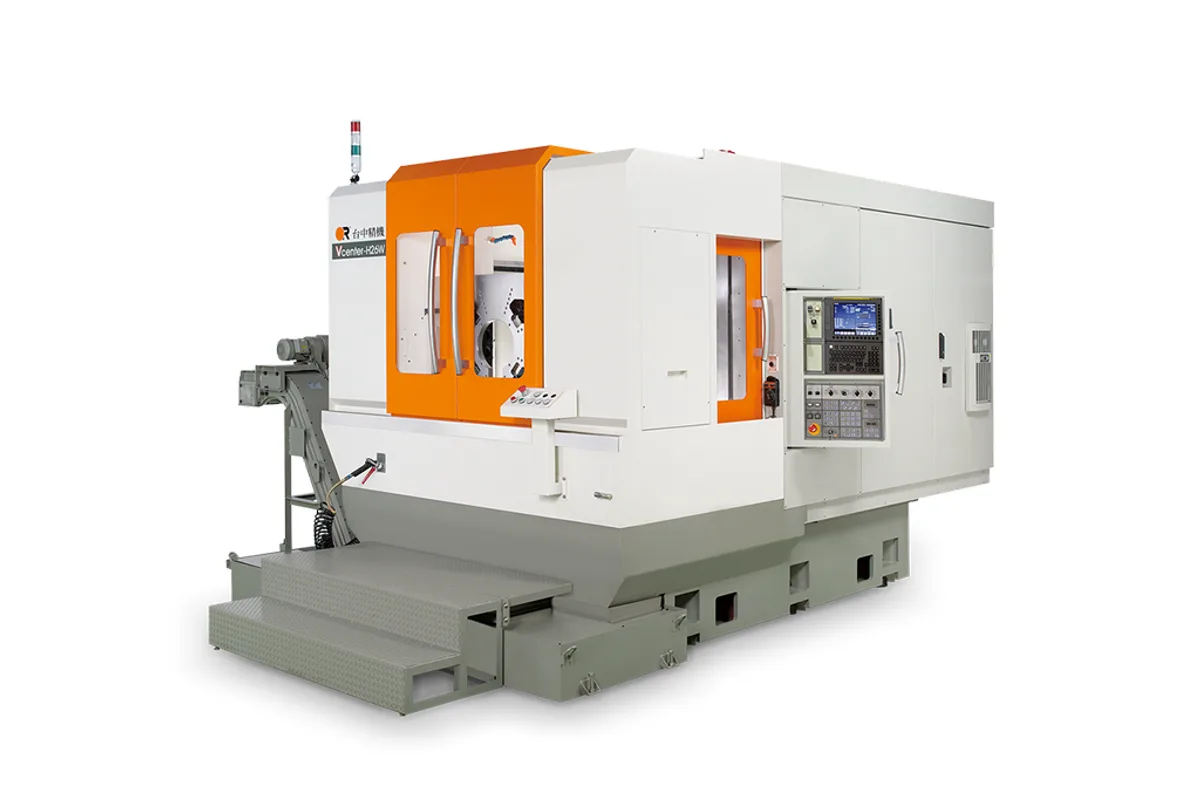

Victor Taichung Vcenter-H26W
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Accuracy
Repeatability
x axis travel
How much does the Victor Taichung Vcenter-H26W cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-H26W that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-H26W is a moving-column machining center made to bore alloy wheels from both sides. Victor Taichung says it launched the model to meet demand for rear boring of the wheel valve hole, for manufacturers covering wheel sizes from 13 to 26 in. Travels are 720 mm (28.34 in) in X and Y and 520 mm (20.47 in) in Z.
The point of the design is position accuracy between the two faces of a wheel. Bolt holes and valve holes machined from both sides in one clamping line up better than holes finished in two set-ups, and the maker claims higher position accuracy on wheels of 21 to 26 inches for that reason. The maximum wheel size row reads 24 x 12J, with 26 x 10J in brackets.
All three axes are on the column, which the maker says allows a rapid feed rate of 48/48/48 m/min. The spindle is a BT-40 unit at 8,000 rpm and the magazine holds 12 tools, enough for a wheel's short tool list and little else. Listed accuracy is 0.010 mm with a repeatability of 0.007 mm (±0.0035 mm).
The machine comes with a rotary table and a wheel clamping fixture, an auto door, a chip conveyor and an oil skimmer as standard, and a second, larger wheel fixture is an option. At 10,500 kg (23,148.50 lb) it is the heaviest of the maker's three wheel machining centers.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 720 mm (28.34 in) |
| Y Axis Travel | 720 mm (28.34 in) |
| Z Axis Travel | 520 mm (20.47 in) |
| Max Wheel Size | 24 x 12J (26 x 10J) in |
| Spindle Taper | BT-40 |
| Max Spindle Speed | 8,000 rpm |
| Tool Capacity | 12 |
| Max Tool Weight | 7 kg (15.43 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 10,500 kg (23,148.50 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Bores bolt holes and valve holes from both sides in one clamping, per the maker
- Rapid feed rate of 48/48/48 m/min on a 3-axis moving column
- Rotary table with wheel clamping fixture, auto door and chip conveyor are standard
- Covers wheel sizes from 13 to 26 in according to the maker
- Listed accuracy of 0.010 mm
Limitations
- Only 12 tools in the magazine
- Spindle speed is limited to 8,000 rpm
- Z travel is 520 mm (20.47 in)
- A dedicated wheel machine weighing 10,500 kg (23,148.50 lb)
Best For
Frequently Asked Questions
01
Victor Taichung describes it as a solution for boring the PCD bolt holes and valve holes from both sides of the wheel, which it says assures higher position accuracy. It was launched for rear boring of the valve hole.
02
The table row for maximum wheel size reads 24 x 12J with 26 x 10J in brackets. The maker's description gives a coverage of 13 to 26 in wheels.
03
Travels are 720 mm (28.34 in) in X, 720 mm (28.34 in) in Y and 520 mm (20.47 in) in Z. The maker quotes a rapid feed rate of 48/48/48 m/min for the 3-axis moving column.
04
An auto door, an oil skimmer, a chip conveyor and a rotary table with a wheel clamping fixture. Coolant through the spindle, tool length measurement, part measuring and an oil mist collector are options.
More from Victor Taichung
Other Horizontal Machining Centers (HMC)
LiCON LiFLEX I 755
Kitamura Mycenter-HX250iG

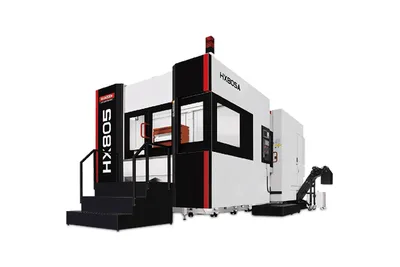

Quaser HX805
