Haas Automation Horizontal Machining Centers (HMC)

Haas EC-630

List US$447,995 Specs verified 2026-10-02 · haascnc.com Updated 2026-10-02

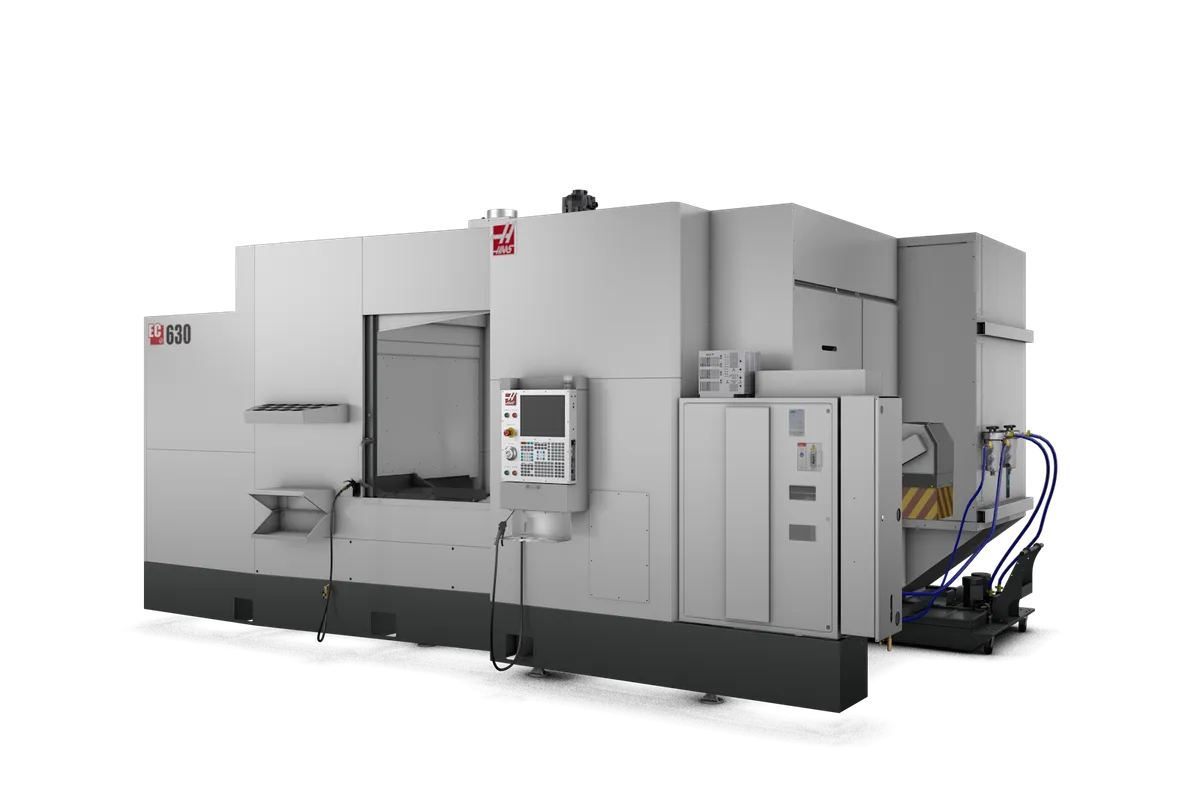

Image: haascnc.com, Haas Automation

Key Specifications

X Travel

40 in (1,016 mm)

Y Travel

37 in (940 mm)

Z Travel

40 in (1,016 mm)

Max Spindle

7,500 rpm

Spindle Taper

CT or BT 50

Tool Capacity

50+1

How much does the Haas EC-630 cost?

Manufacturer list price

US$447,995

As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.

Overview

The Haas EC-630 is a 50-taper horizontal machining center with two 24.8 in (630 mm) pallets and 40 × 37 × 40 in (1,016 × 940 × 1,016 mm) of travel. Each pallet carries 1,500 lb (680 kg) and clears a part 39.4 in (1,000 mm) in diameter and 39.4 in tall, a one-metre cylinder.

That envelope is what separates it from the EC-500/50, which pairs the same spindle figures with 19.69 in (500 mm) pallets limited to 880 lb (400 kg). On the EC-630 the Y travel of 37 in (940 mm) comes close to the full part height, so most of a tall tombstone is within reach of the spindle. Y thrust is listed at 6,985 lbf (31,071 N), well above the 4,054 lbf (18,033 N) on X and Z.

The spindle runs through a 2-speed gearbox: 30 hp (22.4 kW), 340 ft-lbf (460 N·m) at 700 rpm and a 7,500 rpm top speed, in CT or BT 50. The side-mount changer holds 50+1 tools of up to 30 lb (13.6 kg) and 20 in (508 mm) in length. Diameter is 4 in (102 mm) with a full magazine and 7 in (178 mm) with the neighbouring pockets empty. Tool changes take 4.2 s tool-to-tool and 6.3 s chip-to-chip, and a pallet change takes 15 s. None of this is fast: rapids are 710 ipm (18 m/min) and the cutting feedrate tops out at 500 ipm (12.7 m/min). The figures describe a machine that earns its keep on metal removed per setup, not on traverse time.

The B axis has 0.001° resolution, ± 15 arc-sec indexing accuracy and 10 arc-sec repeatability, and turns at 150°/sec. Its rotational torque is 424 ft-lbf (575 N·m), with a 2,500 ft-lbf brake to hold position under cut.

Installation needs planning. The machine weighs 30,900 lb and ships on a 240 × 143.3 × 136 in (610 × 364 × 345 cm) pallet. Air demand is 9 scfm at 100 psi (255 L/min at 6.9 bar), and 100 psi is also the minimum. Haas lists a starting price of US$447,995.

Full Specifications

Parameter	Value
X-Axis Travel	40 in (1,016 mm)
Y-Axis Travel	37 in (940 mm)
Z-Axis Travel	40 in (1,016 mm)
Spindle Centerline to Table	1.1 in (28 mm)
Spindle Motor Power	30 hp (22.4 kW)
Max Spindle Speed	7,500 rpm
Spindle Torque	340 ft-lbf @ 700 rpm (460 N·m @ 700 rpm)
Spindle Drive	2-Speed Gearbox
Spindle Taper	CT or BT 50
Spindle Bearing Lubrication	Air / Oil Injection
Spindle Cooling	Air Cooled
B Axis 90 Rotation Time	3 s
B Axis Max Weight on Platter	1,500 lb (680 kg)
B Axis Rotational Torque	424 ft-lbf (575 N·m)
B Axis Backlash	30 arc-sec
B Axis Gear Ratio	106:1
B Axis Brake Torque	2,500 ft-lbf
B Axis Min Resolution	0.001 °
B Axis Indexing Accuracy	± 15 arc-sec
B Axis Repeatability	10 arc-sec
B Axis Rapids on B	150 °/sec
Max Cutting Feedrate	500 ipm (12.7 m/min)
Rapid Traverse Rate	710 ipm (18 m/min)
Max Thrust X	4,054 lbf (18,033 N)
Max Thrust Y	6,985 lbf (31,071 N)
Max Thrust Z	4,054 lbf (18,033 N)
Pallets	2
Pallet Size	24.8 × 24.8 in (630 × 630 mm)
Max Pallet Load	1,500 lb (680 kg)
Pallet Max Part Diameter	39.4 in (1,000 mm)
Pallet Max Part Height	39.4 in (1,000 mm)
Pallet Change Time	15 s
Coolant Capacity	95 gal (360 L)
Tool Changer Type	SMTC
Tool Capacity	50+1
Max Tool Diameter (full magazine)	4 in (102 mm)
Max Tool Diameter (adjacent pockets empty)	7 in (178 mm)
Max Tool Length	20 in (508 mm)
Max Tool Weight	30 lb (13.6 kg)
Tool Change (tool-to-tool)	4.2 s
Tool Change (chip-to-chip)	6.3 s
Air Required	9 scfm @ 100 psi (255 L/min @ 6.9 bar)
Inline Air Hose	1/2 in
Air Coupler	1/2 in
Air Pressure Min	100 psi (6.9 bar)
Electrical Service (low voltage)	220 VAC 3-phase, 70 A
Electrical Service (high voltage)	440 VAC 3-phase, 35 A
Shipping Domestic Pallet	240 × 143.3 × 136 in (610 × 364 × 345 cm)
Shipping Export Crate	241 × 144 × 139 in (612 × 366 × 353 cm)
Machine Weight	30,900 lb

Specifications sourced from haascnc.com — verified 2026-10-02

Strengths & Limitations

Strengths

Part envelope of 39.4 in (1,000 mm) diameter by 39.4 in height on a 24.8 in (630 mm) pallet
1,500 lb (680 kg) per pallet, against 880 lb (400 kg) on the EC-500/50
Gear-driven CT or BT 50 spindle with 340 ft-lbf (460 N·m) at 700 rpm
50+1 tools up to 20 in (508 mm) long and 30 lb (13.6 kg)
37 in (940 mm) of Y travel backed by 6,985 lbf (31,071 N) of Y thrust

Limitations

Rapids are 710 ipm (18 m/min); the 40-taper EC-500 moves at 1,400 ipm (35.6 m/min)
The 1,500 lb (680 kg) pallet load is small beside the 10,000 lb (4,536 kg) table load of the EC-1600
Tool changes take 6.3 s chip-to-chip
Ships at 30,900 lb and needs 100 psi (6.9 bar) minimum air pressure
30 hp (22.4 kW) is the same spindle rating as the smaller EC-500/50, so the larger frame adds no power

Best For

Large housings, valve bodies and gearbox cases within a 39.4 in (1,000 mm) diameter and height Steel and iron parts needing 50-taper tooling and 340 ft-lbf (460 N·m) Tall tombstones that use the 37 in (940 mm) Y travel Two-pallet production of parts up to 1,500 lb (680 kg) with fixture

Frequently Asked Questions

01 How large and heavy a part can the EC-630 take?

Maximum part diameter and maximum part height are both 39.4 in (1,000 mm), on a 24.8 × 24.8 in (630 × 630 mm) pallet. Maximum pallet load is 1,500 lb (680 kg), fixture included. Travel is 40 in (1,016 mm) in X and Z and 37 in (940 mm) in Y.

02 How does the EC-630 differ from the EC-500/50?

The spindle figures are the same: 30 hp (22.4 kW), 340 ft-lbf (460 N·m) at 700 rpm, 7,500 rpm, 50+1 tools and 710 ipm (18 m/min) rapids. The work envelope is not. The EC-500/50 has 32 × 25 × 28 in (813 × 635 × 711 mm) of travel and 19.69 in (500 mm) pallets rated for 880 lb (400 kg). The EC-630 has 40 × 37 × 40 in (1,016 × 940 × 1,016 mm), 24.8 in (630 mm) pallets and 1,500 lb (680 kg).

03 Should I look at the EC-630 or the EC-1600?

They hold work differently. The EC-630 has two 24.8 in (630 mm) pallets at 1,500 lb (680 kg) each and a 15 s pallet change. The EC-1600 lists a 64 × 36 in (1,626 × 914 mm) table rated for 10,000 lb (4,536 kg) in place of pallet figures, with 64 × 50 × 32 in (1,626 × 1,270 × 813 mm) of travel. Both have a 30 hp (22.4 kW), 7,500 rpm spindle in CT or BT 50. The pallet machine suits repeat work loaded while the other pallet is cut; the EC-1600 suits long or heavy single parts.

04 What tools does the EC-630 hold?

The side-mount tool changer holds 50+1 tools. Maximum tool diameter is 4 in (102 mm) with all pockets full and 7 in (178 mm) with the adjacent pockets empty. Maximum length is 20 in (508 mm) and maximum weight is 30 lb (13.6 kg). Tool-to-tool time is 4.2 s and chip-to-chip is 6.3 s.

05 What are the B-axis figures on the EC-630?

The platter takes 1,500 lb (680 kg). Minimum resolution is 0.001°, indexing accuracy ± 15 arc-sec, repeatability 10 arc-sec and backlash 30 arc-sec. Rotation is 150°/sec, with a quarter turn in 3 s. Rotational torque is 424 ft-lbf (575 N·m) through a 106:1 ratio, and brake torque is 2,500 ft-lbf.

06 What is needed to install an EC-630?

A 220 VAC three-phase supply at 70 A or 440 VAC at 35 A, and 9 scfm of air at 100 psi (255 L/min at 6.9 bar) with 100 psi (6.9 bar) minimum pressure on a 1/2 in line. The machine weighs 30,900 lb. The domestic shipping pallet is 240 × 143.3 × 136 in (610 × 364 × 345 cm) and the export crate 241 × 144 × 139 in (612 × 366 × 353 cm). Coolant capacity is 95 gal (360 L).
