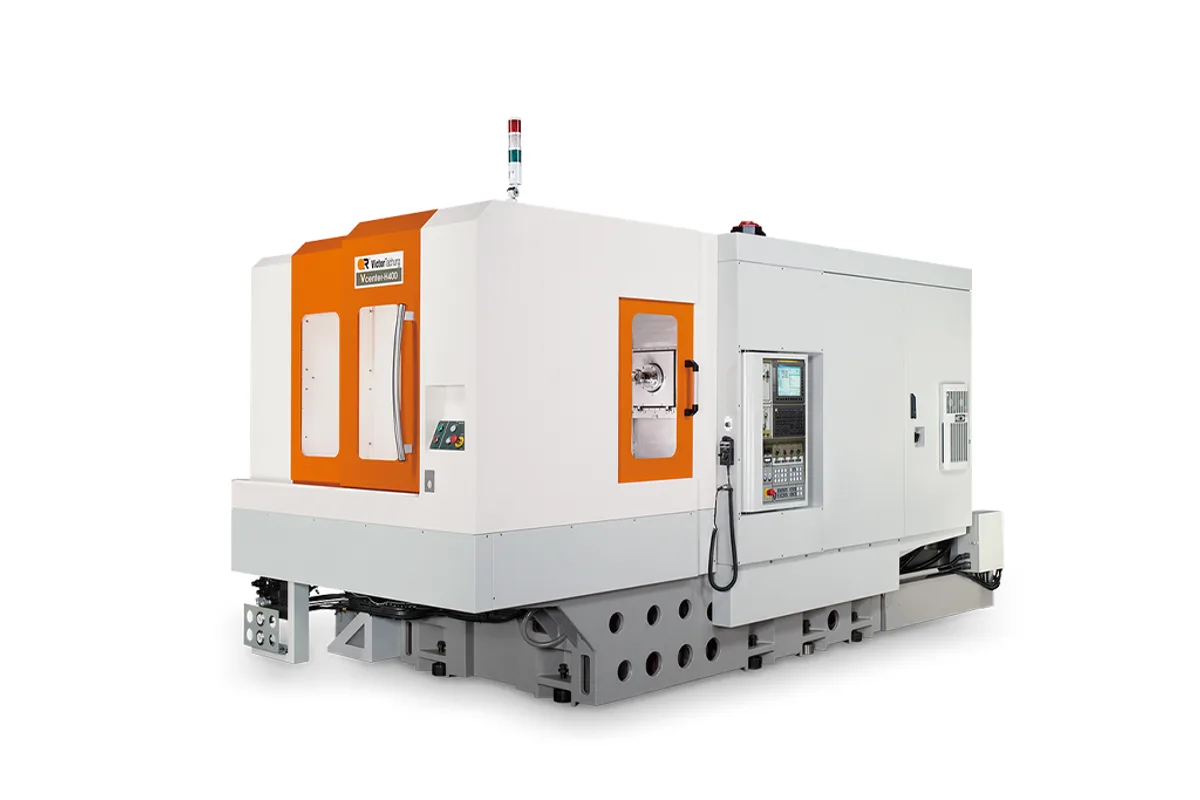

Victor Taichung Vcenter-H400
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-H400 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-H400 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-H400 is the smallest horizontal machining center in the maker's range and the fastest-spinning: 400 x 400 mm (15.74 x 15.74 in) pallets and a 15,000 rpm BBT-40 spindle with a built-in motor. Travels are 500 mm (19.68 in) in X, 600 mm (23.62 in) in Y and 500 mm (19.68 in) in Z.
It is a production machine for small prismatic parts. The motor-spindle is rated 18.5 / 22 kW (25 / 29.5 HP), which is a lot of power for a 400 kg (881.84 lb) pallet, and 60 tools come as standard. A rotary-style pallet changer swaps pallets quickly, and the maker emphasises fast changeover on both the tool changer and the pallet changer.
Sixty tools on a machine this size say something about how it is meant to run. With that many pockets, several different parts can stay set up at once, with their tools resident, and be called by program. Magazines of 90 and 120 tools are options, and so are HSK-A63 tooling and a 20000 rpm spindle.
The structure is a T layout on linear guideways, weighing 11,300 kg (24,912.20 lb). Pallets have M12 tapped holes. One standard item of the larger H machines is missing here: the scroll-type chip removers are listed for every model except this one. The table indexes in 1° steps unless the continuous CNC table is ordered.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 500 mm (19.68 in) |
| Y Axis Travel | 600 mm (23.62 in) |
| Z Axis Travel | 500 mm (19.68 in) |
| Table Size | 400 x 400 mm (15.74 x 15.74 in) |
| Table Surface Configuration | M12 x P1.75 mm |
| Max Table Load | 400 kg (881.84 lb) |
| Spindle Taper | BBT-40 |
| Spindle Motor Power | 18.5 / 22 kW (25 / 29.5 HP) |
| Max Spindle Speed | 15,000 rpm |
| Tool Capacity | 60 |
| Max Tool Weight | 7 kg (15.43 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 11,300 kg (24,912.20 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 15,000 rpm built-in motor-spindle rated 18.5 / 22 kW (25 / 29.5 HP)
- 60-tool magazine as standard, with 90 and 120 optional
- Rotary-style automatic pallet changer
- 600 mm (23.62 in) of Y travel over a 400 mm pallet
- Optional HSK-A63 tooling and 20000 rpm spindle
Limitations
- Pallet load is 400 kg (881.84 lb)
- X and Z travels are 500 mm (19.68 in) each
- Scroll-type chip removers are not standard on this model
- Tools are limited to 7 kg (15.43 lb)
Best For
Frequently Asked Questions
01
400 x 400 mm (15.74 x 15.74 in), with M12 x P1.75 tapped holes and a maximum load of 400 kg (881.84 lb). Pallets are exchanged by a rotary-style automatic pallet changer.
02
A built-in motor-spindle with a BBT-40 taper, 15,000 rpm maximum speed and a rating of 18.5 / 22 kW (25 / 29.5 HP). A 20000 rpm spindle and HSK-A63 tooling are options.
03
60 tools as standard, with a 7 kg (15.43 lb) limit per tool. The H series option list offers 90 and 120 tool magazines.
04
500 mm (19.68 in) in X, 600 mm (23.62 in) in Y and 500 mm (19.68 in) in Z. Listed accuracy is 0.010 mm with a repeatability of 0.007 mm (±0.0035 mm).
