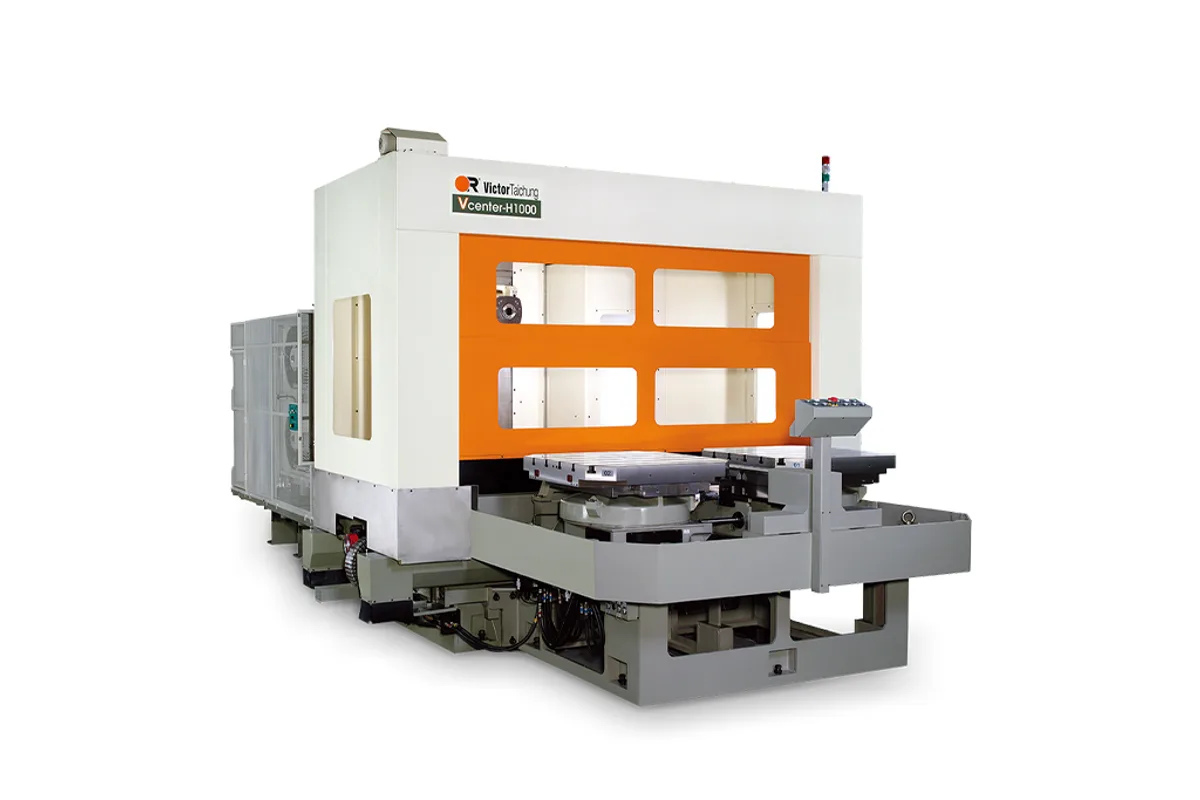

Victor Taichung Vcenter-H1000
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-H1000 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-H1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-H1000 is the largest machining center in the maker's range: a horizontal with 1,000 x 1,000 mm (39.37 x 39.37 in) pallets rated for 2,000 kg (4,409.23 lb), weighing 31,420 kg (69,269.16 lb). Travels are 1,350 mm (53.14 in) in X and 1,050 mm (41.33 in) in both Y and Z.
It is built on the same principles as the Vcenter-H630HD and scaled up. The spindle is a geared BT-50 at 4,500 rpm, here with 18.5 / 22 kW (25 / 29.5 HP). The structure is a reverse T with box slideways and a column that moves along Z. The pallet changer is a parallel type. The maker also notes BT-50 or CT-50 tooling.
Rapid feeds are 20/20/15 m/min (787/787/590 IPM). On a machine that moves this much mass on box ways that is expected, and for the work in question, long cuts in large castings, it has little effect on the cycle.
Ninety tools are standard, each up to 25 kg (55.11 lb). A magazine that size suits parts with many bores of different diameters, such as gearboxes, pump casings and engine blocks, where every bore needs its own roughing and finishing tools. A cube of roughly a metre on each side can be machined on four faces in one clamping. The foundation, the crane and the delivery route need planning before an order of this size.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,350 mm (53.14 in) |
| Y Axis Travel | 1,050 mm (41.33 in) |
| Z Axis Travel | 1,050 mm (41.33 in) |
| Table Size | 1,000 x 1,000 mm (39.37 x 39.37 in) |
| Table Surface Configuration | M16 x P2.0 mm |
| Max Table Load | 2,000 kg (4,409.23 lb) |
| Spindle Taper | BT-50 |
| Spindle Motor Power | 18.5 / 22 kW (25 / 29.5 HP) |
| Max Spindle Speed | 4,500 rpm |
| Tool Capacity | 90 |
| Max Tool Weight | 25 kg (55.11 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 31,420 kg (69,269.16 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,000 x 1,000 mm (39.37 x 39.37 in) pallets rated for 2,000 kg (4,409.23 lb)
- 1,350 mm (53.14 in) of X travel and 1,050 mm (41.33 in) in Y and Z
- 90-tool magazine as standard, tools up to 25 kg (55.11 lb)
- Geared BT-50 spindle with 18.5 / 22 kW (25 / 29.5 HP)
- Reverse T structure with box slideways
Limitations
- Spindle speed is limited to 4,500 rpm
- Rapid feeds are 20/20/15 m/min
- 31,420 kg (69,269.16 lb) of machine needs a dedicated foundation
- Continuous table indexing is an option
Best For
Frequently Asked Questions
01
1,000 x 1,000 mm (39.37 x 39.37 in), with M16 x P2.0 tapped holes and a load limit of 2,000 kg (4,409.23 lb). Pallets are exchanged by a parallel-type automatic pallet changer.
02
1,350 mm (53.14 in) in X, 1,050 mm (41.33 in) in Y and 1,050 mm (41.33 in) in Z. The maker gives rapid feeds of 20/20/15 m/min (787/787/590 IPM).
03
A geared BT-50 spindle with a maximum speed of 4,500 rpm and a motor rated 18.5 / 22 kW (25 / 29.5 HP). Victor Taichung lists BT-50 or CT-50 tooling for it.
04
90 tools as standard, each weighing up to 25 kg (55.11 lb). A 120 tool magazine appears on the H series option list.
More from Victor Taichung
Other Horizontal Machining Centers (HMC)
LiCON LiFLEX I 17136
Kitamura Mycenter-HX1250G

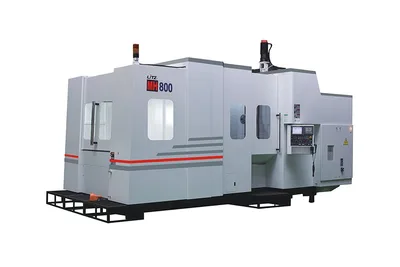

Litz MH-800A

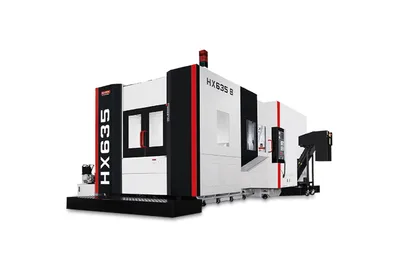

Quaser HX635
