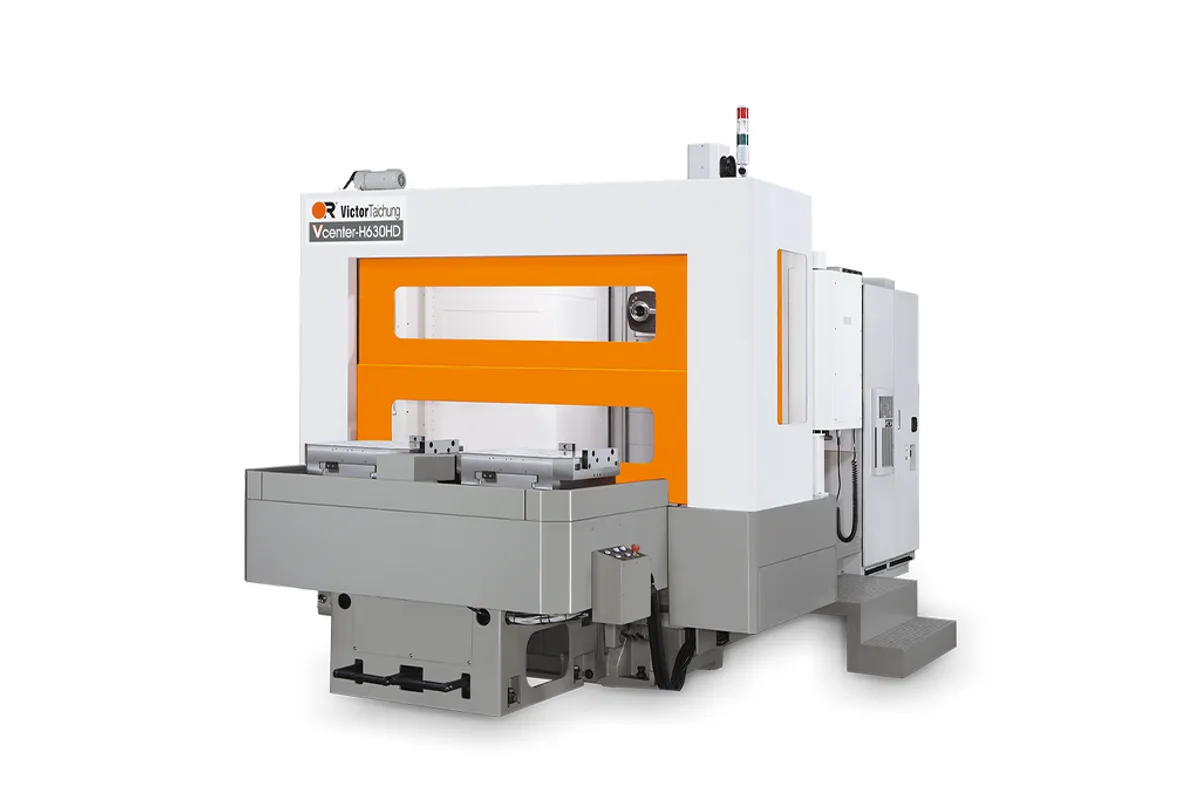

Victor Taichung Vcenter-H630HD
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-H630HD cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-H630HD that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-H630HD is the heavy-duty horizontal machining center on 630 mm pallets: a geared BT-50 spindle at 4,500 rpm, box slideways, and a column that moves along Z. Travels are 900 mm (35.43 in), 800 mm (31.49 in) and 710 mm (27.95 in), and the pallet load is 1,200 kg (2,645.54 lb).
The maker's list of features is a list of ways to keep a cut steady. Heavy cutting at low rpm with high torque. A reverse T structure with box slideways. A spindle with a gearbox. Heavy face and end milling capability. Nothing in it is about speed, and the 4,500 rpm limit confirms that.
Compared with the Vcenter-H630HS on the same pallet, the HD has a smaller motor, 15 / 18.5 kW (20 / 25 HP), but puts it through gears, so torque at face-mill speeds is the measure and not kilowatts. It also takes heavier tools, up to 25 kg (55.11 lb), which covers large boring bars and cartridge mills. Sixty tools are standard.
The pallet changer is a parallel type, not the rotary type of the high-speed machines. The pallet is 630 x 630 mm (24.8 x 24.8 in) with M16 tapped holes. Weight is 18,000 kg (39,683.15 lb). Steel forgings, ductile iron castings and welded frames are the parts the specification is written for.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 900 mm (35.43 in) |
| Y Axis Travel | 800 mm (31.49 in) |
| Z Axis Travel | 710 mm (27.95 in) |
| Table Size | 630 x 630 mm (24.8 x 24.8 in) |
| Table Surface Configuration | M16 x P2.0 mm |
| Max Table Load | 1,200 kg (2,645.54 lb) |
| Spindle Taper | BT-50 |
| Spindle Motor Power | 15 / 18.5 kW (20 / 25 HP) |
| Max Spindle Speed | 4,500 rpm |
| Tool Capacity | 60 |
| Max Tool Weight | 25 kg (55.11 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 18,000 kg (39,683.15 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Geared BT-50 spindle for heavy cutting at low rpm
- Reverse T structure with box slideways
- Tools up to 25 kg (55.11 lb), 60 in the magazine
- 1,200 kg (2,645.54 lb) pallet loading
- Heavy face and end milling capability, per the maker
Limitations
- Maximum spindle speed is 4,500 rpm
- Motor rating of 15 / 18.5 kW (20 / 25 HP) is below the Vcenter-H630HS
- Z travel of 710 mm (27.95 in) is shorter than on the HS version
- Box slideways limit traverse speed
Best For
Frequently Asked Questions
01
Victor Taichung lists a spindle with gearbox for heavy cutting at low rpm with high torque, a reverse T structure with box slideways and a column moving along Z. Maximum spindle speed is 4,500 rpm.
02
900 mm (35.43 in) in X, 800 mm (31.49 in) in Y and 710 mm (27.95 in) in Z, around a 630 x 630 mm (24.8 x 24.8 in) pallet.
03
BT-50 tools of up to 25 kg (55.11 lb), 60 of them in the standard magazine. Larger magazines of 90 and 120 tools are on the H series option list.
04
1,200 kg (2,645.54 lb), which the maker describes as high pallet loading. The pallets are exchanged by a parallel-type automatic pallet changer.
