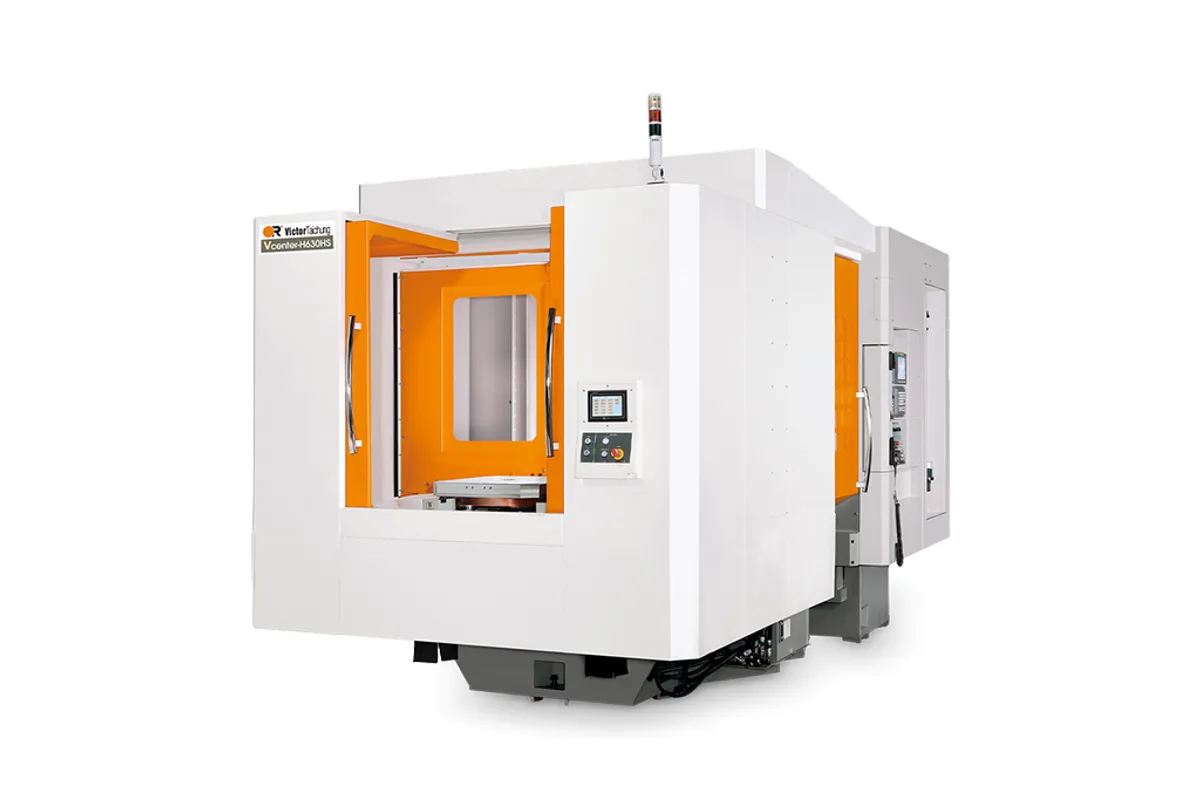

Victor Taichung Vcenter-H630HS
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-H630HS cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-H630HS that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-H630HS is a 630 mm pallet horizontal machining center with the most powerful spindle the maker lists: a BT-50 built-in motor-spindle at 10,000 rpm with 25 / 30 kW (33.5 / 40 HP). Travels are 1,000 mm (39.37 in) in X, 850 mm (33.46 in) in Y and 900 mm (35.43 in) in Z.
A 50-taper spindle at 10,000 rpm is an unusual pairing, and it defines the machine. It can swing a large face mill in cast iron and then run fast enough for efficient aluminium work with big cutters. Shops that machine both materials on the same pallets get one spindle for both, where the alternative is a geared head that tops out at half the speed or less.
The envelope is large for the pallet. The 630 x 630 mm (24.8 x 24.8 in) pallet sits inside a metre of X travel and 900 mm (35.43 in) of Z, so tall tombstones and long boring bars have room. Pallet load is 1,200 kg (2,645.54 lb). Sixty tools are standard, each up to 20 kg (44.09 lb), and 90 or 120 are options.
Victor Taichung lists a rotary-style pallet changer and oversized linear guideways for the model. Weight is 18,850 kg (41,557.08 lb). The table indexes in 1° steps as standard, and a CNC table with continuous indexing is optional.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,000 mm (39.37 in) |
| Y Axis Travel | 850 mm (33.46 in) |
| Z Axis Travel | 900 mm (35.43 in) |
| Table Size | 630 x 630 mm (24.8 x 24.8 in) |
| Table Surface Configuration | M16 x P2.0 mm |
| Max Table Load | 1,200 kg (2,645.54 lb) |
| Spindle Taper | BT-50 |
| Spindle Motor Power | 25 / 30 kW (33.5 / 40 HP) |
| Max Spindle Speed | 10,000 rpm |
| Tool Capacity | 60 |
| Max Tool Weight | 20 kg (44.09 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 18,850 kg (41,557.08 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- BT-50 motor-spindle at 10,000 rpm with 25 / 30 kW (33.5 / 40 HP)
- 1,000 x 850 x 900 mm class travels around a 630 mm pallet
- 1,200 kg (2,645.54 lb) pallet load
- 60 tools as standard, each up to 20 kg (44.09 lb)
- Rotary-style pallet changer and oversized linear guideways
Limitations
- No gearbox, so low-speed torque depends on the motor alone
- 18,850 kg (41,557.08 lb) of machine to site
- Continuous table indexing is an option
- Coolant through the spindle is an option
Best For
Frequently Asked Questions
01
A built-in motor-spindle with a BT-50 taper, a maximum speed of 10,000 rpm and a rating of 25 / 30 kW (33.5 / 40 HP). It takes tools of up to 20 kg (44.09 lb).
02
The Vcenter-H630HS has a 10,000 rpm motor-spindle with 25 / 30 kW (33.5 / 40 HP) on linear guideways. The Vcenter-H630HD has a geared 4,500 rpm spindle with 15 / 18.5 kW (20 / 25 HP) on box slideways. Both carry 1,200 kg (2,645.54 lb) on 630 mm pallets.
03
1,000 mm (39.37 in) in X, 850 mm (33.46 in) in Y and 900 mm (35.43 in) in Z. The pallet is 630 x 630 mm (24.8 x 24.8 in) with M16 x P2.0 tapped holes.
04
60 tools as standard, with a maximum tool weight of 20 kg (44.09 lb). The H series option list names 90 and 120 tool magazines.
More from Victor Taichung
Other Horizontal Machining Centers (HMC)
LiCON LiFLEX IV 366

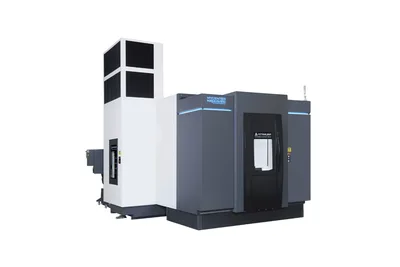

Kitamura Mycenter-HX630G #40
