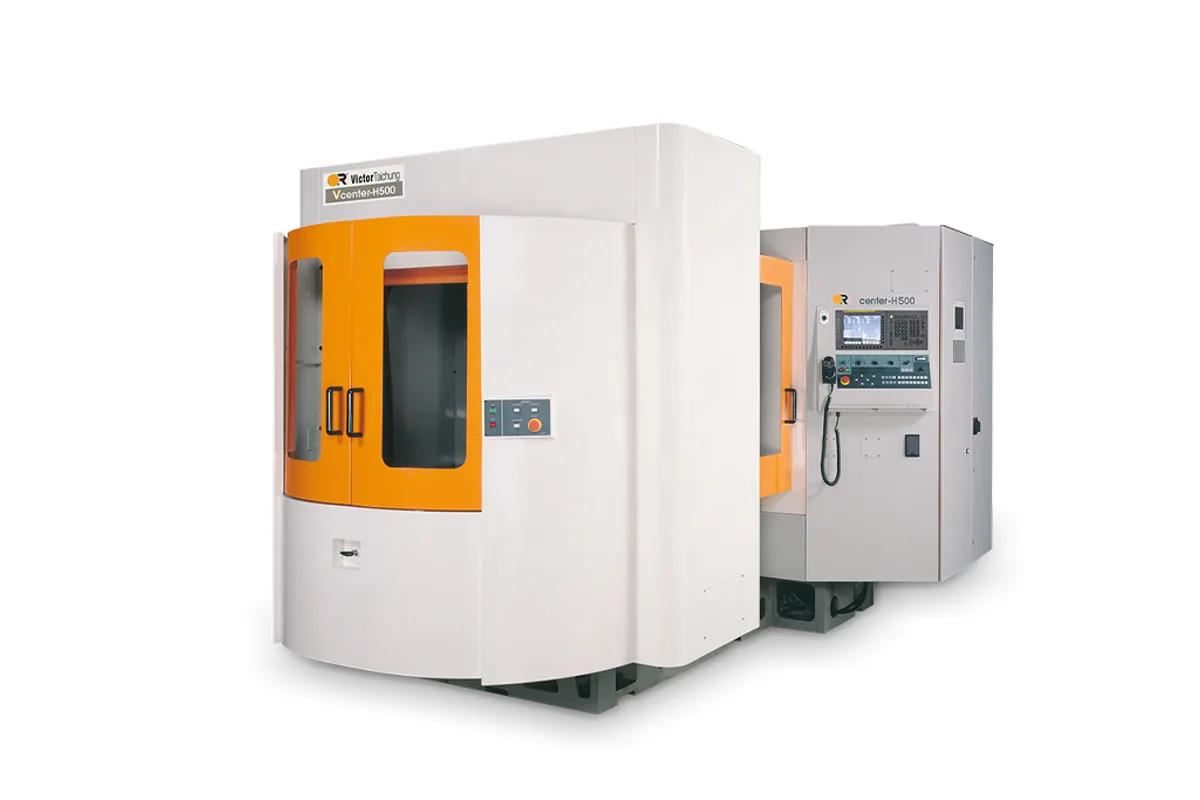

Victor Taichung Vcenter-H500
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-H500 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-H500 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-H500 is a 50-taper horizontal machining center on 500 x 500 mm (19.68 x 19.68 in) pallets. Its BT-50 spindle is limited to 6,000 rpm with 11 / 15 kW (15 / 20 HP), and the travels are 720 mm (28.34 in) in X, 650 mm (25.59 in) in Y and 720 mm (28.34 in) in Z.
It is the cutting-torque half of a pair. The Vcenter-H500HS shares the frame, the travels, the 800 kg (1,763.69 lb) pallet load and even the 12,500 kg (27,557.74 lb) weight, but carries a fast 40-taper spindle. This model takes the bigger tool: a 50-taper shank and tools of up to 20 kg (44.09 lb), where the Vcenter-H500HS stops at 7 kg.
That makes the choice a matter of material and cutter size. Cast-iron housings, steel blocks and anything that wants a large face mill, a long boring bar or a big tap belong on the BT-50 spindle at low speed. The motor is not large, so the advantage is in tool stiffness and reach more than in metal removal by sheer power.
Forty tools are standard and 60, 90 or 120 are options. An automatic pallet changer, a 1° indexing table, scroll-type chip removers and a chip conveyor with cart are on the standard list. Victor Taichung says the design emphasis was on continuous cutting with minimal downtime.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 720 mm (28.34 in) |
| Y Axis Travel | 650 mm (25.59 in) |
| Z Axis Travel | 720 mm (28.34 in) |
| Table Size | 500 x 500 mm (19.68 x 19.68 in) |
| Table Surface Configuration | M16 x P2.0 mm |
| Max Table Load | 800 kg (1,763.69 lb) |
| Spindle Taper | BT-50 |
| Spindle Motor Power | 11 / 15 kW (15 / 20 HP) |
| Max Spindle Speed | 6,000 rpm |
| Tool Capacity | 40 |
| Max Tool Weight | 20 kg (44.09 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 12,500 kg (27,557.74 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- BT-50 spindle taking tools up to 20 kg (44.09 lb)
- 800 kg (1,763.69 lb) pallet load on 500 x 500 mm (19.68 x 19.68 in) pallets
- 720 mm (28.34 in) of X and Z travel
- Automatic pallet changer and scroll-type chip removers are standard
- Magazine options up to 120 tools
Limitations
- Spindle speed is limited to 6,000 rpm
- Motor is 11 / 15 kW (15 / 20 HP), the smallest in the H series
- Only 40 tools as standard
- Table indexes in 1° steps unless the CNC table is ordered
Best For
Frequently Asked Questions
01
The spindle. The Vcenter-H500 has a BT-50 spindle at 6,000 rpm with 11 / 15 kW (15 / 20 HP) and 20 kg (44.09 lb) tools. The Vcenter-H500HS has a BT-40 spindle at 15,000 rpm with 18.5 / 22 kW (25 / 29.5 HP) and 7 kg (15.43 lb) tools.
02
720 mm (28.34 in) in X, 650 mm (25.59 in) in Y and 720 mm (28.34 in) in Z, around a 500 x 500 mm (19.68 x 19.68 in) pallet with M16 x P2.0 tapped holes.
03
800 kg (1,763.69 lb), fixture included. The machine weighs 12,500 kg (27,557.74 lb), and an automatic pallet changer is part of the standard equipment.
04
40 tools as standard, with a maximum tool weight of 20 kg (44.09 lb). Magazines for 60, 90 or 120 tools are on the H series option list.
