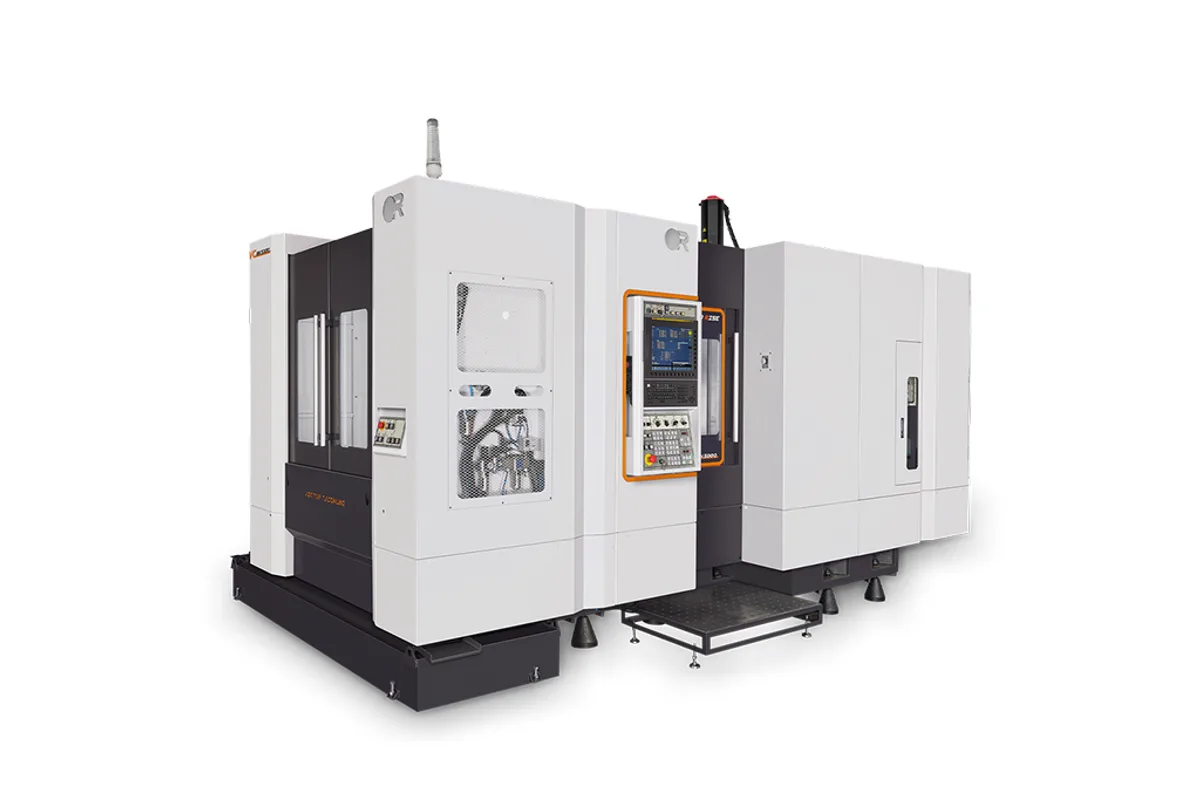

Victor Taichung Vcenter-NH5000
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-NH5000 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-NH5000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

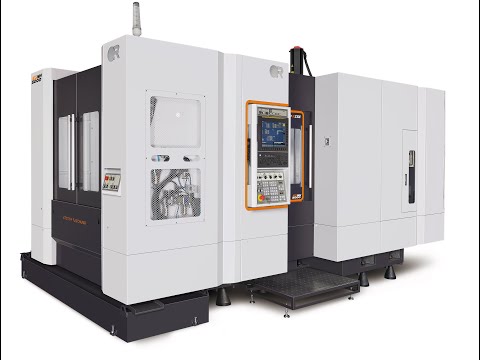

The Victor Taichung Vcenter-NH5000 is a 500 mm pallet horizontal machining center with a fast 40-taper spindle. Travels are 800 mm (31.49 in) in X, 700 mm (27.55 in) in Y and 800 mm (31.49 in) in Z, the pallets are 500 x 500 mm (19.68 x 19.68 in), and the BBT-40 spindle runs to 12,000 rpm with 15 / 18.5 kW (20 / 25 HP).
The maker presents it as its new-generation horizontal, and the feature list is that of a light, quick production machine. The spindle is directly coupled. Rapid feeds are 48/48/48 m/min on roller-type linear guideways with grease lubrication. An automatic pallet changer, a table shower and a chip conveyor with cart are standard.
Travel is generous for the pallet. An X and Z of 800 mm (31.49 in) around a 500 mm pallet leaves room for a tombstone with parts on every face and for long tools reaching into it. The pallet load is the limit to watch: 500 kg (1,102.30 lb) has to cover the fixture as well as the parts. Tools may weigh up to 7 kg (15.43 lb).
Forty tools are standard, with 60 or 90 as options, and a 15000 rpm spindle can be ordered. The table indexes in 1° steps as delivered; a continuous CNC table is optional. Pallets have M16 tapped holes, with a T-slot pallet as an alternative. The machine weighs 13,000 kg (28,660.05 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 800 mm (31.49 in) |
| Y Axis Travel | 700 mm (27.55 in) |
| Z Axis Travel | 800 mm (31.49 in) |
| Table Size | 500 x 500 mm (19.68 x 19.68 in) |
| Table Surface Configuration | M16 x P2.0 mm |
| Max Table Load | 500 kg (1,102.30 lb) |
| Spindle Taper | BBT-40 |
| Spindle Motor Power | 15 / 18.5 kW (20 / 25 HP) |
| Max Spindle Speed | 12,000 rpm |
| Tool Capacity | 40 |
| Max Tool Weight | 7 kg (15.43 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 13,000 kg (28,660.05 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Rapid feeds of 48/48/48 m/min (X/Y/Z)
- Directly coupled 12,000 rpm BBT-40 spindle
- 800 mm (31.49 in) of X and Z travel around a 500 x 500 mm (19.68 x 19.68 in) pallet
- Automatic pallet changer, table shower and chip conveyor are standard
- Magazine options of 60 or 90 tools
Limitations
- Pallet load is 500 kg (1,102.30 lb)
- 40-taper spindle with a 7 kg (15.43 lb) tool limit
- Standard table indexes in 1° steps; continuous indexing is optional
- 40 tools as standard is tight for tombstone work
Best For
Frequently Asked Questions
01
800 mm (31.49 in) in X, 700 mm (27.55 in) in Y and 800 mm (31.49 in) in Z. Victor Taichung quotes rapid feeds of 48/48/48 m/min in the three axes.
02
500 x 500 mm (19.68 x 19.68 in) pallets with M16 x P2.0 tapped holes and a 500 kg (1,102.30 lb) load limit. A T-slot pallet and a hydraulic interface on the pallet are options.
03
A directly coupled BBT-40 spindle at 12,000 rpm with a motor rated 15 / 18.5 kW (20 / 25 HP). A 15000 rpm spindle is on the option list.
04
40 tools as standard, each up to 7 kg (15.43 lb). The option list for this model offers a 60 or 90 tool magazine.
