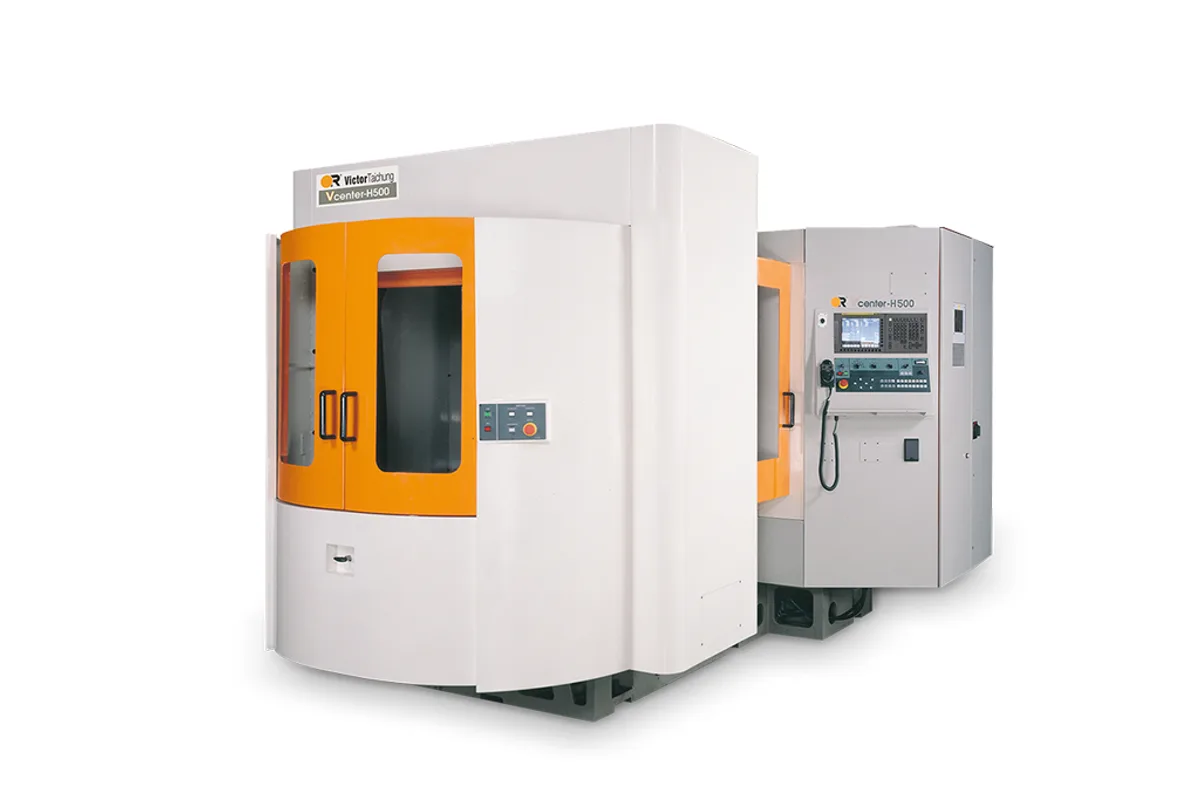

Victor Taichung Vcenter-H500HS
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-H500HS cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-H500HS that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-H500HS is the high-speed version of the maker's 500 mm pallet horizontal machining center. Its BT-40 spindle runs to 15,000 rpm with 18.5 / 22 kW (25 / 29.5 HP). Travels are 720 mm (28.34 in), 650 mm (25.59 in) and 720 mm (28.34 in), and each pallet carries 800 kg (1,763.69 lb).
An 800 kg pallet under a 40-taper spindle is the notable combination. Light-alloy parts are often held in heavy hydraulic fixtures or stacked many to a tombstone, and the load rating here allows for that, where the Vcenter-NH5000 on the same pallet size stops at 500 kg (1,102.30 lb). The NH model answers with longer X and Z travels.
Against the standard Vcenter-H500, this machine has the stronger motor and two and a half times the speed, and gives up the 50-taper tool. Tools are limited to 7 kg (15.43 lb). The frame is the same, at 12,500 kg (27,557.74 lb).
The option list goes further in the same direction with HSK-A63 tooling and a 20000 rpm spindle, and a hydraulic interface on the pallet changer for clamping fixtures. Forty tools are standard; 60, 90 and 120 are available. Pallets are 500 x 500 mm (19.68 x 19.68 in) with M16 tapped holes, and the table indexes in 1° steps as standard.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 720 mm (28.34 in) |
| Y Axis Travel | 650 mm (25.59 in) |
| Z Axis Travel | 720 mm (28.34 in) |
| Table Size | 500 x 500 mm (19.68 x 19.68 in) |
| Table Surface Configuration | M16 x P2.0 mm |
| Max Table Load | 800 kg (1,763.69 lb) |
| Spindle Taper | BT-40 |
| Spindle Motor Power | 18.5 / 22 kW (25 / 29.5 HP) |
| Max Spindle Speed | 15,000 rpm |
| Tool Capacity | 40 |
| Max Tool Weight | 7 kg (15.43 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 12,500 kg (27,557.74 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 15,000 rpm spindle with 18.5 / 22 kW (25 / 29.5 HP)
- 800 kg (1,763.69 lb) pallet load for heavy fixtures
- Optional HSK-A63 tooling and 20000 rpm spindle
- Hydraulic interface on the pallet changer is available
- Same travels as the 50-taper Vcenter-H500
Limitations
- BT-40 taper with a 7 kg (15.43 lb) tool limit
- 40-tool magazine as standard
- Y travel of 650 mm (25.59 in) is the shortest axis
- Coolant through the spindle is an option
Best For
Frequently Asked Questions
01
A BT-40 spindle with a maximum speed of 15,000 rpm and a motor rated 18.5 / 22 kW (25 / 29.5 HP). HSK-A63 tooling and a 20000 rpm spindle are listed as options for this model.
02
Both use 500 x 500 mm (19.68 x 19.68 in) pallets and 40-taper spindles. The Vcenter-H500HS carries 800 kg (1,763.69 lb) and runs to 15,000 rpm. The Vcenter-NH5000 carries 500 kg (1,102.30 lb), runs to 12,000 rpm and has 800 mm (31.49 in) of X and Z travel.
03
720 mm (28.34 in) in X, 650 mm (25.59 in) in Y and 720 mm (28.34 in) in Z. Listed accuracy is 0.010 mm and repeatability is 0.007 mm (±0.0035 mm).
04
40 tools as standard, each up to 7 kg (15.43 lb). The H series option list offers magazines for 60, 90 and 120 tools.
