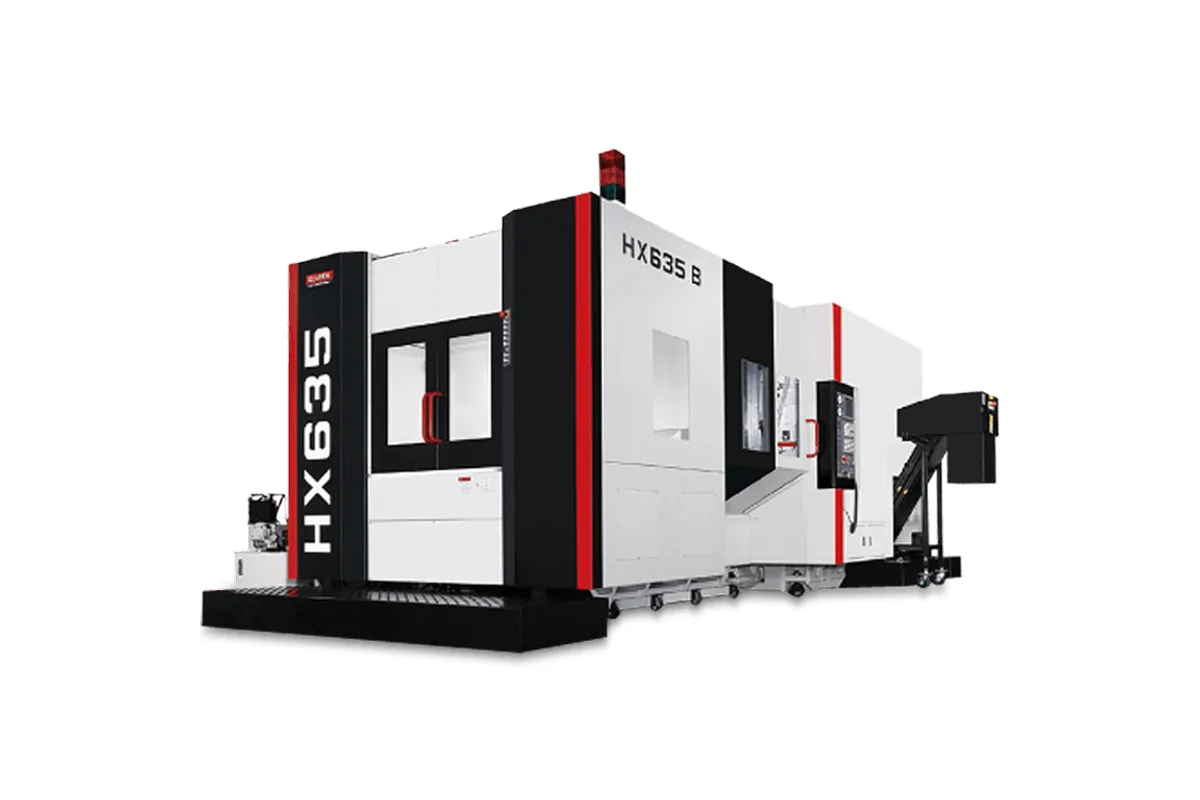

Quaser HX635
Image: quaser.com, Quaser
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
pallet size
max work swing diameter
x axis travel
How much does the Quaser HX635 cost?
Price estimate
We do not have a price for the Quaser HX635 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Quaser HX635 is where the HX horizontal line changes to a 50 taper spindle. It has a 630 mm (24.8") square pallet, a pallet load of 900 kg (1,984 lbs) and travels of 1,000 mm (39.4") in X, 800 mm (31.5") in Y and 900 mm (35.4") in Z.
Quaser builds the argument for this machine on its castings. The base is a one-piece T shape, the column moves, and the table is a one-piece design. The maker's claim is lower deformation and better overhang behavior than a base assembled from several pieces. Whatever weight you give that, the layout fits the job: a moving-column horizontal keeps a heavy pallet on a short, stiff path while the lighter element travels.
The spindle is listed at 6K ~ 10K. No horizontal in Quaser's current range has a lower top end, and it pairs with large tools: 110 mm (4.3") in diameter with every pot occupied, 220 mm (8.7") with the neighbors empty, and 500 mm (19.7") long. This is a machine for boring, heavy face milling and big drills in castings and forgings, not for high-speed finishing.
The standard magazine has 40 positions, fewer than the 60 of the smaller HX504. Maximum work swing is Ø950 mm (Ø37.4"). Two pallets change by an arm type mechanism, and the B axis minimum indexing is given as 1 / 0.001 degrees.
Full Specifications
| Parameter | Value |
|---|---|
| Pallet Size | □630 mm (24.8") |
| Max Work Swing Diameter | Ø950 mm (Ø37.4") |
| X Axis Travel | 1,000 mm (39.4") |
| Y Axis Travel | 800 mm (31.5") |
| Z Axis Travel | 900 mm (35.4") |
| B Axis Min Indexing Degree | 1 / 0.001 |
| Max Table Load | 900 kg (1,984 lbs) |
| Number of Pallets | 2 |
| Pallet Changer Type | Arm type |
| Spindle Taper | 50 taper |
| Max Spindle Speed | 6K ~ 10K |
| Tool Capacity | 40 (std.) |
| Max Tool Diameter (full magazine) | 110 mm (4.3") |
| Max Tool Diameter Neighbor Pots Empty | 220 mm (8.7") |
| Max Tool Length | 500 mm (19.7") |
Specifications sourced from quaser.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 50 taper spindle with tools up to 220 mm (8.7") in diameter and 500 mm (19.7") long
- 900 kg (1,984 lbs) pallet load on a 630 mm (24.8") pallet
- One-piece T shape base, moving column and one-piece table, per Quaser
- 1,000 mm (39.4") of X travel and 900 mm (35.4") of Z
- Ø950 mm (Ø37.4") maximum work swing diameter
Limitations
- Spindle speed is listed at 6K ~ 10K, which rules out high-speed aluminium work
- 40 tools as standard, fewer than the 60 on the HX504 and HX805
- Quaser publishes no torque or power for the 50 taper spindle
- With all pots occupied, tool diameter is limited to 110 mm (4.3")
Best For
Frequently Asked Questions
01
The pallet is 630 mm (24.8") square with a load capacity of 900 kg (1,984 lbs). The maximum work swing diameter is Ø950 mm (Ø37.4"). The machine has 2 pallets and an arm type pallet changer.
02
1,000 mm (39.4") in X, 800 mm (31.5") in Y and 900 mm (35.4") in Z. The B axis minimum indexing is listed as 1 / 0.001 degrees.
03
It is a 50 taper machine, with a maximum spindle speed listed as 6K ~ 10K. The smaller HX504 is the largest 40 taper model in the standard HX range, with a spindle listed at 8K ~ 15K.
04
The HX805 is the next size up: an 800 mm (31.5") pallet rated for 1,500 kg (3,307 lbs), with travels of 1,200 mm (47.2"), 1,000 mm (39.4") and 1,000 mm (39.4"). The HX635 has a 630 mm (24.8") pallet rated for 900 kg (1,984 lbs). Quaser describes the same one-piece T shape base for both.
05
Up to 110 mm (4.3") in diameter with adjacent pots filled, up to 220 mm (8.7") with neighboring pots empty, and up to 500 mm (19.7") long. The magazine holds 40 tools as standard.
