Litz MH-800A

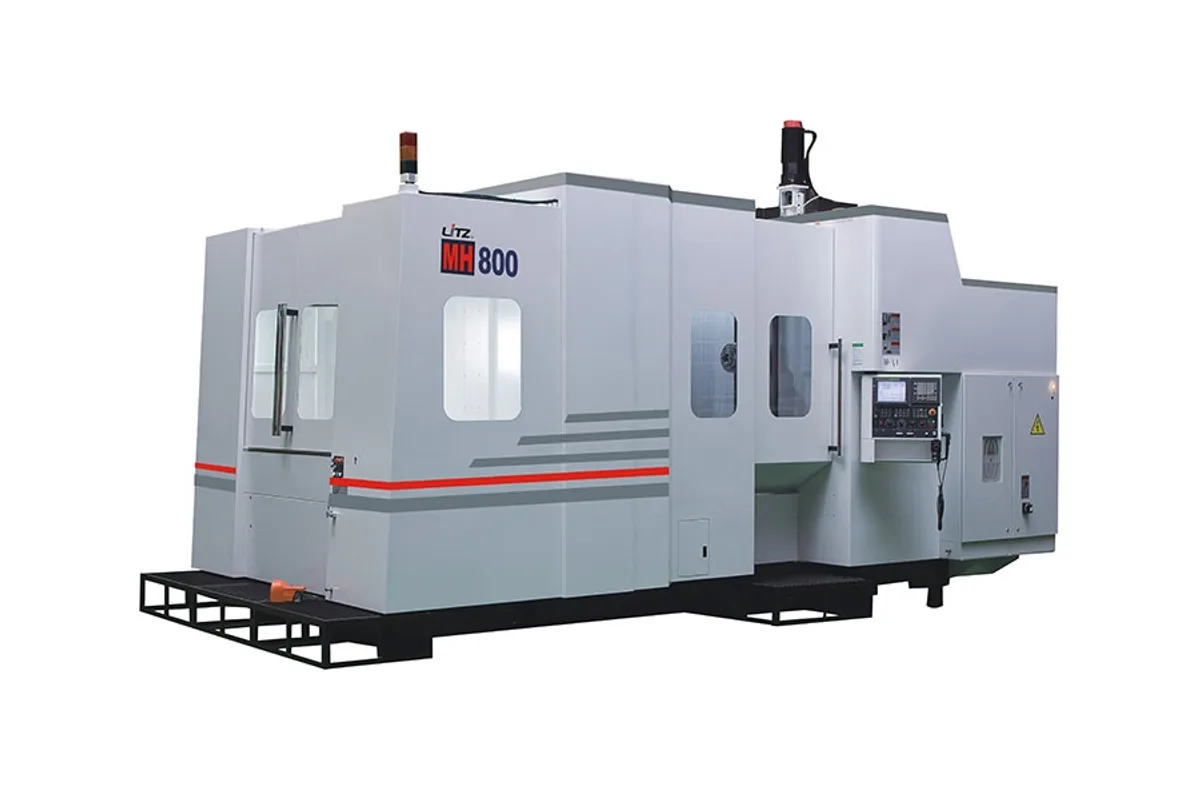

Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Spindle Power
Max Workpiece ⌀
x axis travel
How much does the Litz MH-800A cost?
Price estimate
We do not have a price for the Litz MH-800A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz MH-800A belongs to the MH series, which Litz calls its upsized model. It mounts 800 x 800 mm (31.5 x 31.5 in) pallets on a machine with travels of 1,000 mm (39.4 in), 850 mm (33.5 in) and 950 mm (37.4 in) in X, Y and Z, and a No.40 taper spindle at 10,000 rpm.
Upsized describes the pallet. The travels, the 1,000 kg (2,205 lb) pallet load and the 1,000 mm (39.4 in) maximum workpiece diameter equal those of the LH-630A, which has 630 mm pallets. What the MH-800A adds is a bigger mounting face, so larger fixture plates and wider tombstones can be bolted down without overhanging the pallet edge.
That is useful for a specific buyer: one whose parts or fixtures are bulky but not heavy, and who would otherwise have to step up to a much larger and slower 800 mm machine. Because the work zone is unchanged, tall fixtures near the pallet corners should be checked against the 60 to 910 mm (2.4 to 35.8 in) spindle centre to pallet face range.
The spindle has 165 Nm (122 lb-ft) of torque and a 22 / 26 kW (29.5 / 34.9 hp) motor. Tool shank is ISO 40 or NBT-40. The magazine holds 60 tools up to 450 mm (17.7 in) long and 8 kg (18 lb), with a 5 s change. Pallet change takes 18 s and rapids are 32,000 mm/min (1,260 ipm). Weight is 23,000 kg (50,705 lb). The table names FANUC 0i-MD as the control.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,000 mm (39.4 in) |
| Y Axis Travel | 850 mm (33.5 in) |
| Z Axis Travel | 950 mm (37.4 in) |
| Spindle Center to Pallet Face | 60 to 910 mm (2.4 to 35.8 in) |
| Pallet Size | 800 x 800 mm (31.5 x 31.5 in) |
| Max Workpiece Diameter | 1,000 mm (39.4 in) diameter |
| Max Pallet Load | 1,000 kg (2,205 lb) |
| Max Workpiece Height | 1,000 mm (39.4 in) |
| Pallet Indexing | 1° |
| Max Spindle Speed | 10,000 rpm |
| Spindle Torque | 165 Nm (122 lb-ft) |
| Spindle Taper | 7/24 Taper,NO.40 |
| Spindle Bearing Inner Diameter | 70 mm (2.8 in) |
| Spindle Transmission | Direct (Belt Type+ZF) |
| Rapid Traverse Xyz | 32,000 mm/min (1,260 ipm) |
| Cutting Feed Rate | 1-10,000 mm/min (up to 394 ipm) |
| Tool Shank | ISO 40 or NBT- 40 |
| Tool Capacity | 60 |
| Max Tool Diameter (full magazine) | 80 mm (3.1 in); 160 mm (6.3 in) without adjacent tool |
| Max Tool Length | 450 mm (17.7 in) |
| Max Tool Weight | 8 kg (18 lb) |
| Tool Change Time | 5 s (tool to tool) |
| Tool Selection Method | fixed Address |
| Pallets | 2 |
| Pallet Change Type | Rotary Type |
| Pallet Change Time | 18 s |
| CNC Control | FANUC 0i-MD |
| Spindle Motor Power | 22 / 26 kW (29.5 / 34.9 hp) |
| Spindle Motor Torque | 165 Nm (122 lb-ft) |
| Axis Motors Xyzb | 7 / 7 / 7 / 3 kW |
| Hydraulic Pump Motor | 2.2 kW |
| Coolant Pump Motor | 1.6 kW |
| Power Requirement | 42 kVA |
| Hydraulic Tank Capacity | 60 L |
| Lubrication Tank Capacity | 4 L |
| Coolant Tank Capacity | 800 L |
| Machine Height | 3,362 mm (132.4 in) |
| Floor Area | 5,966 x 3,470 mm (234.9 x 136.6 in) |
| Machine Weight | 23,000 kg (50,705 lb) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 800 x 800 mm (31.5 x 31.5 in) pallets on a 1,000 x 850 x 950 mm work zone
- 10,000 rpm No.40 spindle with 165 Nm (122 lb-ft) and a 22 / 26 kW (29.5 / 34.9 hp) motor
- 60 tools with a 5 s tool-to-tool change
- 32,000 mm/min (1,260 ipm) rapids and an 18 s pallet change
Limitations
- Pallet load is 1,000 kg (2,205 lb), no more than the smaller-pallet LH-630A
- Maximum workpiece diameter stays at 1,000 mm (39.4 in)
- Tools limited to 8 kg (18 lb)
- The table and the accessory list name different FANUC controls
Best For
Frequently Asked Questions
01
Litz labels the MH series its upsized model. The MH-800A has 800 x 800 mm (31.5 x 31.5 in) pallets, while its travels of 1,000 x 850 x 950 mm and its 1,000 kg (2,205 lb) pallet load match the LH-630A, which has 630 mm pallets.
02
A 7/24 No.40 taper spindle at 10,000 rpm with 165 Nm (122 lb-ft) of maximum torque and a 22 / 26 kW (29.5 / 34.9 hp) motor. The accessory list marks direct transmission, spindle oil cooling and an air seal system as standard.
03
Sixty tools with ISO 40 or NBT-40 shanks. Each can be up to 450 mm (17.7 in) long and 8 kg (18 lb), with a diameter of 80 mm (3.1 in), or 160 mm (6.3 in) without adjacent tools.
04
Floor area is 5,966 x 3,470 mm (234.9 x 136.6 in), height 3,362 mm (132.4 in) and weight 23,000 kg (50,705 lb). The power requirement is 42 kVA and the coolant tank holds 800 L.
