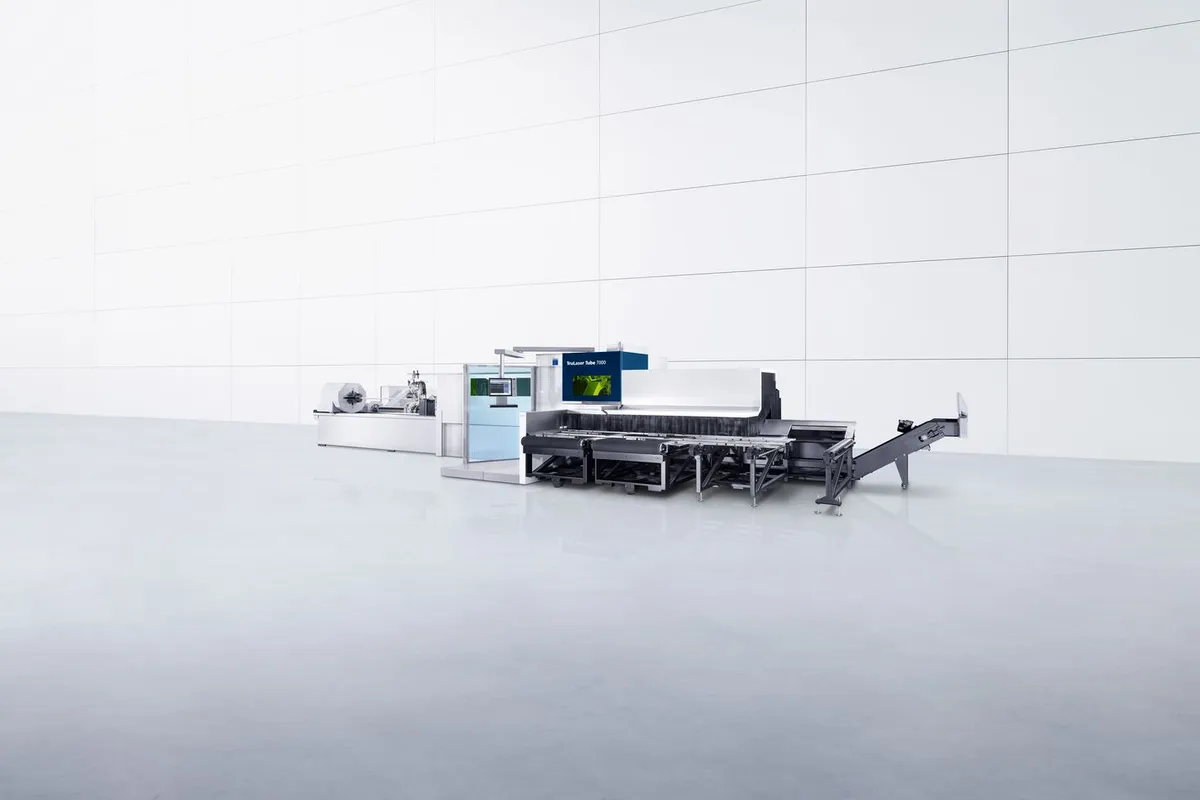

Trumpf TruLaser Tube 7000 Fiber

$600,000 - $800,000 (new, 4 kW); $750,000 - $1,000,000 (6 kW with LoadMaster 12.5 m) Updated 2025-03-15

Key Specifications

max tube diameter round

254 mm (10 in)

max profile side length

220 mm; 254 mm outer circle diameter

max raw material length

6,500 mm / 9,200 mm / 12,500 mm (depending on LoadMaster)

finished part length

4,500 - 8,000 mm (depending on unloading configuration)

max material weight per meter

40 kg/m

max auto load weight

260 kg (LoadMaster 6.5) / 368 kg (LoadMaster 12.5)

Overview

The Trumpf TruLaser Tube 7000 Fiber is the flagship of Trumpf's tube and profile laser cutting lineup, designed for the largest and heaviest tube stock in industrial fabrication. It handles round tubes up to 254 mm (10 in) diameter and rectangular profiles up to 220 mm side length (254 mm outer circle diameter). Raw material lengths go up to 12.5 m with the LoadMaster Tube 12.5 m -- nearly 41 feet of continuous tube processing.

Laser power options include 4 kW (TruFiber 4001) and 6 kW (TruFiber 6001). At 6 kW, the machine cuts 14 mm mild steel, 10 mm stainless, 10 mm aluminum, and 5 mm copper and brass tube wall thickness. Combined with the 254 mm diameter capability, this handles structural tube sizes used in offshore platforms, heavy equipment, bridge structures, and large architectural installations.

The LoadMaster configurations support up to 40 kg/m material weight. Raw material loading capacities range from 260 kg (LoadMaster 6.5 m) to 368 kg (LoadMaster 12.5 m). These capacities handle the heaviest structural tube sizes without manual intervention. The machine features bevel cutting up to 45 degrees, automatic weld seam detection via SeamLine Tube, and the Touchpoint HMI control.

The 12.5-meter LoadMaster is a standout feature. Most tube lasers max out at 6-8 meters of raw material. The ability to process 12.5 m tubes opens up applications in structural steel where standard tube lengths are 12 m (39 ft). Finished part lengths extend up to 8 m depending on unloading configuration, with longer lengths available with extended unloading systems.

Average power consumption is 10 kW at 4 kW laser and 12 kW at 6 kW. The Tube 7000 is the most productive and capable tube laser in Trumpf's range, designed for operations where tube size, wall thickness, and raw material length push beyond what the Tube 3000 and 5000 can handle.

New TruLaser Tube 7000 Fiber machines with 4 kW start around $600,000-$800,000. The 6 kW model with LoadMaster 12.5 m runs $750,000-$1,000,000. Fully equipped with extended unloading and automation, pricing can reach $1,200,000. The Tube 7000 competes with the BLM LT8.20 and Mazak FabriGear 400 in the large-format tube laser market.

Full Specifications

Parameter	Value
Max Tube Diameter Round	254 mm (10 in)
Max Profile Side Length	220 mm; 254 mm outer circle diameter
Max Raw Material Length	6,500 mm / 9,200 mm / 12,500 mm (depending on LoadMaster)
Finished Part Length	4,500 - 8,000 mm (depending on unloading configuration)
Max Material Weight Per Meter	40 kg/m
Max Auto Load Weight	260 kg (LoadMaster 6.5) / 368 kg (LoadMaster 12.5)
Laser Type	TruFiber (diode-pumped fiber laser)
Laser Power Options	4 kW (TruFiber 4001) / 6 kW (TruFiber 6001)
Max Thickness Mild Steel 4kw	10 mm (0.39 in)
Max Thickness Mild Steel 6kw	14 mm (0.55 in)
Max Thickness Stainless Steel 6kw	10 mm (0.39 in)
Max Thickness Aluminum 6kw	10 mm (0.39 in)
Max Thickness Copper 6kw	5 mm (0.20 in)
Max Thickness Brass 6kw	5 mm (0.20 in)
Bevel Cutting	Up to 45 degrees
Weld Seam Detection	SeamLine Tube (automatic)
CNC Control	Touchpoint HMI (touchscreen)
Avg Power Consumption 4kw	10 kW
Avg Power Consumption 6kw	12 kW
Maximum Outside Diameter	254 mm
Maximum Side Length And Outer Circle Diameter	220 mm / 254 mm
For Loadmaster Tube 65 M	6500 mm
For Loadmaster Tube 92 M	9200 mm1
For Loadmaster Tube 125 M	12500 mm1
For Unloading Unit 45 M	4500 mm
For Unloading Unit 45 M 15 M	6000 mm1
For Unloading Unit 65 M	6500 mm1
For Unloading Unit 65 M 15 M	8000 mm1
Maximum Path Weight	40 kg/m
With Loadmaster Tube 65 M	260 kg
With Loadmaster Tube 92 M	368 kg1
With Loadmaster Tube 125 M	368 kg12
Maximum Laser Power	6000 W
Maximum Material Thickness Mild Steel	14 mm / 10 mm
Maximum Material Thickness Stainless Steel	10 mm / 8 mm
Maximum Material Thickness Aluminum	10 mm / 8 mm
Maximum Material Thickness Copper	5 mm
Maximum Material Thickness Brass	5 mm
Consumption Values	12 kW
Diameter Of Up To 10 In	Process parts with a diameter of up to 10 in. and wall thicknesses of up to 0.4 in. for mild steel.
9 Kw Laser Power For Reduced Part Costs	Increased output and profit through reduced part-time hours for medium and large wall thicknesses.
Optimal Access To The Machine	Thanks to its open concept, the TruLaser Tube 7000 fiber offers optimum access.
High Quality Bevel Cuts	The bevel cutting option enables high-quality bevel cuts of up to 45°.
Optimum Cutting Result	Solid-state lasers and cutting data from TRUMPF - perfectly matched for the best cutting results.
Excellent Process Reliability	The state-of-the-art sensor system ensures your entire machining process runs smoothly.
Minimal Non Productive Time	The fully automatic machine settings mean that there is minimal non-productive time when using the TruLaser Tube 7000 fiber.
Integration Of Subsequent Processes	The TruLaser Tube 7000 fiber can optionally take over further process steps such as tapping threads.

Specifications sourced from trumpf.com — verified 2026-03-28

Strengths & Limitations

Strengths

254 mm (10 in) max tube diameter handles structural tube sizes that no other machine in Trumpf's tube laser range can process
12.5-meter LoadMaster processes full-length structural tube (12 m / 39 ft) without pre-cutting to shorter lengths
40 kg/m material weight capacity supports the heaviest structural tube profiles in industrial fabrication
Bevel cutting to 45 degrees on large-diameter tube enables weld-ready joints for heavy structural applications
368 kg automatic loading capacity handles heavy tube stock without manual crane intervention
6 kW laser cuts 14 mm mild steel tube wall -- adequate for most structural and process piping applications

Limitations

Pricing starts near $600,000 and reaches $1.2 million fully loaded -- justified only for regular large-diameter tube processing
Same 6 kW maximum laser power as the Tube 5000 -- wall thickness capability is identical despite the larger diameter range
Large machine footprint especially with 12.5 m LoadMaster -- requires significant dedicated floor space for tube staging and processing
5 mm copper and brass wall thickness limit is the same across all Trumpf tube lasers -- heavy-wall reflective material still challenging
Limited used market for large-format tube lasers -- resale value can be difficult to recover

Best For

Structural steel fabricators processing large-diameter tube (6-10 in) for heavy construction and infrastructure Offshore and marine operations cutting heavy structural tube for platform fabrication Bridge and heavy equipment manufacturers needing 254 mm diameter tube cutting with bevel joints Operations processing full 12-meter tube lengths without pre-cutting to shorter stock sizes Large architectural metalwork firms cutting oversized decorative and structural tube profiles Process piping fabricators cutting and beveling large-diameter pipe for industrial installations

Frequently Asked Questions

01 What does a Trumpf TruLaser Tube 7000 Fiber cost?

New machines with 4 kW start around $600,000-$800,000. The 6 kW with LoadMaster 12.5 m runs $750,000-$1,000,000. Fully equipped with extended unloading and automation, pricing reaches $1,200,000. The Tube 7000 is a specialized machine with limited used market availability.

02 How does the Tube 7000 compare to the Tube 5000?

The Tube 7000 handles significantly larger tubes: 254 mm vs 152-170 mm diameter. It also supports longer raw material (up to 12.5 m vs 8 m) and heavier stock (40 kg/m vs 25 kg/m). Laser power options and wall thickness capabilities are identical (4-6 kW, up to 14 mm mild steel). Choose the Tube 7000 if your work requires tube diameters above 170 mm or raw material lengths above 8 m.

03 What's the advantage of the 12.5-meter LoadMaster?

Standard structural tube comes in 12 m (39 ft) lengths in most markets. The 12.5 m LoadMaster processes full-length tubes without pre-cutting, which eliminates a handling step, reduces material waste from end drops, and enables parts that span nearly the full tube length. For structural fabricators, this is a significant efficiency gain.

04 Can the Tube 7000 process non-round profiles?

Yes. The machine handles rectangular profiles up to 220 mm side length (254 mm outer circle diameter), as well as various open and closed profiles. The adaptive clamping system accommodates different cross-sections. Programming through TruTops CAM supports complex profile geometries including joints, notches, and fish-mouth cuts on non-round shapes.

05 What tube diameters are too large for the Tube 7000?

Tubes above 254 mm (10 in) diameter exceed the Tube 7000's capacity. For larger diameters, fabricators typically use either CNC plasma cutting systems designed for large pipe, robotic laser cutting cells, or manual cutting and beveling. Trumpf does not offer a tube laser above 254 mm in their standard product range.

06 Is 6 kW enough for 254 mm diameter tube?

Yes, for standard wall thicknesses up to 14 mm mild steel. Large-diameter tube doesn't necessarily have thick walls -- many 254 mm structural tubes have 5-10 mm walls, well within the 6 kW capability. For tube walls above 14 mm, which are uncommon at this diameter, plasma or oxy-fuel cutting remains the standard approach.
