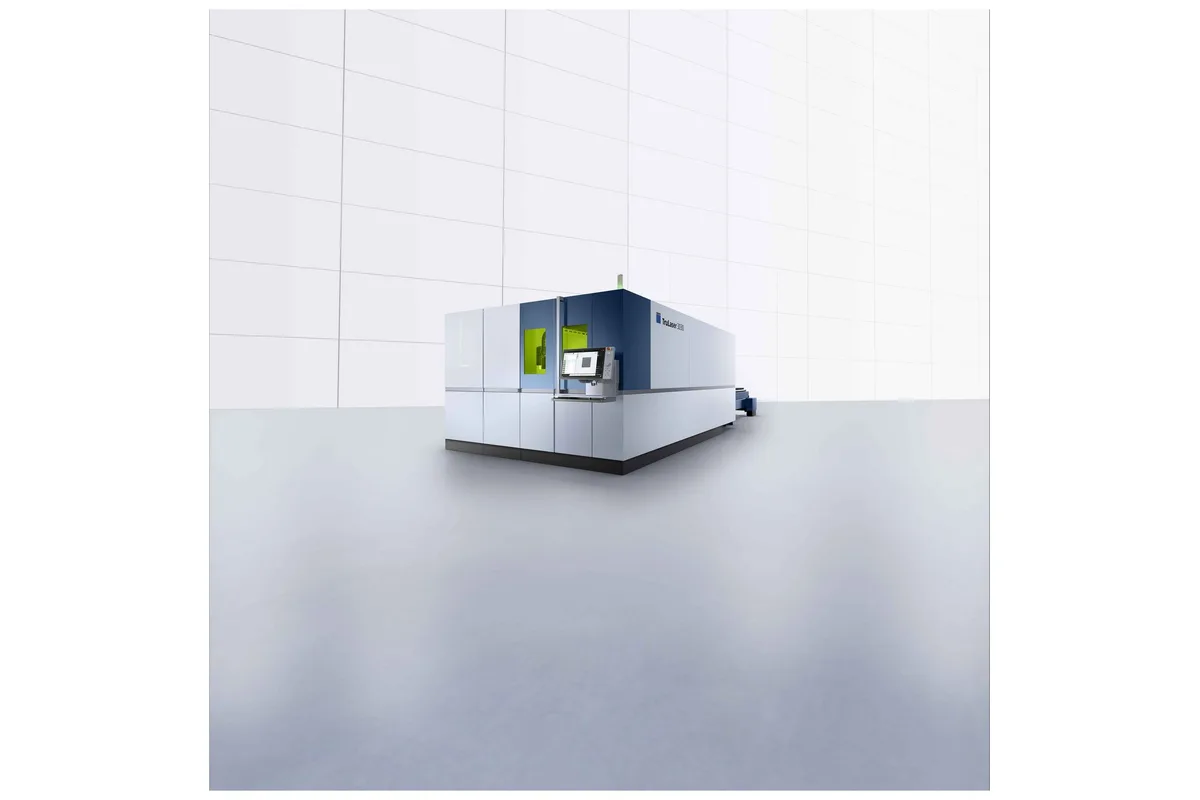

TRUMPF TruLaser 3040 fiber
Image: trumpf.com, TRUMPF
Key Specifications
X Travel
Y Travel
max sheet thickness mild steel
max sheet thickness aluminum
machine weight
wattage
How much does the TRUMPF TruLaser 3040 fiber cost?
Estimated price range
Our best estimate for a cnc laser cutting machine in this class — not a quote from TRUMPF. Configuration moves it a long way.
Overview
The TRUMPF TruLaser 3040 fiber is a 4,000 × 2,000 mm (157 × 78.7 in) 2D fiber laser cutting machine listed with five TruFiber lasers, from the TruFiber 4000 to the TruFiber 24001. Maximum positioning speed is 170 m/min and the sheet limit is 2,000 kg (4,409 lb).
Five laser options make the thickness table worth reading row by row, because each step helps a different material. Going from the TruFiber 4000 to the 6001 lifts mild steel from 22 mm (0.87 in) to 25 mm (0.98 in), and stainless and aluminum from 20 mm (0.79 in) to 25 mm (0.98 in). The 9001 does nothing more for mild steel, which stays at 25 mm, but takes stainless to 40 mm (1.57 in) and aluminum to 30 mm (1.18 in). The 12001 adds only mild steel, to 30 mm (1.18 in). The 24001 brings mild steel and aluminum to 40 mm (1.57 in) and is the only laser listed for 16 mm (0.63 in) copper. Brass stops at 12.7 mm (0.50 in) from the 9001 upward.
Read that way, the choice follows the material mix. A stainless shop gets the full 40 mm from the 9001 and gains no thickness beyond it. A mild steel plate shop sees no gain until the 12001. Where a larger laser adds no thickness, what it can still add is cutting speed, and the table gives no cutting speeds to put a number on that.
Two neighbours cut the same sheet format. The TruLaser 1040 is the lighter machine at 12,000 kg (26,455 lb) and positions at 140 m/min; its laser list ends at the TruFiber 12001. The TruLaser 5040 positions at 280 m/min and matches the TruLaser 3040 in weight and footprint, but its laser list begins at the TruFiber 6001.
The TruLaser 3040 weighs 14,300 kg (31,526 lb) and needs 11,200 × 6,373 × 2,200 mm (441 × 251 × 86.6 in). With a 2,000 kg sheet limit, full-size sheets at the thick end of the table need a weight check before they are ordered.
Full Specifications
| Parameter | Value |
|---|---|
| Max Sheet Thickness Mild Steel | 22 / 25 / 25 / 30 / 40 mm (0.87 / 0.98 / 0.98 / 1.18 / 1.57 in) with TruFiber 4000 / 6001 / 9001 / 12001 / 24001 |
| Max Sheet Thickness Aluminum | 20 / 25 / 30 / 30 / 40 mm (0.79 / 0.98 / 1.18 / 1.18 / 1.57 in) with TruFiber 4000 / 6001 / 9001 / 12001 / 24001 |
| Machine Weight | 14,300 kg (31,526 lb) |
| Wattage | 4000 w |
| Max Positioning Speed | 170 m/min |
| X-Axis Travel | 4,000 mm (157 in) |
| Y-Axis Travel | 2,000 mm (78.7 in) |
| Max Workpiece Weight | 2,000 kg (4,409 lb) |
| Max Sheet Thickness Stainless Steel | 20 / 25 / 40 / 40 / 40 mm (0.79 / 0.98 / 1.57 / 1.57 / 1.57 in) with TruFiber 4000 / 6001 / 9001 / 12001 / 24001 |
| Max Sheet Thickness Copper | 8 / 10 / 12.7 / 12.7 / 16 mm (0.31 / 0.39 / 0.50 / 0.50 / 0.63 in) with TruFiber 4000 / 6001 / 9001 / 12001 / 24001 |
| Max Sheet Thickness Brass | 8 / 10 / 12.7 / 12.7 / 12.7 mm (0.31 / 0.39 / 0.50 / 0.50 / 0.50 in) with TruFiber 4000 / 6001 / 9001 / 12001 / 24001 |
| Floor Space Required | 11,200 × 6,373 × 2,200 mm (441 × 251 × 86.6 in) |
Specifications sourced from trumpf.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Five TruFiber lasers are listed, from the 4000 to the 24001, one more than on the TruLaser 1040 or the TruLaser 5040
- Stainless steel up to 40 mm (1.57 in) from the TruFiber 9001 upward
- Mild steel and aluminum up to 40 mm (1.57 in), and copper up to 16 mm (0.63 in), with the TruFiber 24001
- 170 m/min maximum positioning speed, against 140 m/min on the TruLaser 1040
- Carries 4,000 × 2,000 mm (157 × 78.7 in) sheet up to 2,000 kg (4,409 lb)
Limitations
- With the TruFiber 9001, mild steel stays at 25 mm (0.98 in), the same as with the 6001
- Positioning speed of 170 m/min is well below the 280 m/min of the TruLaser 5040, which has the same weight and footprint
- Brass is limited to 12.7 mm (0.50 in) with every laser from the 9001 to the 24001
- The 2,000 kg (4,409 lb) sheet limit has to be checked against full sheets in the thickest gauges
Best For
Frequently Asked Questions
01
For 40 mm (1.57 in) stainless steel the TruFiber 9001 is enough; the 12001 and 24001 are listed at the same figure. For 40 mm (1.57 in) mild steel or aluminum only the TruFiber 24001 is listed. The 12001 reaches 30 mm (1.18 in) in both of those materials.
02
With the TruFiber 4000 the listed limits are 22 mm (0.87 in) in mild steel, 20 mm (0.79 in) in stainless steel and aluminum, and 8 mm (0.31 in) in copper and brass. The next step, the TruFiber 6001, raises steel, stainless and aluminum to 25 mm (0.98 in) and copper and brass to 10 mm (0.39 in).
03
Both have 4,000 × 2,000 mm travel, weigh 14,300 kg (31,526 lb) and occupy 11,200 × 6,373 × 2,200 mm. The TruLaser 5040 positions at 280 m/min against 170 m/min, and with the TruFiber 9001 it is listed to 30 mm (1.18 in) in mild steel where the TruLaser 3040 is listed to 25 mm (0.98 in). The TruLaser 3040 can be had with the smaller TruFiber 4000.
04
The footprint is 11,200 × 6,373 mm (441 × 251 in), the height 2,200 mm (86.6 in) and the weight 14,300 kg (31,526 lb). The table itself takes sheets up to 2,000 kg (4,409 lb). Loading equipment and the space to stage 4,000 mm sheets come on top of the machine footprint.
05
Copper is listed at 8 mm (0.31 in) with the TruFiber 4000, 10 mm (0.39 in) with the 6001, 12.7 mm (0.50 in) with the 9001 and 12001, and 16 mm (0.63 in) with the 24001. Brass follows the same steps up to 12.7 mm (0.50 in) and stays there, the 24001 included.
