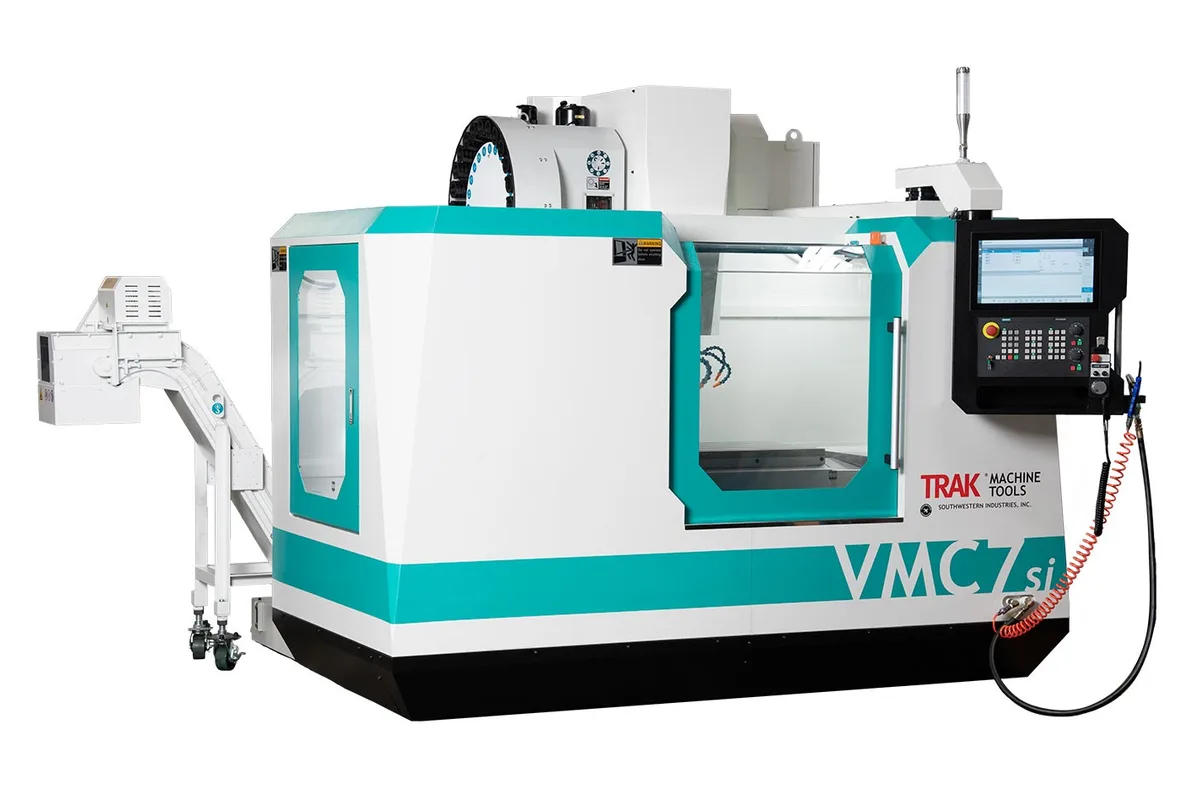

TRAK VMC7si
Image: southwesternindustries.com, TRAK Machine Tools
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the TRAK VMC7si cost?
Price estimate
We do not have a price for the TRAK VMC7si that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The TRAK VMC7si is a 40 Taper vertical machining center with 30 x 20 x 20 in (762 x 508 x 508 mm) of travel, a 10 - 12,000 rpm spindle and a 24-tool dual-arm changer. Its table is 35.43 x 19.69 in (900 x 500 mm) and carries 1,518 lbs (689 kg).
The spindle is the centre of the specification. At 480V it is rated 41.5 hp (30.9 kW) peak and 20.1 hp (15.0 kW) continuous, and 12,000 rpm is the listed top speed with no option needed to reach it. Feeds match: rapid traverse is 1,000 ipm (25.4 m/min) and the maximum cutting feed rate is the same 1,000 ipm (25.4 m/min), so the machine can feed as fast as it positions.
Tool handling is built for longer cycles. The dual-arm changer swaps in 2.5 s and holds 24 tools, or 30 as an option. A tool may weigh 18 lbs (8 kg) with its holder and measure 3.07 in (78 mm) across. CAT40 is standard. BT40 is optional and requires a different ATC arm, so the holder standard should be settled before ordering. TRAK's table also gives a coolant-through-spindle pump of 3 kW / 4 HP at 319 psi.
A buyer comparing it with the TMC7 will find the same table and nominal travels. The TMC7 lists 15 hp (11.2 kW) peak, 8,000 rpm as standard and a 16-tool carousel, and it runs from a 208V supply. The VMC7si asks for more from the building in return for its spindle.
Specifically, it wants 480 V three-phase at 41 A, with 432–528 V acceptable. A transformer option allows 208 V at 94 A. With chip conveyor and coolant tank the footprint is 144 x 112 in (3,658 x 2,845 mm), and height is 93.5 in (2,375 mm) minimum, 108 in (2,743 mm) with the head fully up.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 35.43 x 19.69 in (900 x 500 mm) |
| X Axis Travel | 30 in (762 mm) |
| Y Axis Travel | 20 in (508 mm) |
| Z Axis Travel | 20 in (508 mm) |
| Travel with Soft Limits | 30.16 x 20.24 x 20.24 in (766 x 514 x 514 mm) (X x Y x Z) |
| Rapid Traverse Xyz | 1,000 ipm (25.4 m/min) |
| Cutting Feed Rate | 1,000 ipm (25.4 m/min) max. |
| Max Table Load | 1,518 lbs (689 kg) |
| Distance Spindle Nose to Table | 3.5 in (89 mm) min. to 23.50 in (597 mm) max. |
| Spindle Taper | 40 Taper |
| Max Spindle Speed | 10 - 12,000 rpm |
| Spindle Nose Diameter | 3 in (76 mm) |
| Tool Clamping Force | 1,500 lbs (680 kg) at 90 psi |
| Tool Holder Type | CAT40 standard BT40 optional (must change ATC arm) |
| Tool Capacity | 24 (30 optional) (dual-arm ATC) |
| Max Tool Weight | 18 lbs (8 kg) incl. holder |
| Max Tool Diameter (full magazine) | 3.07 in (78 mm) |
| Tool Change Time | 2.5 s (arm) |
| Spindle Motor Power | 41.5 hp (30.9 kW) peak / 20.1 hp (15.0 kW) continuous (480V) |
| Coolant Through Spindle | 3 kW / 4 HP pump, 319 psi |
| Power Requirement | 480 V (432–528 V is acceptable), 3P, 41 A; 208 V with transformer option (200-240 V is acceptable), 3P, 94 A |
| Machine Dimensions | Footprint 144 x 112 in (3,658 x 2,845 mm) (W x L) with chip conveyor and coolant tank |
| Machine Height | 93.5 in (2,375 mm) min.; 108 in (2,743 mm) with head fully up |
| Machine Weight | 8,360 lbs net (3,792 kg); 8,710 lbs shipping |
| Coolant Capacity | 60 gal (227 L) |
| Air Requirement | 2.5 CFM, 18 SCFM at 90 psi |
Specifications sourced from southwesternindustries.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 10 - 12,000 rpm spindle rated 41.5 hp (30.9 kW) peak / 20.1 hp (15.0 kW) continuous at 480V
- Cutting feed rate up to 1,000 ipm (25.4 m/min), equal to the rapid rate
- 24-tool dual-arm changer, 30 optional, with a 2.5 s arm time
- Coolant-through-spindle pump listed at 3 kW / 4 HP and 319 psi
- Tools up to 18 lbs (8 kg) including holder
- 60 gal (227 L) coolant tank
Limitations
- A 480 V machine: 208 V operation needs the transformer option and a 94 A supply
- BT40 is optional and means changing the ATC arm; CAT40 is the standard
- Maximum tool diameter is 3.07 in (78 mm)
- Footprint of 144 x 112 in (3,658 x 2,845 mm) with chip conveyor and coolant tank
- Table load is 1,518 lbs (689 kg); the VMC10si carries 2,024 lbs (918 kg)
Best For
Frequently Asked Questions
01
At 480V the spindle is rated 41.5 hp (30.9 kW) peak and 20.1 hp (15.0 kW) continuous, over a speed range of 10 - 12,000 rpm. It is a 40 Taper spindle with a 3 in (76 mm) nose diameter and 1,500 lbs (680 kg) of tool clamping force at 90 psi.
02
CAT40 is standard. BT40 is listed as optional, with the note that the ATC arm must be changed. Tools can be up to 3.07 in (78 mm) in diameter and 18 lbs (8 kg) including the holder.
03
24 as built, with 30 available as an option, in a dual-arm automatic tool changer. The arm's tool change time is listed as 2.5 s. By comparison, the TMC7 on the same size of table has a 16-tool carousel.
04
Nominal travels are 30 in (762 mm) in X and 20 in (508 mm) in both Y and Z. TRAK also gives travel with soft limits as 30.16 x 20.24 x 20.24 in (766 x 514 x 514 mm). Spindle nose to table is 3.5 in (89 mm) minimum and 23.50 in (597 mm) maximum.
05
480 V three-phase at 41 A, or 208 V at 94 A through the transformer option. Air is listed as 2.5 CFM, 18 SCFM at 90 psi. The footprint with chip conveyor and coolant tank is 144 x 112 in (3,658 x 2,845 mm), and the machine weighs 8,360 lbs net (3,792 kg), 8,710 lbs shipping.
More from TRAK Machine Tools
Other Vertical Machining Centers (VMC)

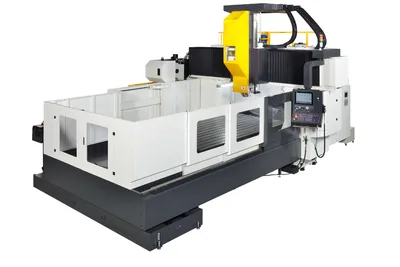

Anderson FDC-1417
DN Solutions BVM 5700

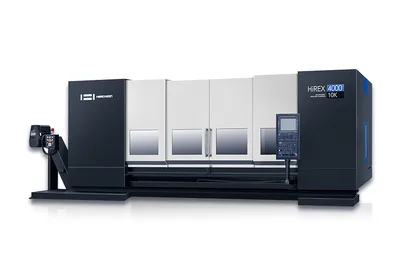

Hwacheon HiREX-4000

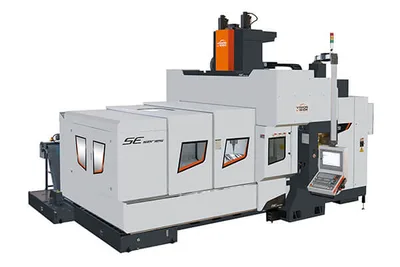

Vision Wide SE-2612
