DN Solutions Vertical Machining Centers (VMC)

DN Solutions BVM 5700

Est. $130,000 - $180,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

1,050 mm (41 in)

Y Travel

570 mm (22 in)

Z Travel

460 mm (18 in)

Spindle Taper

ISO 40

Table Size

1,300 × 570 mm (51 × 22 in)

Spindle Power

37 kW (50 hp)

How much does the DN Solutions BVM 5700 cost?

Estimated price range

Est.$130,000 - $180,000

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

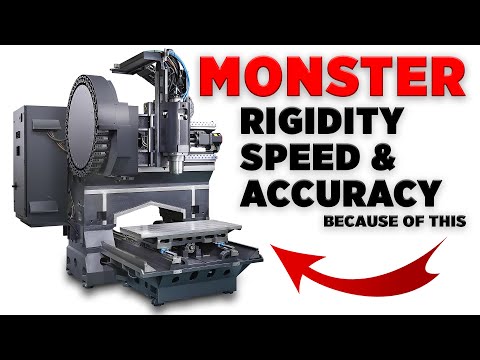

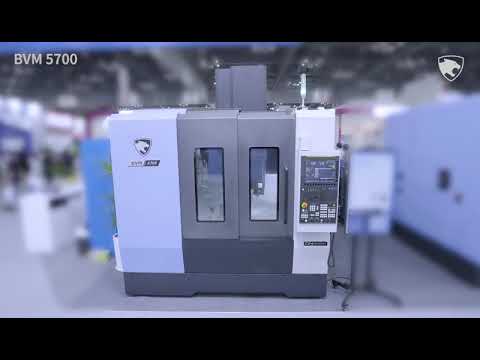

The DN Solutions BVM 5700 is a bridge-type vertical machining center aimed at die and mold work, with 1,050 mm (41 in) of X travel, 570 mm (22 in) of Y and 460 mm (18 in) of Z. The spindle is an ISO 40 unit rated 37 kW (50 hp) and 214 N·m (158 ft-lb). DN describes the series as having a built-in spindle of 15,000 r/min; the model's own spec column carries no maximum-speed row, so have the speed confirmed in the quotation.

Its nearest relative in size is the DNM 5700 S, which shares the X and Y travels, the 1,300 × 570 mm (51 × 22 in) table and the 42 m/min (1,654 ipm) X and Y rapids. The BVM 5700 changes the structure and the motor. It weighs 7,500 kg (16,535 lb) against 6,500 kg (14,330 lb) for the DNM 5700 S, and its spindle is rated 37 kW (50 hp) and 214 N·m (158 ft-lb) where the DNM 5700 S is listed at 18.5 kW (25 hp) and 117.8 N·m (87 ft-lb). Table load rises too, 1,000 kg (2,205 lb) against 800 kg (1,764 lb) on the DNM 5700 S.

The bridge layout gives something back in Z. Travel is 460 mm (18 in), where the DNM 5700 S has 510 mm (20 in), so a tall insert with a long tool needs checking first. The table is also longer than the X stroke, 1,300 mm (51 in) against 1,050 mm (41 in). The spindle cannot reach both ends of a full-length plate in one setup; treat the extra length as fixturing room.

For thermal stability DN lists a thermal displacement correcting function and nut cooling as standard. The machine stands on 3,080 × 2,560 mm (121 × 101 in) of floor and is 2,890 mm (114 in) high.

Full Specifications

Parameter	Value
X-Axis Travel	1,050 mm (41 in)
Y-Axis Travel	570 mm (22 in)
Z-Axis Travel	460 mm (18 in)
Rapid Traverse X	42 m/min (1,654 ipm)
Rapid Traverse Y	42 m/min (1,654 ipm)
Rapid Traverse Z	36 m/min (1,417 ipm)
Spindle Motor Power	37 kW (50 hp)
Spindle Torque	214 N·m (158 ft-lb)
Spindle Taper	ISO 40
Table Size	1,300 × 570 mm (51 × 22 in)
Max Table Load	1,000 kg (2,205 lb)
Floor Space Required	3,080 × 2,560 × 2,890 mm (121 × 101 × 114 in)
Machine Weight	7,500 kg (16,535 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

37 kW (50 hp) and 214 N·m (158 ft-lb) on an ISO 40 spindle, against 18.5 kW (25 hp) and 117.8 N·m (87 ft-lb) on the DNM 5700 S
Rapids of 42 m/min (1,654 ipm) in X and Y and 36 m/min (1,417 ipm) in Z
Bridge-type structure with a thermal displacement correcting function and nut cooling listed as standard
1,000 kg (2,205 lb) table load on a 1,300 × 570 mm (51 × 22 in) table
Stands on 3,080 × 2,560 mm (121 × 101 in) of floor at a machine weight of 7,500 kg (16,535 lb)

Limitations

Z travel is 460 mm (18 in), less than the 510 mm (20 in) of the DNM 5700 S
X travel of 1,050 mm (41 in) is shorter than the 1,300 mm (51 in) table, so the ends of a full-length workpiece are out of reach
DN's spec column for this model has no maximum spindle speed row; the 15,000 r/min figure comes from the series description
Peak torque of 214 N·m (158 ft-lb) is below the 286.5 N·m (211 ft-lb) listed for the MYNX 5400 II, so it is not the pick for low-speed heavy cuts

Best For

Die and mold cores and cavities inside 1,050 × 570 × 460 mm (41 × 22 × 18 in) Mold finishing where thermal displacement correction matters Workpieces and fixtures up to 1,000 kg (2,205 lb) Short-cycle work that benefits from 42 m/min (1,654 ipm) rapids

Frequently Asked Questions

01 What spindle does the BVM 5700 have?

The table lists an ISO 40 spindle rated 37 kW (50 hp) and 214 N·m (158 ft-lb). DN's series description calls it a built-in spindle of 15,000 r/min, but the spec column for the BVM 5700 itself has no maximum-speed row, so ask for the speed and the power curve in writing.

02 How does the BVM 5700 compare with the DNM 5700 S?

Both have 1,050 mm (41 in) of X, 570 mm (22 in) of Y and a 1,300 × 570 mm (51 × 22 in) table. The BVM 5700 is a bridge-type machine with 37 kW (50 hp), 214 N·m (158 ft-lb) and a 1,000 kg (2,205 lb) table load, while the DNM 5700 S is listed at 18.5 kW (25 hp), 117.8 N·m (87 ft-lb) and 800 kg (1,764 lb). The DNM 5700 S has more Z travel, 510 mm (20 in) against 460 mm (18 in).

03 What size of part fits the BVM 5700?

The working envelope is 1,050 × 570 × 460 mm (41 × 22 × 18 in). The table is 1,300 × 570 mm (51 × 22 in) and carries 1,000 kg (2,205 lb), so a plate can overhang the X stroke for clamping, but only 1,050 mm (41 in) of its length can be machined without moving it.

04 How much floor space does the BVM 5700 take?

DN lists 3,080 × 2,560 × 2,890 mm (121 × 101 × 114 in) as length, width and height, and a machine weight of 7,500 kg (16,535 lb). The DNM 5700 S, with the same X and Y travels, is listed at 6,500 kg (14,330 lb), so check floor loading if the BVM 5700 is replacing a lighter machine.
