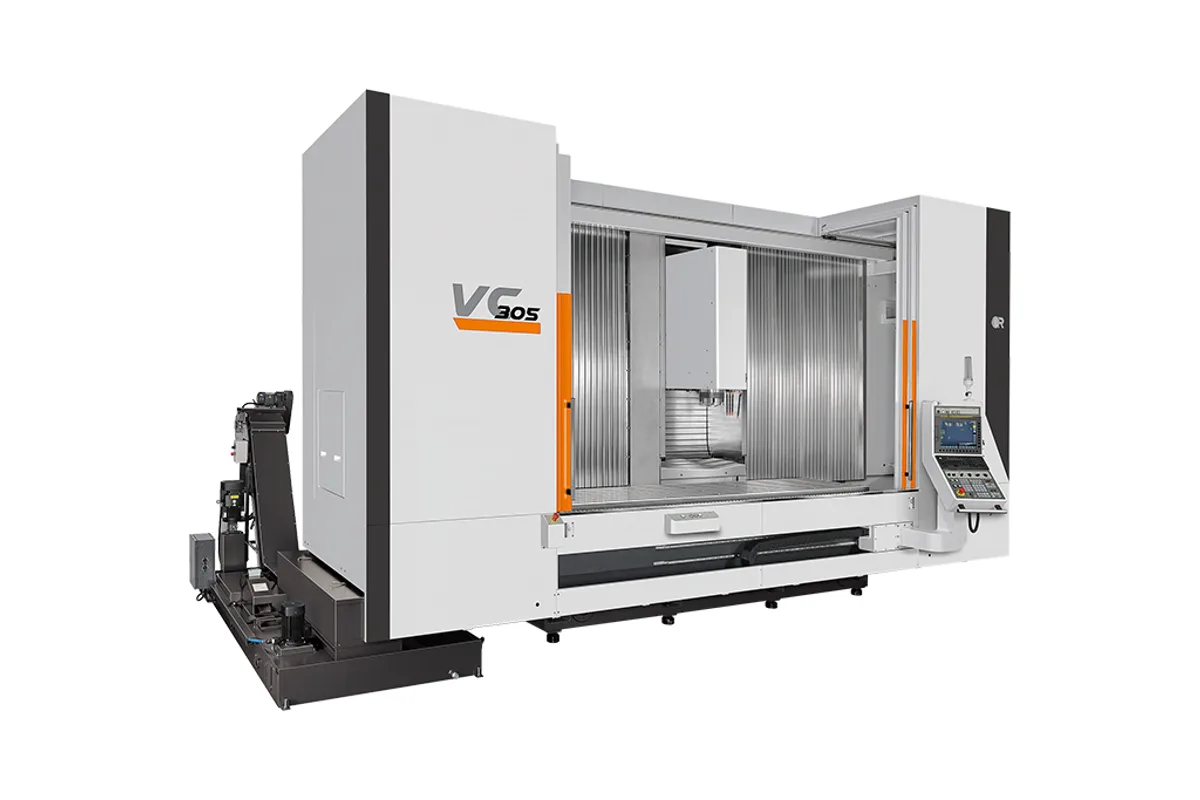

Victor Taichung Vcenter-305
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-305 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-305 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-305 is the maker's three-metre travelling-column machining center. X travel is 3,050 mm (120.07 in) over a fixed table of 3,510 x 770 mm (138.18 x 30.31 in), with 760 mm (29.92 in) in Y and 700 mm (27.55 in) in Z. The table carries 3,000 kg (6,613.85 lb).
It is far more machine than it looks beside its shorter sibling. Y travel is 760 mm (29.92 in) where the Vcenter-205 has 550 mm, Z is longer, the table takes two and a half times the load, and the weight is 21,500 kg (47,399.32 lb). The spindle taper is dual-contact BBT-40. What has not grown is the motor, still 7.5 / 11 / 15 kW (10 / 15 / 20 HP) at up to 12,000 rpm.
So the machine is defined by reach and not by cutting power. Long structural parts, machine beds, frames, rails and large plates can be set down on the fixed table and machined along their whole length in one clamping. Rapid feeds are 32 m/min. With the central partition the table can also serve as two stations for pendulum work.
The listed positioning accuracy is 0.015 mm, looser than the figure printed for the maker's shorter machines, as expected over three metres of travel. Repeatability is 0.007 mm (±0.0035 mm). The magazine holds 24 tools of up to 8 kg (17.63 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,050 mm (120.07 in) |
| Y Axis Travel | 760 mm (29.92 in) |
| Z Axis Travel | 700 mm (27.55 in) |
| Table Size | 3,510 x 770 mm (138.18 x 30.31 in) |
| T-Slots | 7 x 18 x 100 mm |
| Max Table Load | 3,000 kg (6,613.85 lb) |
| Spindle Taper | BBT-40 |
| Spindle Motor Power | 7.5 / 11 / 15 kW (10 / 15 / 20 HP) |
| Max Spindle Speed | 12,000 rpm |
| Tool Capacity | 24 |
| Max Tool Weight | 8 kg (17.63 lb) |
| Positioning Accuracy | 0.015 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 21,500 kg (47,399.32 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,050 mm (120.07 in) of X travel with a 760 mm (29.92 in) Y axis
- Fixed table rated for 3,000 kg (6,613.85 lb)
- 700 mm (27.55 in) of Z travel
- Central partition for pendulum machining
- Directly coupled BBT-40 spindle at 12,000 rpm
Limitations
- Spindle motor of 7.5 / 11 / 15 kW (10 / 15 / 20 HP) is light for the machine's size
- Positioning accuracy is listed at 0.015 mm
- 24-tool magazine with an 8 kg (17.63 lb) tool limit
- 21,500 kg (47,399.32 lb) and a long footprint
Best For
Frequently Asked Questions
01
3,510 x 770 mm (138.18 x 30.31 in), with 7 x 18 x 100 mm T-slots and a maximum load of 3,000 kg (6,613.85 lb). The table is fixed; the column travels 3,050 mm (120.07 in) along it.
02
The Vcenter-305 has 3,050 mm (120.07 in) of X travel, 760 mm (29.92 in) of Y and a 3,000 kg (6,613.85 lb) table load. The Vcenter-205 has 2,050 mm (80.70 in), 550 mm (21.65 in) and 1,200 kg (2,645.54 lb). Both have the same spindle motor rating.
03
An accuracy of 0.015 mm and a repeatability of 0.007 mm (±0.0035 mm), both under ISO 230-2. Linear scales are available as an option.
04
BBT-40 taper, 12,000 rpm maximum speed and a motor rated 7.5 / 11 / 15 kW (10 / 15 / 20 HP), directly coupled to the spindle. The magazine holds 24 tools.
