Tajmac-ZPS MCG810i

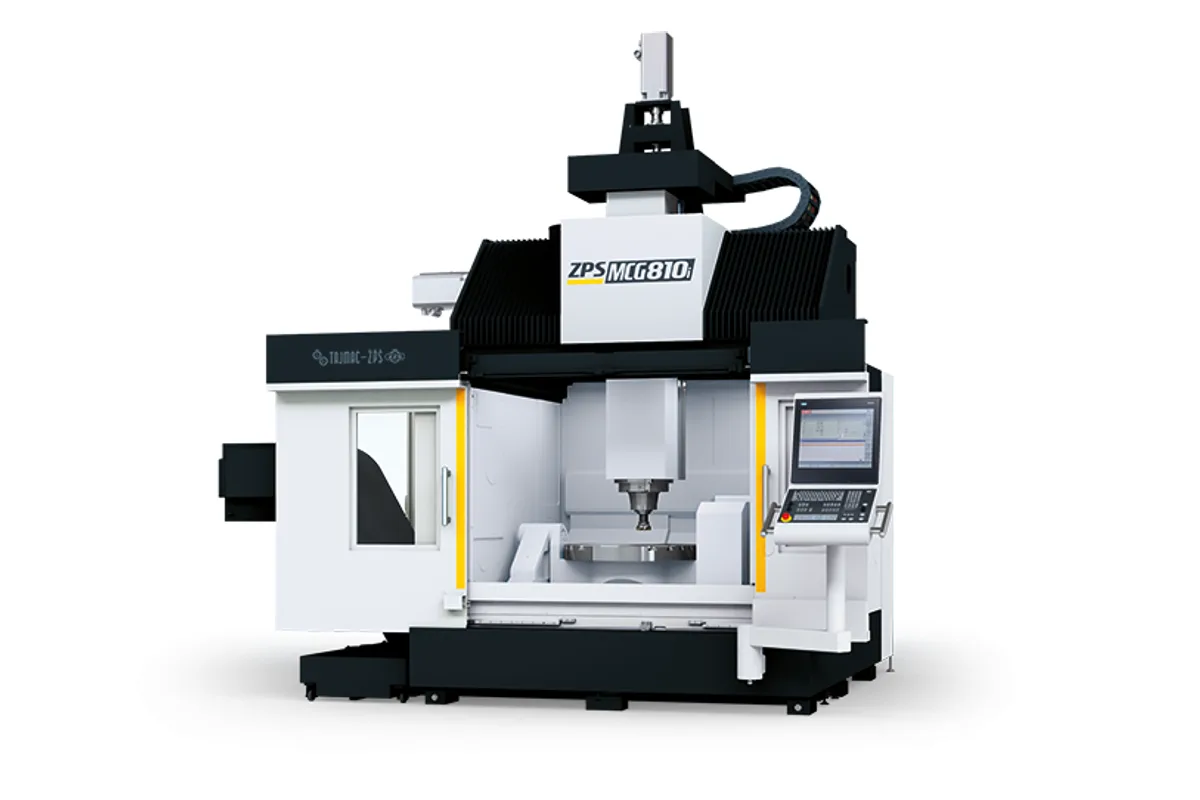

Image: tajmac-zps.cz, Tajmac-ZPS
Key Specifications
Tool Capacity
Table Size
Accuracy
Repeatability
x axis travel
y axis travel
How much does the Tajmac-ZPS MCG810i cost?
Price estimate
We do not have a price for the Tajmac-ZPS MCG810i that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The MCG810i is an upper-gantry machining centre with a fixed table: the workpiece stays still on a 1,200 × 1,000 mm (47.2 × 39.4 in) clamping plate while the cross rail, cross slide and ram carry the spindle over it. Travels are 1,000 mm in X, 800 mm in Y and 600 mm in Z. In base form it is a three-axis machine; a two-axis CNC head or a two-axis rotary table, both optional, turn it into a five-axis one.
That layout suits mould work, which is what the maker designed it for. A stationary table means axis dynamics do not change with the weight of the part, and the fixed table is rated at 3,000 kg/m2. Rapid traverse and feedrate are both 40 m/min with 5 m/s2 of acceleration, and the maker points to the rigidity and damping of the structure as the basis for HSC machining. Positioning error to ISO 230-2 is 0.008 mm and repeatability 0.0034 mm, measured directly.
The spindle sits in the ram as an electrospindle. Four units are listed for machines without head change: ISO-40 at 15,000 rpm and HSK-A63 at 18,000 rpm, each 25 / 31 kW and 160 / 200 Nm; HSK-A100 at 14,000 rpm with 25 / 37 kW; and HSK-T100 at 12,000 rpm for turning. With the CyTec S8 two-axis head the spindle is an HSK-A63 unit of 17.5 / 23 kW and 56 / 72 Nm, noticeably lighter, so heavy roughing is best done before the head is needed.
The two five-axis routes differ. The head tilts ±115° on A and rotates ±200° on C and leaves the full fixed table free. The rotary table, Ø 600 or Ø 800 mm, tilts ±95° and takes 650 kg at ±15° of tilt; in its turning-milling version it spins at 400 rpm for lathe operations with the HSK-T100 spindle.
A drum-type changer with 30 tools is standard on this model. It weighs 11,500 kg.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,000 mm (39.4 in) |
| Y Axis Travel | 800 mm (31.5 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| A Axis Range CNC Head | ±115° (optional two-axis CNC head) |
| C Axis Range CNC Head | ±200° (optional two-axis CNC head) |
| A Axis Range Rotary Table | ±95° (optional two-axis rotary table) |
| C Axis Range Rotary Table | 360° (optional two-axis rotary table) |
| Cutting Feed Rate | 40 m/min |
| Rapid Traverse Xyz | 40 m/min |
| Acceleration | 5 m/s2 |
| Table Size | 1,200 × 1,000 mm (47.2 × 39.4 in) |
| Max Table Load | 3,000 kg/m2 |
| Table T Slots | 18H8 mm |
| Rotary Table Size | Ø 600 mm (23.6 in), Ø 800 mm (31.5 in) (optional two-axis rotary table) |
| Rotary Table Max Load | 650 kg (1,433 lb) at tilt ±15°, 450 kg (992 lb) at tilt ±90° (Ø 600 mm table); 560 kg (1,235 lb) and 360 kg (794 lb) with the Ø 800 mm clamping plate |
| Rotary Table Speed | 400 rpm (turning-milling table); 100 rpm (milling table) |
| Distance Spindle Nose to Table | 150 - 750 mm (5.9 - 29.5 in) |
| Distance Spindle Nose to Rotary Table | 25 - 625 mm (1.0 - 24.6 in) |
| Table Height From Floor | 750 mm (29.5 in) |
| Positioning Accuracy | 0.008 mm (ISO 230-2) |
| Repeatability | 0.0034 mm (ISO 230-2) |
| Spindle Unit Iso 40 15000 RPM | 15,000 rpm; 25 / 31 kW (33.5 / 41.6 hp); 160 / 200 Nm (118 / 148 lb-ft) |
| Spindle Unit HSK A63 18000 RPM | 18,000 rpm; 25 / 31 kW (33.5 / 41.6 hp); 160 / 200 Nm (118 / 148 lb-ft) |
| Spindle Unit HSK A100 14000 RPM | 14,000 rpm; 25 / 37 kW (33.5 / 49.6 hp); 160 / 236 Nm (118 / 174 lb-ft) |
| Spindle Unit HSK T100 12000 RPM | 12,000 rpm; 25 / 30 kW (33.5 / 40.2 hp); 119 / 143 Nm (87.8 / 105 lb-ft) |
| Spindle Unit Cytec S8 Head HSK A63 18000 RPM | 18,000 rpm; 17.5 / 23 kW (23.5 / 30.8 hp); 56 / 72 Nm (41.3 / 53.1 lb-ft) |
| Tool Capacity | 30 |
| Max Tool Diameter (full magazine) | 80 mm (3.1 in); 115 mm (4.5 in) without adjacent tools |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 8 kg (18 lb) |
| Max Weight of All Tools | 150 kg (331 lb) |
| Tool Change Time | 3.5 s |
| Tool Capacity Rack Type Changer | 50 (130 option) |
| Max Tool Diameter Rack Type Changer | 110 mm (4.3 in); 160 mm (6.3 in) without adjacent tools |
| Max Tool Weight Rack Type Changer | 8 kg (18 lb) HSK63; 15 kg (33 lb) HSK100 |
| Tool Change Time Rack Type Changer | 8 s |
| Power Requirement | 3 × 400 V / 50 Hz or 3 × 480 V / 60 Hz |
| Power Input | 45 kVA |
| Full Load Current | 125 A |
| Air Pressure | 0.6 - 0.8 MPa |
| Through Spindle Coolant | 25 - 40 l/min at 55 - 70 bar, 5 µm filtration (optional spindle axial cooling) |
| Machine Weight | 11,500 kg (25,353 lb) |
Specifications sourced from tajmac-zps.cz — verified 2026-10-04
Strengths & Limitations
Strengths
- Fixed 1,200 × 1,000 mm (47.2 × 39.4 in) table: axis dynamics are independent of workpiece weight
- Electrospindles from 15,000 rpm ISO-40 to 18,000 rpm HSK-A63, each 25 / 31 kW and 160 / 200 Nm
- Two optional routes to five axes: a two-axis CNC head or a two-axis rotary table
- 40 m/min rapid traverse and feedrate with 5 m/s2 acceleration
- Drum-type tool changer for 30 tools as standard, with a 3.5 s tool change time
- Turning possible with the optional turning-milling rotary table at 400 rpm and an HSK-T100 spindle
Limitations
- Five-axis capability is optional equipment, not part of the base machine
- The CyTec S8 head spindle has 17.5 / 23 kW and 56 / 72 Nm, well below the ram electrospindles
- Z travel is 600 mm (23.6 in), which limits tall parts and long tools together
- The standard 30-tool changer takes tools up to 250 mm (9.8 in) long and 8 kg (18 lb)
Best For
Frequently Asked Questions
01
Both are possible. The standard machine has a fixed work table and an electrospindle in the ram, giving X, Y and Z. A two-axis CNC head (A ±115°, C ±200°) and a two-axis rotary table (A ±95°, C 360°) are listed as optional equipment, and the maker describes the machine as suitable for both three-axis and five-axis machining.
02
For machines without head change: ISO-40 at 15,000 rpm, HSK-A63 at 18,000 rpm, HSK-A100 at 14,000 rpm with 25 / 37 kW and 160 / 236 Nm, and HSK-T100 at 12,000 rpm with 25 / 30 kW and 119 / 143 Nm. For the CyTec S8 two-axis head: HSK-A63 at 18,000 rpm with 17.5 / 23 kW. Other variants are on request.
03
The fixed table is rated at 3,000 kg/m2 on a 1,200 × 1,000 mm clamping surface that stands 750 mm above the floor. The optional tilting rotary table carries 650 kg at a tilt of ±15° and 450 kg at ±90°, or 560 kg and 360 kg with the Ø 800 mm clamping plate.
04
The MCG820i has 1,800 mm of Y travel and a 1,200 × 2,000 mm clamping surface made of two fixed tables, and weighs 14,500 kg. It comes with a rack-type changer for 50 tools. The MCG810i has 800 mm of Y, one table, a 30-tool drum-type changer and weighs 11,500 kg.
05
A connection of 3 × 400 V / 50 Hz or 3 × 480 V / 60 Hz with an operating power of 45 kVA and 125 A at full load, and air at 0.6 - 0.8 MPa on the inlet. The machine without optional equipment weighs 11,500 kg (25,353 lb).
