Tajmac-ZPS MCG1000i

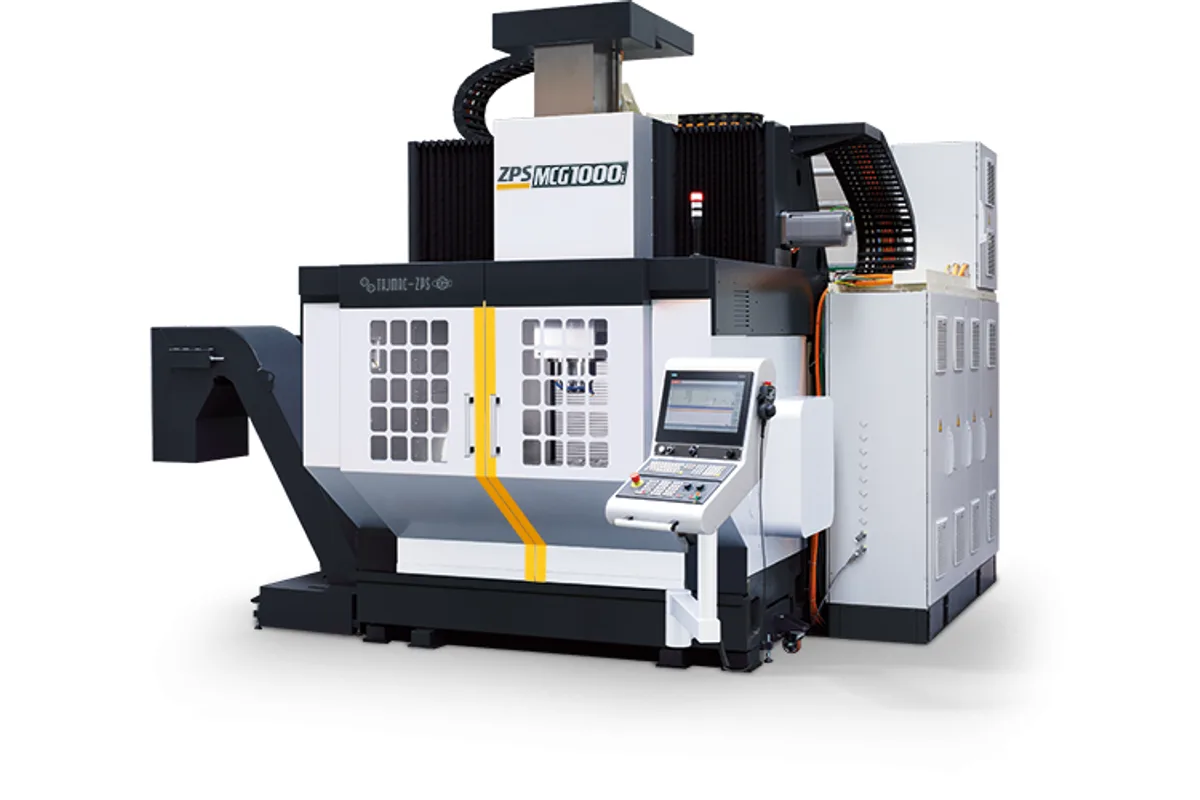

Image: tajmac-zps.cz, Tajmac-ZPS
Key Specifications
Tool Capacity
Table Size
Accuracy
Repeatability
x axis travel
y axis travel
How much does the Tajmac-ZPS MCG1000i cost?
Price estimate
We do not have a price for the Tajmac-ZPS MCG1000i that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Unlike the smaller ZPS gantries, the MCG1000i is a five-axis machine as delivered. A rotary-tilting table with torque motors is part of the standard equipment, giving a C axis of 360° and a B axis that tilts from -120° to +30°, under a gantry with 1,200 x 1,000 x 700 mm (47.2 x 39.4 x 27.6 in) of linear travel. Fit an HSK-T100 spindle and it also turns.
The standard table is Ø 800 mm and takes 1,300 kg for milling or 700 kg for turning when level, and 700 kg tilted to ±90°. A Ø 1,000 mm table is optional; it carries slightly less, 1,100 kg for milling. Either way the workpiece envelope is Ø 1,000 × 550 mm. The asymmetric tilt range is worth understanding: 120° one way lets the spindle reach past horizontal for undercuts, while 30° the other way is enough for draft angles and tool clearance.
Turning is the reason for the torque-motor C axis. It delivers 1,580 / 2,080 Nm and spins at up to 1,200 rpm on the Ø 800 mm table, or 800 rpm on the Ø 1,000 mm table. The maker is explicit that turning operations can only be performed with the HSK-T100 spindles, of which there are two: 12,000 rpm with 25 / 30 kW and 119 / 143 Nm, or 10,000 rpm with 48 / 71 kW and 300 / 452 Nm. The standard spindle is the 18,000 rpm HSK-A63 electrospindle, a milling unit.
Linear axes are the fastest in the ZPS gantry family at 60 m/min, with 5 m/s2 of acceleration and a HEIDENHAIN LC115 direct measuring system. Rotary positioning error is 12 arc sec on B and 6 arc sec on C.
The tool changer holds 50 tools in HSK63 or 30 in HSK100 and changes in 2.3 s. An automatic pallet changer with 630 × 630 mm pallets is described for 2, 3 or 4 pallets. The machine weighs 23,000 kg.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,200 mm (47.2 in) |
| Y Axis Travel | 1,000 mm (39.4 in) |
| Z Axis Travel | 700 mm (27.6 in) |
| B Axis Range | -120° / +30° |
| C Axis Range | 360° |
| Rapid Traverse Xyz | 60 m/min |
| Cutting Feed Rate | 60 m/min |
| Acceleration | 5 m/s2 |
| Positioning Accuracy | 0.008 mm (ISO 230-2) |
| Repeatability | 0.0034 mm (ISO 230-2) |
| Measuring System | HEIDENHAIN LC115 direct measuring system |
| B Axis Positioning Accuracy | 12 arc sec |
| B Axis Repeatability | 4 arc sec |
| C Axis Positioning Accuracy | 6 arc sec |
| C Axis Repeatability | 3 arc sec |
| Spindle Milling HSK A63 18000 RPM | 18,000 rpm; 25 / 31 kW (33.5 / 41.6 hp); 160 / 200 Nm (118 / 148 lb-ft) (S1-100% / S6-40%) |
| Spindle Milling HSK A100 14000 RPM | 14,000 rpm; 25 / 37 kW (33.5 / 49.6 hp); 160 / 236 Nm (118 / 174 lb-ft) (S1-100% / S6-40%) |
| Spindle Milling Turning HSK T100 12000 RPM | 12,000 rpm; 25 / 30 kW (33.5 / 40.2 hp); 119 / 143 Nm (87.8 / 105 lb-ft) (S1-100% / S6-40%) |
| Spindle Milling Turning HSK T100 10000 RPM | 10,000 rpm; 48 / 71 kW (64.4 / 95.2 hp); 300 / 452 Nm (221 / 333 lb-ft) (S1-100% / S6-40%) |
| Distance Spindle Nose to Table | 50 - 750 mm (2.0 - 29.5 in) |
| Table Size | Ø 800 mm (31.5 in) rotary-tilting table (standard); Ø 1,000 mm (39.4 in) optional |
| Max Workpiece Size | Ø 1,000 × 550 mm (Ø 39.4 × 21.7 in) (diameter x height) |
| Max Table Load | 1,300 kg (2,866 lb) milling; 700 kg (1,543 lb) turning (Ø 800 mm table, α=±0°) |
| Max Table Load Tilted | 700 kg (1,543 lb) (Ø 800 mm table, α=±90°) |
| Max Table Load 1000 Mm Table | 1,100 kg (2,425 lb) milling; 700 kg (1,543 lb) turning (α=±0°); 600 kg (1,323 lb) at α=±90° |
| C Axis Torque | 1,580 / 2,080 Nm (1,165 / 1,534 lb-ft) (S1 / S6-40%) |
| C Axis Speed | 1,200 rpm (Ø 800 mm table); 800 rpm (Ø 1,000 mm table) |
| B Axis Torque | 2 × 2,139 Nm / 2 × 3,413 Nm (S1 / S6-40%) |
| B Axis Speed | 50 rpm |
| Tool Capacity | 50 (100) HSK63; 30 (60) HSK100 |
| Max Tool Diameter (full magazine) | 80 mm (3.1 in) HSK63; 110 mm (4.3 in) HSK100; 160 mm (6.3 in) without adjacent tools |
| Max Tool Length | 380 mm (15.0 in) |
| Max Tool Weight | 8 kg (18 lb) HSK63; 15 kg (33 lb) HSK100 |
| Tool Change Time | 2.3 s |
| Power Requirement | 3 × 400 V / 50 Hz |
| Power Input | 80 kVA |
| Full Load Current | 150 A |
| Air Pressure | 0.6 – 0.8 MPa |
| Shipping Dimensions | 4,850 × 2,600 × 3,750 mm (190.9 × 102.4 × 147.6 in) |
| Machine Weight | 23,000 kg (50,705 lb) |
Specifications sourced from tajmac-zps.cz — verified 2026-10-04
Strengths & Limitations
Strengths
- Rotary-tilting table with torque motors is standard: C 360° and B -120° / +30°
- Milling and turning on one machine with an HSK-T100 spindle and a C axis up to 1,200 rpm
- 60 m/min rapid traverse and working feed in X, Y and Z
- Table load of 1,300 kg (2,866 lb) for milling on the Ø 800 mm table
- 2.3 s tool change time with 50 pockets in HSK63
- HEIDENHAIN LC115 direct measuring system in the basic configuration
Limitations
- Turning needs an HSK-T100 spindle; the standard HSK-A63 unit is for milling only
- Table load for turning is 700 kg (1,543 lb), about half the milling figure
- Workpiece height is limited to 550 mm (21.7 in)
- B axis speed is 50 rpm, and its range is +30° on one side only
- Draws 80 kVA at 150 A full load
Best For
Frequently Asked Questions
01
Yes, with the right spindle. The C axis is a rotary table with a built-in torque motor that enables turning operations, at up to 1,200 rpm on the Ø 800 mm table. The maker states that turning operations can only be performed with the HSK-T100 spindles; the standard equipment is an HSK-A63 electrospindle with a maximal speed of 18,000 rpm.
02
The standard rotary-tilting table is Ø 800 mm: 1,300 kg for milling and 700 kg for turning at α=±0°, and 700 kg at α=±90°. The optional Ø 1,000 mm table takes 1,100 kg for milling, 700 kg for turning and 600 kg at α=±90°. Maximum workpiece is Ø 1,000 × 550 mm on both.
03
For milling: HSK-A63 at 18,000 rpm with 25 / 31 kW and 160 / 200 Nm, and HSK-A100 at 14,000 rpm with 25 / 37 kW and 160 / 236 Nm. For milling and turning: HSK-T100 at 12,000 rpm with 25 / 30 kW, and HSK-T100 at 10,000 rpm with 48 / 71 kW and 300 / 452 Nm.
04
An automatic pallet change system with a setting-up station and the machine (2 pallets), or with one or two storage stations added (3 or 4 pallets). Pallets are 630 × 630 mm, the workpiece on a pallet is limited to Ø 1,000 × 400 mm and 400 kg, and pallet to pallet transfer time is 25 s.
05
The standard equipment list names a Sinumerik, Heidenhain or FANUC control system. Position feedback in all axes comes from a Heidenhain direct measuring system, with electronic compensation of thermal dilatations and spindle thermal stabilization also standard.
