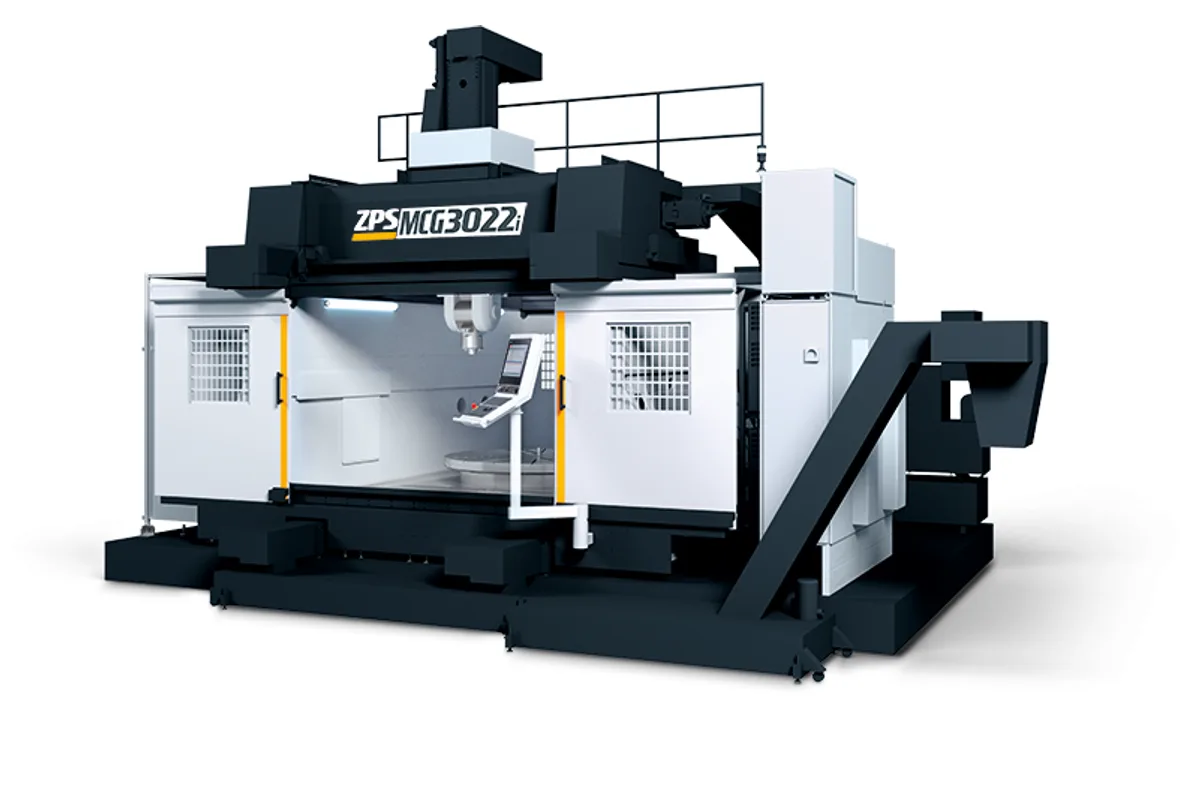

Tajmac-ZPS MCG3022i
Image: tajmac-zps.cz, Tajmac-ZPS
Key Specifications
Tool Capacity
Table Size
Accuracy
Repeatability
x axis travel
y axis travel
How much does the Tajmac-ZPS MCG3022i cost?
Price estimate
We do not have a price for the Tajmac-ZPS MCG3022i that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The MCG3022i is the largest machine Tajmac-ZPS lists and the base model of what it calls the INFINITY range: an upper-gantry centre with 3,000 mm (118.1 in) of X travel whose modular construction lets X be lengthened in 2 m steps, to the sizes the maker writes as 5022, 7022 and beyond. Y is 2,250 mm. The brochure gives two columns, a 5-axis and a 3-axis machine, and they differ in more than the head.
Take the 3-axis machine first. It has a fixed clamping plate of 4,000 × 2,000 mm carrying 10,000 kg, 1,250 mm of Z travel, and the spindle nose ranges from +530 to +1,780 mm above the table. It draws 70 kVA and weighs 55,000 kg. The 5-axis machine swaps the plate for a ø 2,100 mm rotary table, has 1,050 mm of Z, draws 90 kVA and weighs 53,000 kg. Its table carries 9,000 kg up to 50 rpm and 4,000 kg above, and turns at 2 - 250 rpm in spindle mode with 6,640 / 8,840 Nm.
The drives are sized for the mass. The ram is moved by four AC motors. Along the side walls the cross rail is driven through gear racks, with a pair of pinions engaged in each rack and each pinion on its own motor and planetary gearbox, an arrangement suited to a long X axis that can be extended in modules. Feed and rapid rates are 40, 40 and 50 m/min in X, Y and Z.
Spindles follow the MCG2318i lists. The standard unit is HSK-A100; fixed spindles run to 18,000 rpm in HSK-A63 or to 48 / 71 kW in HSK-T100, and the CyTec M21 changeable head comes as a vertical, horizontal or turning head, or as a 1- or 2-axis head.
Positioning error to ISO 230-2 is 0.009 mm on the linear axes. Through-spindle cooling is standard, at 23 l/min and 60 bar on the 5-axis machine or 40 l/min and 70 bar on the 3-axis machine.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 2,250 mm (88.6 in) |
| Z Axis Travel | 1,050 mm (41.3 in) 5-axis; 1,250 mm (49.2 in) 3-axis |
| Cutting Feed Rate | 40, 40, 50 m/min (X, Y, Z) |
| Rapid Traverse Xyz | 40, 40, 50 m/min (X, Y, Z) |
| Acceleration | 3, 3, 5 m/s2 (X, Y, Z) |
| Table Size | ø 2,100 mm (82.7 in) rotary table (5-axis); 4,000 × 2,000 mm (157.5 × 78.7 in) fixed clamping plate (3-axis) |
| Max Table Load | 10,000 kg (22,046 lb) (fixed table) |
| Rotary Table Max Load | 9,000 kg (19,841 lb) up to 50 rpm; 4,000 kg (8,818 lb) above 50 rpm |
| Rotary Table Speed | 2 - 250 rpm in spindle mode; 0 - 50 rpm in C-axis mode |
| Rotary Table Torque | 6,640 / 8,840 Nm (4,898 / 6,520 lb-ft) |
| Rotary Table Clamping Torque | 9,500 Nm (7,007 lb-ft) (12 MPa) |
| Distance Spindle Nose to Table | +120 to +1,170 mm (4.7 to 46.1 in) 5-axis; +530 to +1,780 mm (20.9 to 70.1 in) 3-axis |
| Table Height From Floor | 820 mm (32.3 in) 5-axis; 610 mm (24.0 in) 3-axis |
| Distance Between Side Walls | 3,010 mm (118.5 in); orbital diameter 2,950 mm (116.1 in) on the 5-axis machine |
| Distance Between Covers X | 5,000 mm (196.9 in) |
| Positioning Accuracy | 0.009 mm (ISO 230-2) |
| Repeatability | 0.004 mm (ISO 230-2) |
| B Axis Positioning Accuracy | 12 arc sec |
| C Axis Positioning Accuracy Rotary Table | 6 arc sec |
| Spindle Unit HSK A63 18000 RPM | 18,000 rpm; 25 / 31 kW (33.5 / 41.6 hp); 160 / 200 Nm (118 / 148 lb-ft) |
| Spindle Unit HSK A100 14000 RPM | 14,000 rpm; 25 / 37 kW (33.5 / 49.6 hp); 160 / 236 Nm (118 / 174 lb-ft) |
| Spindle Unit HSK T100 12000 RPM | 12,000 rpm; 25 / 30 kW (33.5 / 40.2 hp); 119 / 143 Nm (87.8 / 105 lb-ft) (turning clamping of 690 Nm) |
| Spindle Unit HSK T100 10000 RPM | 10,000 rpm; 48 / 71 kW (64.4 / 95.2 hp); 300 / 452 Nm (221 / 333 lb-ft) (turning clamping of 1,000 Nm) |
| Spindle Unit Cytec M21 Head HSK A63 18000 RPM | 18,000 rpm; 21 / 27 kW (28.2 / 36.2 hp); 100 / 130 Nm (73.8 / 95.9 lb-ft) |
| Spindle Unit Cytec M21 Head HSK A100 12000 RPM 42 Kw | 12,000 rpm; 34 / 42 kW (45.6 / 56.3 hp); 160 / 200 Nm (118 / 148 lb-ft) |
| Spindle Unit Cytec M21 Head HSK A100 12000 RPM 53 Kw | 12,000 rpm; 42 / 53 kW (56.3 / 71.1 hp); 200 / 250 Nm (148 / 184 lb-ft) |
| Spindle Unit Cytec M21 Head HSK T100 10000 RPM | 10,000 rpm; 27 / 31 kW (36.2 / 41.6 hp); 130 / 150 Nm (95.9 / 111 lb-ft) (turning head; turning clamping of 2,000 Nm) |
| Tool Capacity | 50 (128 option) |
| Max Tool Diameter (full magazine) | 110 mm (4.3 in); 160 mm (6.3 in) without adjacent tools |
| Max Tool Length | 380 mm (15.0 in); 615 mm (24.2 in) in 5 stations |
| Max Tool Weight | 8 kg (18 lb) HSK63; 15 kg (33 lb) HSK100 |
| Tool Change Time | 3.5 s |
| Through Spindle Coolant | 23 l/min at 60 bar (5-axis); 40 l/min at 70 bar (3-axis) |
| Coolant Volume | 2,300 l (5-axis); 1,230 l (3-axis) |
| Power Requirement | 3 × 400 V / 50 Hz or 3 × 480 V / 60 Hz |
| Power Input | 90 kVA (5-axis); 70 kVA (3-axis) |
| Full Load Current | 170 A (5-axis); 135 A (3-axis) |
| Air Pressure | 0.6 - 0.8 MPa |
| Machine Weight | 53,000 kg (116,843 lb) 5-axis; 55,000 kg (121,252 lb) 3-axis (without tool changer, chip conveyor and electrical cabinet) |
Specifications sourced from tajmac-zps.cz — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,000 mm (118.1 in) of X and 2,250 mm (88.6 in) of Y travel, with X extendable in 2 m steps
- ø 2,100 mm (82.7 in) rotary table for 9,000 kg, or a 4,000 × 2,000 mm fixed plate for 10,000 kg
- Rack and twin-pinion X drive; ram moved by four AC motors
- Box-in-box cross slide on a fully symmetrical frame
- Milling and turning with the rotary table at up to 250 rpm and HSK-T100 spindles
- Tool cooling by coolant and by air through the spindle axis as standard equipment
Limitations
- Weighs 53,000 kg (116,843 lb) in 5-axis form, without tool changer, chip conveyor and electrical cabinet
- Acceleration is 3 m/s2 in X and Y
- Z travel on the 5-axis machine is 1,050 mm, shorter than the 1,250 mm of the 3-axis machine
- CNC head, turning head, probes and the HSK-T100 spindle are optional equipment
- Requires a concrete foundation, to which the side walls and the table base are fastened with anchoring bolts
Best For
Frequently Asked Questions
01
It is the maker's name for the range. The brochure says the machine of 3022 number is the basic model of the INFINITY range, and that the modularity of the construction enables elongation of the X-axis by 2 m steps to 5022, 7022 and so on.
02
The 3-axis machine has a 4,000 × 2,000 mm fixed clamping plate, 1,250 mm of Z, a 70 kVA supply and weighs 55,000 kg. The 5-axis machine has a ø 2,100 mm rotary table, 1,050 mm of Z, a 90 kVA supply and weighs 53,000 kg. X and Y travels of 3,000 mm and 2,250 mm are the same.
03
The fixed table takes a maximal load of 10,000 kg. The rotary table takes 9,000 kg up to 50 rpm and 4,000 kg above 50 rpm. Its speed range in spindle mode is 2 - 250 rpm, its nominal and maximal torque 6,640 / 8,840 Nm, and its torque at clamping 9,500 Nm.
04
By rack and pinion. Gear racks are located on the upper side of the side walls on the left and right of the cross rail; a pair of pinions engages each rack, and each pinion is driven by a motor with its own planetary gearbox. The sliding ram is moved by four AC regulating motors with digital control.
05
An HSK-A100 spindle unit. The fixed-spindle list gives HSK-A100 at 14,000 rpm with 25 / 37 kW and 160 / 236 Nm, alongside HSK-A63 at 18,000 rpm and two HSK-T100 turning units. For 5- and 6-axis machines the CyTec M21 changeable head offers units up to 42 / 53 kW and 200 / 250 Nm at 12,000 rpm.
