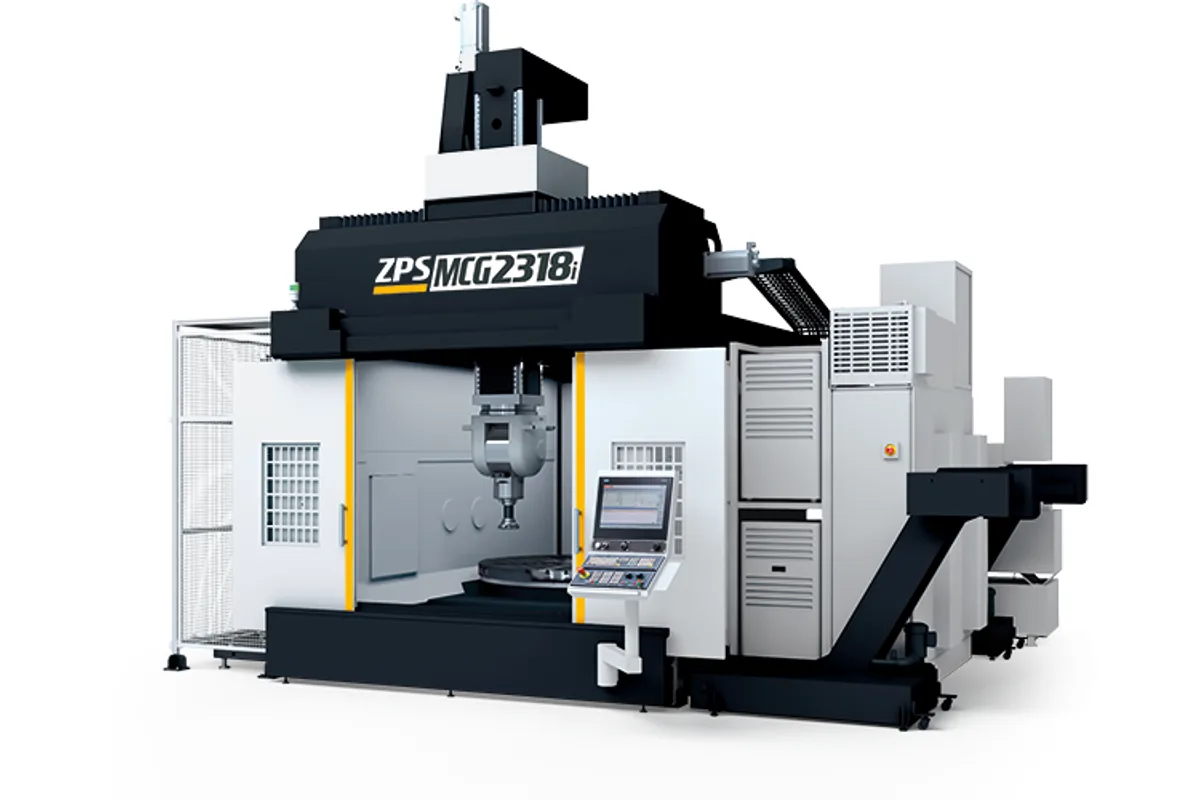

Tajmac-ZPS MCG2318i
Image: tajmac-zps.cz, Tajmac-ZPS
Key Specifications
Tool Capacity
Table Size
Accuracy
Repeatability
x axis travel
y axis travel
How much does the Tajmac-ZPS MCG2318i cost?
Price estimate
We do not have a price for the Tajmac-ZPS MCG2318i that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Configured to order from three to six axes, the MCG2318i is a large upper-gantry machining centre with 2,300 mm (90.6 in) of X travel on the cross rail and 1,050 mm of Z on the ram. Y is 1,400 mm, or 1,500 mm on the 3-axis model. What sits under the gantry and what hangs from the ram are both chosen by the buyer.
Start with the table. A fixed table offers a 2,520 × 1,600 mm clamping surface rated at 15,000 kg/m2. A rotary table of Ø 1,800 mm carries 10,000 kg up to 50 rpm and 5,000 kg above that, runs at 250 rpm in spindle mode for turning, and produces 6,640 / 8,840 Nm. The third choice, a combined table, sets a Ø 1,500 mm rotary part into the fixed surface so that long prismatic parts and round turned parts share one machine.
Then the head. As a 3- or 4-axis machine without exchange heads, the ram holds a fixed electrospindle; the standard unit has an HSK-A100 taper, and the list runs from HSK-A63 at 18,000 rpm to an HSK-T100 turning spindle at 10,000 rpm with 48 / 71 kW and 300 / 452 Nm. As a 5- or 6-axis machine it carries a CyTec M21 exchange head, tilting ±110° on B and rotating ±270° on C. Head spindles are lighter at the top end, 21 / 27 kW for the 18,000 rpm HSK-A63 unit, but an HSK-A100 head unit with 42 / 53 kW and 200 / 250 Nm at 12,000 rpm is available.
The cross slide runs inside the cross rail, a box-in-box design, and the frame is described as fully symmetrical. Axes move at 50 m/min with 5 m/s2. Positioning error to ISO 230-2 is 0.009 mm with 0.004 mm repeatability, on HEIDENHAIN LC115 scales.
The tool changer holds 50 tools, 128 as an option, and has 5 positions for tools 615 mm long. Shipping weight is 32,000 kg without tool changer and accessories, and the machine is anchored to a concrete foundation.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,300 mm (90.6 in) |
| Y Axis Travel | 1,400 mm (55.1 in); 1,500 mm (59.1 in) 3-axis model |
| Z Axis Travel | 1,050 mm (41.3 in) |
| B Axis Range | ±110° (CNC head) |
| C Axis Range | ±270° (CNC head) |
| C Axis Range Rotary Table | 360° (rotary table) |
| Rapid Traverse Xyz | 50 m/min |
| Cutting Feed Rate | 50 m/min |
| Acceleration | 5 m/s² |
| Rotary Table Speed | 250 rpm in spindle mode; 50 rpm in C-axis mode |
| Table Size | 2,520 × 1,600 mm (99.2 × 63.0 in) |
| Max Table Load | 15,000 kg/m2 |
| Rotary Table Size | Ø 1,800 mm (Ø 70.9 in) |
| Rotary Table Max Load | 10,000 kg (22,046 lb) up to 50 rpm; 5,000 kg (11,023 lb) above 50 rpm |
| Rotary Table Torque | 6,640 / 8,840 Nm (4,898 / 6,520 lb-ft) |
| Rotary Table Clamping Torque | 9,500 Nm (7,007 lb-ft) (12 MPa) |
| Combined Table Size | Ø 1,500 mm (59.1 in) rotary part; 2,520 x 1,600 mm (99.2 x 63.0 in) fixed part |
| Table Height From Floor | 805 mm (31.7 in) |
| Distance Spindle Nose to Table | 200 to 1,250 mm (7.9 to 49.2 in) (3-axis model, spindle + fixed table) |
| Distance Between Side Walls | 2,050 / 2,000 mm (80.7 / 78.7 in) |
| Positioning Accuracy | 0.009 mm (ISO 230-2) |
| Repeatability | 0.004 mm (ISO 230-2) |
| Measuring System | Direct measuring HEIDENHAIN LC115 |
| B Axis Positioning Accuracy | 12 arc sec |
| C Axis Positioning Accuracy Rotary Table | 6 arc sec |
| Spindle Unit HSK A63 18000 RPM | 18,000 rpm; 25 / 31 kW (33.5 / 41.6 hp); 160 / 200 Nm (118 / 148 lb-ft) |
| Spindle Unit HSK A100 14000 RPM | 14,000 rpm; 25 / 37 kW (33.5 / 49.6 hp); 160 / 236 Nm (118 / 174 lb-ft) |
| Spindle Unit HSK T100 12000 RPM | 12,000 rpm; 25 / 30 kW (33.5 / 40.2 hp); 119 / 143 Nm (87.8 / 105 lb-ft) (turning clamping of 690 Nm) |
| Spindle Unit HSK T100 10000 RPM | 10,000 rpm; 48 / 71 kW (64.4 / 95.2 hp); 300 / 452 Nm (221 / 333 lb-ft) (turning clamping of 1,000 Nm) |
| Spindle Unit Cytec M21 Head HSK A63 18000 RPM | 18,000 rpm; 21 / 27 kW (28.2 / 36.2 hp); 100 / 130 Nm (73.8 / 95.9 lb-ft) |
| Spindle Unit Cytec M21 Head HSK A100 12000 RPM 42 Kw | 12,000 rpm; 34 / 42 kW (45.6 / 56.3 hp); 160 / 200 Nm (118 / 148 lb-ft) |
| Spindle Unit Cytec M21 Head HSK A100 12000 RPM 53 Kw | 12,000 rpm; 42 / 53 kW (56.3 / 71.1 hp); 200 / 250 Nm (148 / 184 lb-ft) |
| Spindle Unit Cytec M21 Head HSK T100 10000 RPM | 10,000 rpm; 27 / 31 kW (36.2 / 41.6 hp); 130 / 150 Nm (95.9 / 111 lb-ft) (turning head; turning clamping of 2,000 Nm) |
| Tool Capacity | 50 (128 option) |
| Max Tool Diameter (full magazine) | 110 mm (4.3 in); 160 mm (6.3 in) without adjacent tools |
| Max Tool Length | 380 mm (15.0 in); 615 mm (24.2 in) in 5 positions |
| Max Tool Weight | 8 kg (18 lb) HSK63; 15 kg (33 lb) HSK100 |
| Tool Change Time | 3.5 s |
| Power Requirement | 3 x 400 V / 50 Hz |
| Power Input | 90 kVA |
| Full Load Current | 170 A |
| Air Pressure | 0.6 – 0.8 MPa |
| Shipping Dimensions | 4,800 × 3,250 × 4,000 mm (189.0 × 128.0 × 157.5 in) |
| Machine Weight | 32,000 kg (70,547 lb) (without tool changer and accessories) |
Specifications sourced from tajmac-zps.cz — verified 2026-10-04
Strengths & Limitations
Strengths
- Fixed, rotary (Ø 1,800 mm) or combined table, chosen at order
- Rotary table carries 10,000 kg (22,046 lb) up to 50 rpm and turns at 250 rpm in spindle mode
- CyTec M21 exchange head with B ±110° and C ±270° for 5- and 6-axis work
- Fixed-spindle options up to 48 / 71 kW and 300 / 452 Nm on the HSK-T100 turning unit
- Box-in-box cross rail on a fully symmetrical frame; 50 m/min rapid traverse
- 50-tool changer, 128 optional, with 5 positions for tools 615 mm (24.2 in) long
Limitations
- Needs a concrete foundation with anchoring bolts
- The 18,000 rpm head spindle has 21 / 27 kW and 100 / 130 Nm, less than the fixed HSK-A63 electrospindle
- Rotary table load halves to 5,000 kg (11,023 lb) above 50 rpm
- The CNC head, turning heads and larger tool changer are optional equipment
- Connected load of 90 kVA at 170 A
Best For
Frequently Asked Questions
01
Three. A fixed table with a 2,520 × 1,600 mm clamping surface and a maximal load of 15,000 kg/m2; a rotary table of Ø 1,800 mm with 10,000 kg up to 50 rpm; or a combined table with a Ø 1,500 mm rotary part and a 2,520 x 1,600 mm fixed part rated for 10,000 kg. All have the clamping surface 805 mm from the floor.
02
The maker calls it a multifunctional 3- to 6-axis solution. X, Y and Z are the base. The rotary table adds C´ over 360°. A CNC head adds B at ±110° and C at ±270°. The standard equipment list offers a fixed, rotary or integrated working table and a spindle unit with HSK-A100 taper.
03
Yes, when equipped for it. The rotary table reaches 250 rpm in spindle mode, and the brochure lists HSK-T100 turning spindles and a CyTec turning head with a turning clamping of 2,000 Nm. Rotary table and heads with turning capabilities appear under optional equipment.
04
HSK-A63 at 18,000 rpm with 21 / 27 kW and 100 / 130 Nm; HSK-A100 at 12,000 rpm with 34 / 42 kW and 160 / 200 Nm, or with 42 / 53 kW and 200 / 250 Nm; and an HSK-T100 turning head at 10,000 rpm with 27 / 31 kW and 130 / 150 Nm.
05
The MCG3022i is the next size: 3,000 mm of X, 2,250 mm of Y and a Ø 2,100 mm rotary table, at 53,000 kg in 5-axis form. The MCG2318i has 2,300 mm of X, a Ø 1,800 mm rotary table and ships at 32,000 kg. Both use the same spindle and CyTec M21 head lists.
