SW BA W06-11
Key Specifications
Spindle Taper
Spindle Power
number of spindles
spindle speed range
spindle torque
x axis travel
How much does the SW BA W06-11 cost?
Price estimate
We do not have a price for the SW BA W06-11 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The SW BA W06-11 is the single-spindle, single-table model of the BA W06 line, SW's linear-drive machines in the 600 mm class. One spindle has the whole X axis to itself: 1,150 mm (45.3 in), with 630 mm (24.8 in) of Y and 510 mm (20.1 in) of Z.
That X travel is nearly twice what each spindle gets on the twin-spindle models, and it defines the machine. Long parts such as battery trays, wide gearbox housings or coupling housings can be machined in one clamping without being split between two work spaces.
Three spindle interfaces are listed. HSK-A63 comes with a 1-17,500 rpm range, 35 kW and 80 Nm. HSK-A80 and HSK-A100 come with 1-12,500 rpm, 42 kW and 200 Nm, both at 10% ED. A 10% duty cycle is a short-term rating, so the continuous figures should be requested for any process that leans on the larger spindles.
SW calls the BA W06 the fastest machining center of its kind and credits the linear drives. On a single-spindle machine with long axis moves the benefit shows in positioning time between features that are far apart. SW's table prints the interference circle for this model with an unclear figure, so that row is not reproduced here. Confirm it with SW along with the magazine capacity.
Full Specifications
| Parameter | Value |
|---|---|
| Number of Spindles | 1 |
| Spindle Speed Range | 1 – 17,500 min-1 (HSK-A63); 1 – 12,500 min-1 (HSK-A80, HSK-A100) |
| Spindle Motor Power | 35 kW (46.9 hp) per spindle (HSK-A63); 42 kW (56.3 hp) at 10% ED per spindle (HSK-A80, HSK-A100) |
| Spindle Torque | 80 Nm (59.0 lb-ft) per spindle (HSK-A63); 200 Nm (147.5 lb-ft) at 10% ED per spindle (HSK-A80, HSK-A100) |
| Spindle Taper | HSK-A63, HSK-A80 or HSK-A100 |
| X Axis Travel | 1,150 mm (45.3 in) |
| Y Axis Travel | 630 mm (24.8 in) |
| Z Axis Travel | 510 mm (20.1 in) |
Specifications sourced from sw-machines.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,150 mm (45.3 in) of X travel for a single spindle
- Linear drive technology; SW calls the BA W06 the fastest machining center of its kind
- HSK-A63, HSK-A80 or HSK-A100 spindle, up to 42 kW and 200 Nm at 10% ED
- 17,500 rpm with the HSK-A63 spindle
Limitations
- One spindle, one part per cycle
- The 42 kW and 200 Nm figures are rated at 10% ED only
- Single work table, so loading stops the spindle
- SW's page gives no clean interference-circle figure for this model
Best For
Frequently Asked Questions
01
1,150 mm (45.3 in). Y is 630 mm (24.8 in) and Z is 510 mm (20.1 in). The twin-spindle BA W06-21 has the same Y and Z but 600 mm (23.6 in) of X per spindle.
02
Both have one spindle and the same travels. In SW's naming scheme the last digit is the number of work tables, so the BA W06-11 has one and the BA W06-12 has two. SW lists a Ø 675 x 1,430 mm interference circle for the BA W06-12.
03
HSK-A63 with a 1-17,500 rpm range, 35 kW and 80 Nm, or HSK-A80 or HSK-A100 with a 1-12,500 rpm range, 42 kW and 200 Nm. SW rates the 42 kW and 200 Nm figures at 10% ED.
04
For acceleration. SW's feature list names highest dynamics due to linear drive technology and calls the machine the fastest machining center of its kind. With 1,150 mm (45.3 in) of X to cross, fast traverses between features cut non-productive time.
More from SW
Other Horizontal Machining Centers (HMC)

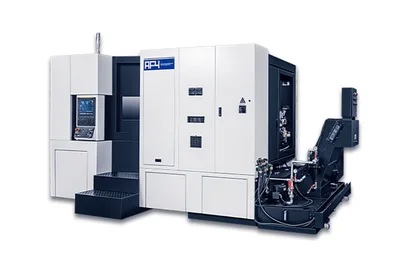

Hwacheon AF-4
HNK HTC-1250
DN Solutions NHP 8000

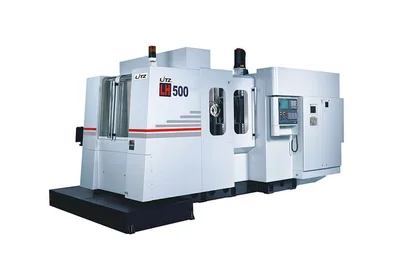

Litz LH-500B
