Litz LH-500B

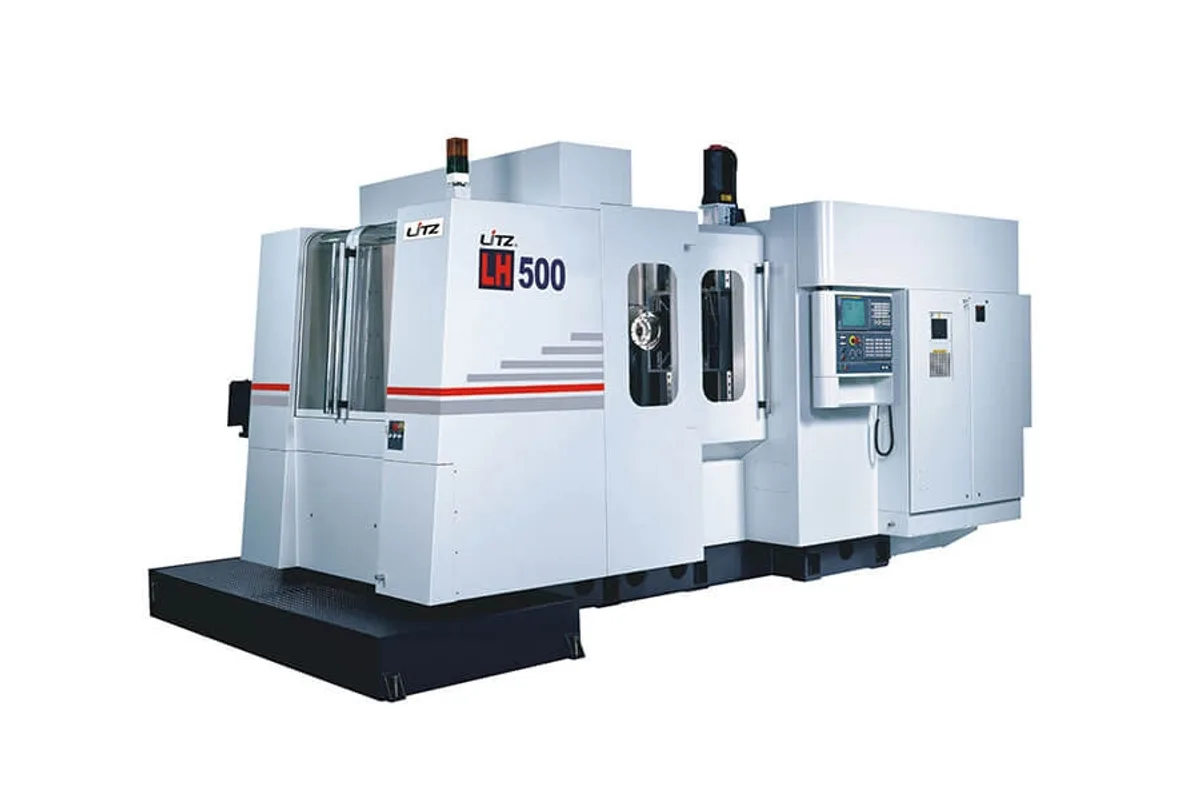

Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
Max Workpiece ⌀
x axis travel
y axis travel
How much does the Litz LH-500B cost?
Price estimate
We do not have a price for the Litz LH-500B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz LH-500B is the large-taper version of the 500 mm LH horizontal machining center. Tool shank is ISO 50 or BBT-50, spindle speed is 6,000 rpm, and travels are 700 mm (27.6 in) in X with 650 mm (25.6 in) in Y and Z.
Put the two 500 mm models side by side and the pattern is clear. The LH-500B runs at 6,000 rpm with 40 pockets where the LH-500A runs at 10,000 rpm with 60, and in return it takes tools of 20 kg (44 lb), 120 mm (4.7 in) in diameter with full pockets and 230 mm (9.1 in) without neighbours. The front spindle bearing is 100 mm (3.9 in) in bore where the LH-500A has 70 mm. It is built to hold big cutters steadily.
One figure does not change, and buyers should notice it. Maximum spindle torque is listed at 120 Nm (89 lb-ft) and the motor at 15 / 18.5 kW (20.1 / 24.8 hp), the same as the A model. Drive is direct. So the B model adds tool size and spindle stiffness, not torque, and is suited to large-diameter boring and face milling at moderate depth in cast iron more than to heavy roughing in alloy steel.
Forty tools are standard and a 60T magazine is listed as an option, as is an 8,000 rpm spindle. Pallets are 500 x 500 mm (19.7 x 19.7 in) and carry 500 kg (1,102 lb). Pallet change takes 18 s and rapids are 36,000 mm/min (1,417 ipm).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 700 mm (27.6 in) |
| Y Axis Travel | 650 mm (25.6 in) |
| Z Axis Travel | 650 mm (25.6 in) |
| Spindle Center to Pallet Face | 50 to 700 mm (2.0 to 27.6 in) |
| Spindle Nose to Pallet Center | 150 to 800 mm (5.9 to 31.5 in) |
| Pallet Size | 500 x 500 mm (19.7 x 19.7 in) |
| Max Workpiece Diameter | 700 mm (27.6 in) diameter |
| Max Pallet Load | 500 kg (1,102 lb) |
| Max Workpiece Height | 800 mm (31.5 in) |
| Pallet Indexing | 1° |
| Max Spindle Speed | 6,000 rpm |
| Spindle Torque | 120 Nm (89 lb-ft) |
| Spindle Bearing Inner Diameter | 100 mm (3.9 in) |
| Spindle Transmission | Direct |
| Rapid Traverse Xyz | 36,000 mm/min (1,417 ipm) |
| Cutting Feed Rate | 1-10,000 mm/min (up to 394 ipm) |
| Tool Shank | ISO 50 or BBT-50 |
| Tool Capacity | 40 |
| Max Tool Diameter (full magazine) | 120 mm (4.7 in); 230 mm (9.1 in) without adjacent tool |
| Max Tool Length | 380 mm (15.0 in) |
| Max Tool Weight | 20 kg (44 lb) |
| Tool Change Time | 5 s (tool to tool) |
| Tool Selection Method | Fixed Address |
| Pallets | 2 |
| Pallet Change Type | Rotary Type |
| Pallet Change Time | 18 s |
| CNC Control | FANUC 0i-MF |
| Spindle Motor Power | 15 / 18.5 kW (20.1 / 24.8 hp) |
| Spindle Motor Torque | 120 Nm (89 lb-ft) |
| Axis Motors Xyzb | 7 / 7 / 4 / 1.6 kW |
| Hydraulic Pump Motor | 2.2 kW |
| Coolant Pump Motor | 1.6 kW |
| Power Requirement | 42 kVA |
| Hydraulic Tank Capacity | 60 L |
| Lubrication Tank Capacity | 4 L |
| Coolant Tank Capacity | 760 L |
| Machine Height | 2,980 mm (117.3 in) |
| Floor Area | 5,000 x 3,200 mm (196.9 x 126.0 in) |
| Machine Weight | 15,000 kg (33,069 lb) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- ISO 50 or BBT-50 tooling on a 500 mm pallet machine
- Tools up to 20 kg (44 lb) and 230 mm (9.1 in) in diameter without adjacent tools
- 100 mm (3.9 in) spindle bearing bore
- 36,000 mm/min (1,417 ipm) rapids and an 18 s pallet change
- 60T magazine and 8,000 rpm spindle available as options
Limitations
- Spindle torque is 120 Nm (89 lb-ft), no higher than the LH-500A
- 40 tools as standard against 60 on the LH-500A
- Spindle speed of 6,000 rpm as standard
- Pallet load of 500 kg (1,102 lb) is small for 50-taper cutting
Best For
Frequently Asked Questions
01
ISO 50 or BBT-50 tool shanks. The magazine holds 40 tools, each up to 380 mm (15.0 in) long and 20 kg (44 lb), with a diameter of 120 mm (4.7 in), or 230 mm (9.1 in) without adjacent tools. A 60T magazine is an option.
02
Not according to the table. Both list 120 Nm (89 lb-ft) of spindle torque and a 15 / 18.5 kW motor. The LH-500B has a larger spindle bearing, 100 mm against 70 mm on the LH-500A, and takes heavier tools.
03
Two pallets of 500 x 500 mm (19.7 x 19.7 in), each carrying 500 kg (1,102 lb). Maximum workpiece size is 700 mm (27.6 in) in diameter and 800 mm (31.5 in) in height. Pallet indexing is 1°.
04
The standard spindle runs at 6,000 rpm with direct transmission, oil cooling and an air seal system. An 8,000 rpm spindle is listed as an option, and coolant through the spindle can be added.
