JTEKT FH800SX-i

Q: How much does the JTEKT FH800SX-i cost?

The price estimate for the JTEKT FH800SX-i is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/jtekt-fh800sx-i#price; the request is passed to JTEKT or an authorised dealer.

Specs verified 2026-10-05 · jtektmachinery.com Updated 2026-10-05

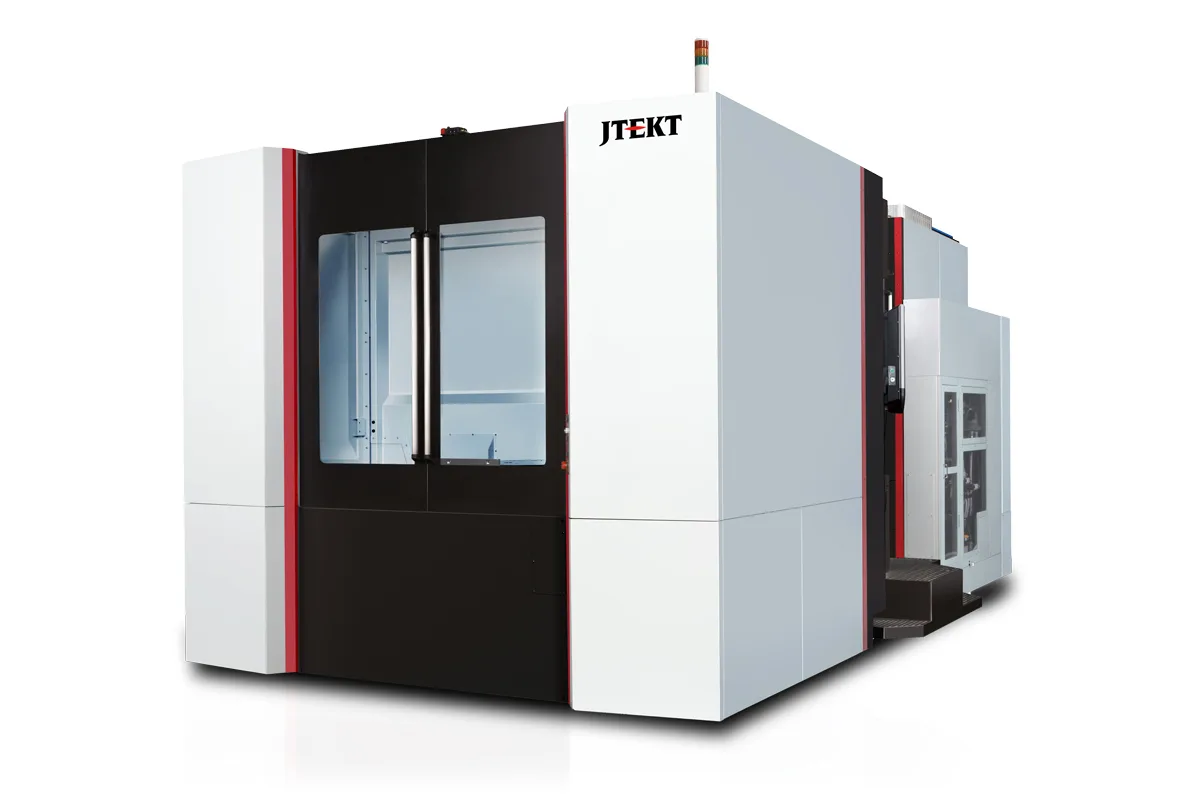

JTEKT FH800SX-i horizontal machining center

Image: jtektmachinery.com, JTEKT

Key Specifications

Max Spindle

8,000, 15,000 RPM

Spindle Taper

CAT50

Tool Capacity

60, 121, 240, 330

pallet size

31.50 x 31.50 in (800 x 800 mm)

x axis travel

57.09 in (1,450 mm)

y axis travel

49.21 in (1,250 mm)

How much does the JTEKT FH800SX-i cost?

Price estimate

Uncertain

We do not have a price for the JTEKT FH800SX-i that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The JTEKT FH800SX-i is a CAT50 horizontal machining center on a 31.50 x 31.50 in (800 x 800 mm) pallet, and its travels are long for that pallet: 57.09 in (1,450 mm) in X, 49.21 in (1,250 mm) in Y and 61.02 in (1,550 mm) in Z. The pallet carries 5,500 lb (2,500 kg).

Z is the longest axis. That is not common on a horizontal, and it has a practical use. A part can swing to the full 59.05 in (1,500 mm) diameter and the table still has room to back away for a long boring bar or an angle head. Maximum workpiece height is also 59.05 in (1,500 mm), so the working space is close to a cylinder as tall as it is wide.

Two spindle speeds appear in the table, 8,000 and 15,000 RPM, with one torque figure, 887 ft-lb (1,202 Nm). JTEKT states that the 8,000 RPM spindle is the standard configuration and the 15,000 RPM spindle an option. The 8,000 RPM unit uses a dual cylindrical roller bearing with a 110mm bearing inner diameter; the 15,000 RPM unit has four front spindle bearings, variable hydraulic preload and a 120mm bearing inner diameter. The table does not tie the torque figure to either one, so settle that before choosing.

The structure follows from the travels. Y and Z are each driven by dual ballscrews, the base is Meehanite cast iron, and the spindle carriage rides on six guide trucks. Rapid feedrate is 2,126 ipm (54 m/min), a step below the 2,362 ipm (60 m/min) of the smaller FH5500SX-i, which is the cost of moving a bigger column and table. Tool storage runs 60, 121, 240 or 330.

Full Specifications

Parameter	Value
Pallet Size	31.50 x 31.50 in (800 x 800 mm)
X Axis Travel	57.09 in (1,450 mm)
Y Axis Travel	49.21 in (1,250 mm)
Z Axis Travel	61.02 in (1,550 mm)
Max Workpiece Swing	59.05 in (1,500 mm)
Max Workpiece Height	59.05 in (1,500 mm)
Max Pallet Load	5,500 lb (2,500 kg)
Spindle Torque	887 ft-lb (1,202 Nm)
Max Spindle Speed	8,000, 15,000 RPM
Spindle Taper	CAT50
Rapid Traverse Xyz	2,126 ipm (54 m/min)
Tool Capacity	60, 121, 240, 330

Specifications sourced from jtektmachinery.com — verified 2026-10-05

Strengths & Limitations

Strengths

61.02 in (1,550 mm) of Z travel, longer than the 57.09 in (1,450 mm) X axis, for deep boring on large parts
5,500 lb (2,500 kg) pallet load on a 31.50 x 31.50 in (800 x 800 mm) pallet
Workpieces up to 59.05 in (1,500 mm) in both swing and height
887 ft-lb (1,202 Nm) of spindle torque on a CAT50 taper
Dual ballscrew drives on the Y-Axis and Z-Axis and a Meehanite cast iron base
Tool storage of 60, 121, 240 or 330

Limitations

The 15,000 RPM spindle is an option; the standard configuration is 8,000 RPM
One torque figure is listed for two spindles, and spindle power is not in the table
Rapid feedrate is 2,126 ipm (54 m/min), slower than the 2,362 ipm (60 m/min) of the FH5500SX-i
Parts over 5,500 lb (2,500 kg) with fixture need the FH1000SX, which lists 6,600 lb (3,000 kg)

Best For

Large housings and frames up to 59.05 in (1,500 mm) in swing and height Deep boring that uses the 61.02 in (1,550 mm) Z travel CAT50 roughing in steel and iron with 887 ft-lb (1,202 Nm) of torque Fixture loads up to 5,500 lb (2,500 kg)

Frequently Asked Questions

01 How big a part fits the FH800SX-i?

The maximum workpiece swing is 59.05 in (1,500 mm) and the maximum workpiece height is 59.05 in (1,500 mm), on a 31.50 x 31.50 in (800 x 800 mm) pallet. Maximum load on the pallet is 5,500 lb (2,500 kg). Travels are 57.09 in (1,450 mm) in X, 49.21 in (1,250 mm) in Y and 61.02 in (1,550 mm) in Z.

02 Which spindle comes as standard?

JTEKT states that the standard configuration has the 8,000 RPM spindle and that a 15,000 RPM spindle is available as an option. The 8,000 RPM spindle is described with a dual cylindrical roller bearing and a 110mm bearing inner diameter, the 15,000 RPM spindle with four front bearings, variable hydraulic preload and a 120mm bearing inner diameter. Both have a removable spindle taper design.

03 What is the spindle torque?

The table gives 887 ft-lb (1,202 Nm) on a CAT50 taper. It lists that single figure beside two spindle speeds, 8,000 and 15,000 RPM, and does not say which spindle it describes. Spindle power is not listed either. Ask for the curve of the spindle being quoted.

04 How does the FH800SX-i compare with the FH1000SX?

The FH1000SX is the next size up, with a 39.37 x 31.5 in (1,000 x 800 mm) pallet and 72.83 in (1,850 mm) of Z travel, against 31.50 x 31.50 in (800 x 800 mm) and 61.02 in (1,550 mm) on the FH800SX-i. Both tables list 887 ft-lb (1,202 Nm) of torque and a rapid feedrate of 2,126 ipm (54 m/min).

05 Which control is fitted?

The TOYOPUC-Touch HMI, described by JTEKT as a fully functional touch screen overlay running on FANUC 31iMB Plus, with built in functions for operators, maintenance technicians and manufacturing management.
