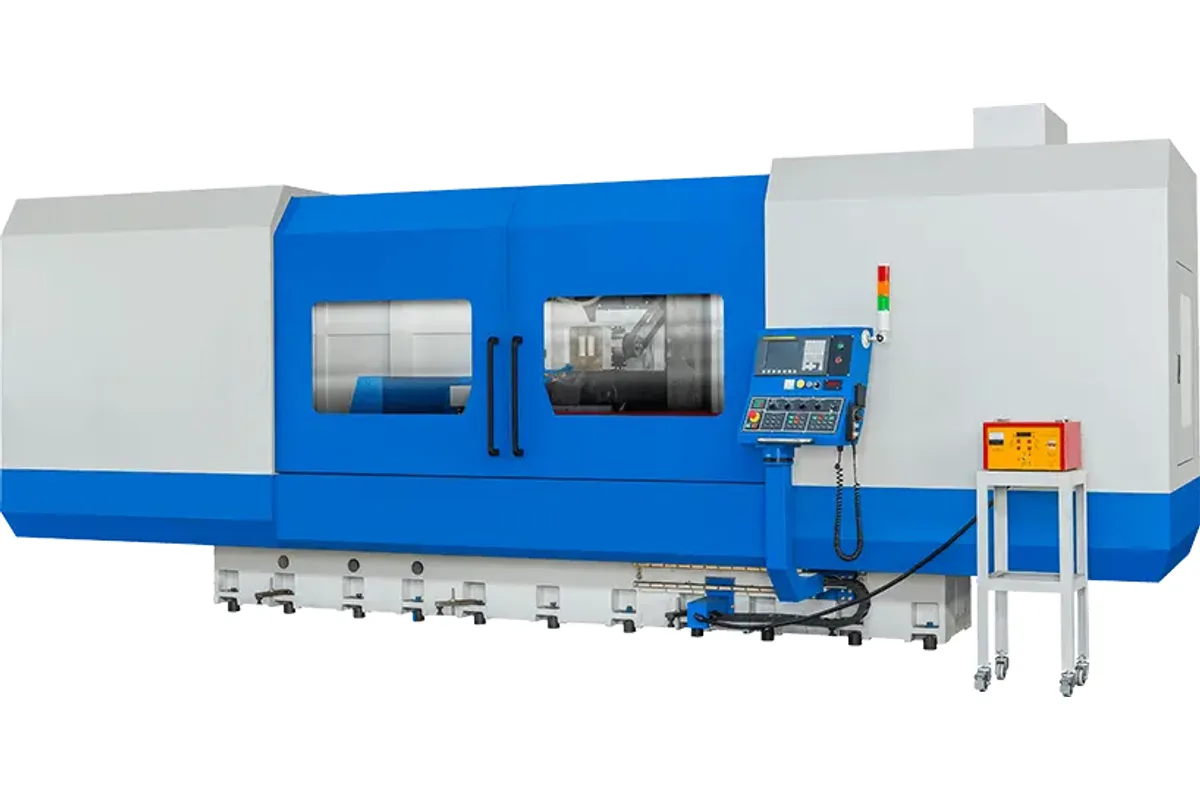

Supertec TPL-2480CNC
Image: supertec-grinder.com, Supertec
Key Specifications
Table Size
Spindle Power
x axis travel
z axis travel
distance spindle center to table
electromagnet weight
How much does the Supertec TPL-2480CNC cost?
Price estimate
We do not have a price for the Supertec TPL-2480CNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Two-metre racks in one piece: that is what the Supertec TPL-2480CNC adds to the maker's gear rack grinder line. The table is 600 × 2,000 mm (24 × 80 in) and the X axis travels 2,050 mm (80 in), the longest of the three TPL-CNC models.
Longer racks mean fewer joints in a long axis, and every joint between rack sections is a place where pitch error can enter. Grinding the full length in a single clamping avoids that. The price is mass. This machine weighs 9,800 kg (21,605 lb) net, and its electromagnet alone is 660 kg.
Note what does not increase. Table load is 2,000 kg (4,409 lb), the same as the TPL-2460CNC, so the heavier magnet leaves less of the rating for the work. The spindle is still 7.5 HP (5.6 kW) with a Ø405 × 50 × Ø127 mm (Ø16 × 2 × Ø5 in) wheel at 1,800 rpm. Table feed is 8 m/min at most, and a full-length pass on this bed takes correspondingly longer than on the short machines.
Overall dimensions are 4,500 × 2,300 × 2,500 mm (177 × 91 × 98 in). Cross travel is 625 mm (25 in) with a rapid of 1~15 m/min, and the Y axis rapids at 25 m/min. As with its siblings, Supertec publishes capacities and drives for this model but no module range, so a sample rack drawing should go to the maker with the enquiry.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 600 × 2,000 mm (24 × 80 in) |
| X Axis Travel | 2,050 mm (80 in) |
| Z Axis Travel | 625 mm (25 in) |
| Distance Spindle Center to Table | 700 mm (28 in) |
| Electromagnet Weight | 660 kg (1,455 lb) |
| Max Table Load | 2,000 kg (4,409 lb) |
| Table Speed Max | 8 m/min |
| X Axis Servo Motor | 2.2 kW (3.0 hp) |
| Y Axis Rapid Traverse | 25 m/min |
| Y Axis Handwheel Increment | 0.1 / 0.01 / 0.001 mm |
| Y Axis Servo Motor | 1.8 kW (2.4 hp) |
| Z Axis Rapid Traverse | 1~15 m/min |
| Z Axis Handwheel Increment | 0.1 / 0.01 / 0.001 mm |
| Z Axis Servo Motor | 1.8 kW (2.4 hp) |
| Wheel Size | Ø405 × 50 × Ø127 mm (Ø16 × 2 × Ø5 in) |
| Wheel Linear Velocity | 2,000 m/min |
| Spindle Motor Power | 7.5 HP (5.6 kW) |
| Wheel Spindle Speed | 1,800 rpm |
| Coolant Pump | 80 L/min 0.7kg/cm2 |
| Hydraulic Pump | 20 L/min 55kg/cm2 |
| Lubrication Pump | 5.2 L/min 10kg/cm2 |
| Machine Weight | 9,800 kg (21,605 lb) |
| Gross Weight | 10,000 kg (22,046 lb) |
| Machine Dimensions | 4,500 × 2,300 × 2,500 mm (177 × 91 × 98 in) |
Specifications sourced from supertec-grinder.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,050 mm (80 in) of X travel on a 600 × 2,000 mm (24 × 80 in) table
- Grinds a 2,000 mm rack without re-clamping
- 9,800 kg (21,605 lb) of machine under a 7.5 HP (5.6 kW) spindle
- Y axis rapid of 25 m/min and Z rapid of 1~15 m/min
- Shares its Ø405 × 50 × Ø127 mm (Ø16 × 2 × Ø5 in) wheel with the shorter models
Limitations
- Table load is 2,000 kg (4,409 lb), no higher than on the TPL-2460CNC
- The 660 kg electromagnet is the heaviest in the series and counts against that load
- Maximum table feed of 8 m/min over a 2,050 mm stroke
- Gross shipping weight of 10,000 kg (22,046 lb) needs heavy lifting gear
Best For
Frequently Asked Questions
01
The table is 600 × 2,000 mm (24 × 80 in) and the X axis travel is 2,050 mm (80 in). Z axis travel is 625 mm (25 in), and the spindle center can stand 700 mm (28 in) above the working table.
02
9,800 kg (21,605 lb) net and 10,000 kg (22,046 lb) gross. Its listed size is 4,500 × 2,300 × 2,500 mm (177 × 91 × 98 in). For comparison the TPL-2448CNC weighs 7,280 kg (16,050 lb).
03
The working table is rated for 2,000 kg (4,409 lb), and the electromagnet is listed at 660 kg. A rack, its supports and the magnet together have to stay inside the table rating, so check the blank weight per metre before planning a full-length load.
04
No. The X axis servo motor is 2.2 kW (3.0 hp), Y and Z are 1.8 kW, the spindle motor is 7.5 HP (5.6 kW) and the wheel spindle speed is 1,800 rpm. Only the table, travel, magnet and machine weight change with length.
