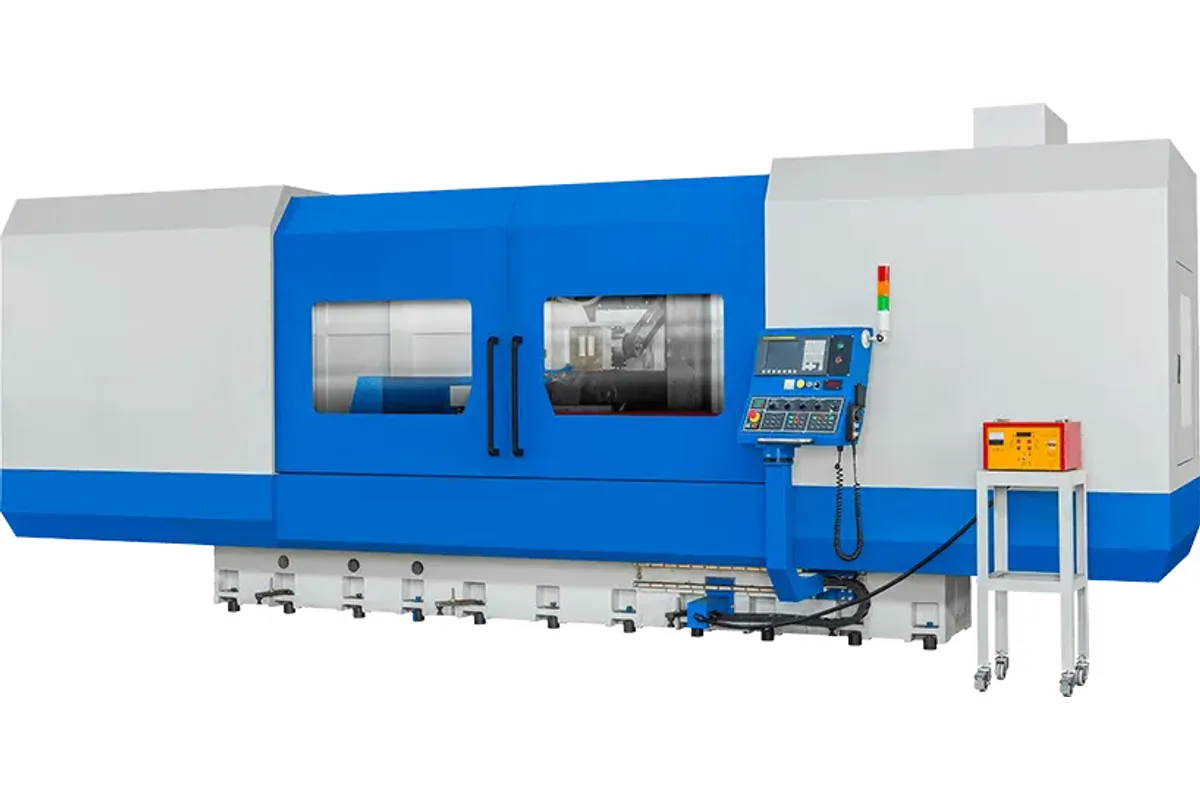

Supertec TPL-2460CNC
Image: supertec-grinder.com, Supertec
Key Specifications
Table Size
Spindle Power
x axis travel
z axis travel
distance spindle center to table
electromagnet weight
How much does the Supertec TPL-2460CNC cost?
Price estimate
We do not have a price for the Supertec TPL-2460CNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Mid-length racks, around a metre and a half, are the territory of the Supertec TPL-2460CNC. It is the middle model of the maker's three CNC gear rack grinders, with a 600 × 1,500 mm (24 × 60 in) table and 1,550 mm (60 in) of X axis travel.
Two figures separate it from the short machine. The table load goes up to 2,000 kg (4,409 lb), where the TPL-2448CNC is rated 1,700 kg (3,748 lb). And the machine itself grows a good deal: 4,520 × 2,280 × 2,450 mm (178 × 90 × 96 in) overall and 8,000 kg (17,637 lb) net. Width and height are unchanged, so the extra is all bed length, and it needs to be allowed for on the shop floor.
Everything that touches the tooth is common to the series. A 7.5 HP (5.6 kW) spindle turns a Ø405 × 50 × Ø127 mm (Ø16 × 2 × Ø5 in) wheel at 1,800 rpm. The cross axis travels 625 mm (25 in). Servo motors are 2.2 kW (3.0 hp) on X and 1.8 kW on Y and Z. Is a buyer giving anything up by choosing the longer bed? Not in the listed feeds: 8 m/min on the table and 25 m/min rapid on Y are the same.
Supertec's page describes the series as delivering precise and stable grinding operations but publishes no pitch or profile tolerance. The electromagnet weighs 495 kg, which comes out of the 2,000 kg table rating before the rack does.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 600 × 1,500 mm (24 × 60 in) |
| X Axis Travel | 1,550 mm (60 in) |
| Z Axis Travel | 625 mm (25 in) |
| Distance Spindle Center to Table | 700 mm (28 in) |
| Electromagnet Weight | 495 kg (1,091 lb) |
| Max Table Load | 2,000 kg (4,409 lb) |
| Table Speed Max | 8 m/min |
| X Axis Servo Motor | 2.2 kW (3.0 hp) |
| Y Axis Rapid Traverse | 25 m/min |
| Y Axis Handwheel Increment | 0.1 / 0.01 / 0.001 mm |
| Y Axis Servo Motor | 1.8 kW (2.4 hp) |
| Z Axis Rapid Traverse | 1~15 m/min |
| Z Axis Handwheel Increment | 0.1 / 0.01 / 0.001 mm |
| Z Axis Servo Motor | 1.8 kW (2.4 hp) |
| Wheel Size | Ø405 × 50 × Ø127 mm (Ø16 × 2 × Ø5 in) |
| Wheel Linear Velocity | 2,000 m/min |
| Spindle Motor Power | 7.5 HP (5.6 kW) |
| Wheel Spindle Speed | 1,800 rpm |
| Coolant Pump | 80 L/min 0.7kg/cm2 |
| Hydraulic Pump | 20 L/min 55kg/cm2 |
| Lubrication Pump | 5.2 L/min 10kg/cm2 |
| Machine Weight | 8,000 kg (17,637 lb) |
| Gross Weight | 8,800 kg (19,400 lb) |
| Machine Dimensions | 4,520 × 2,280 × 2,450 mm (178 × 90 × 96 in) |
Specifications sourced from supertec-grinder.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,550 mm (60 in) of X travel over a 600 × 1,500 mm (24 × 60 in) table
- Table rated for 2,000 kg (4,409 lb), against 1,700 kg (3,748 lb) on the TPL-2448CNC
- Same wheel, spindle and axis drives as the rest of the series, so tooling and programs carry over
- 625 mm (25 in) of cross travel on a 600 mm wide table
- Separate coolant, hydraulic and lubrication pumps listed at 80 L/min, 20 L/min and 5.2 L/min
Limitations
- Overall length of 4,520 mm (178 in) is far more than the table length suggests
- The 495 kg electromagnet uses part of the table load rating
- No tooth module range or accuracy class in the published table
- Spindle power stays at 7.5 HP (5.6 kW) on the longer bed
Best For
Frequently Asked Questions
01
600 × 1,500 mm (24 × 60 in), with an X axis travel of 1,550 mm (60 in) and a Z axis travel of 625 mm (25 in). The distance between spindle center and working table is 700 mm (28 in).
02
The maximum loading capacity of the working table is 2,000 kg (4,409 lb). Supertec lists the electromagnet weight separately as 495 kg, so the weight left for racks and fixtures is the rating less the magnet.
03
The TPL-2480CNC has a 600 × 2,000 mm (24 × 80 in) table and 2,050 mm (80 in) of X travel, and weighs 9,800 kg (21,605 lb). The TPL-2460CNC has 1,550 mm (60 in) of X travel and weighs 8,000 kg (17,637 lb). Table load is 2,000 kg (4,409 lb) on both.
04
Supertec gives the machine as 4,520 × 2,280 × 2,450 mm (178 × 90 × 96 in), at 8,000 kg (17,637 lb) net and 8,800 kg (19,400 lb) gross. Coolant, hydraulic and lubrication equipment is additional to that outline.
