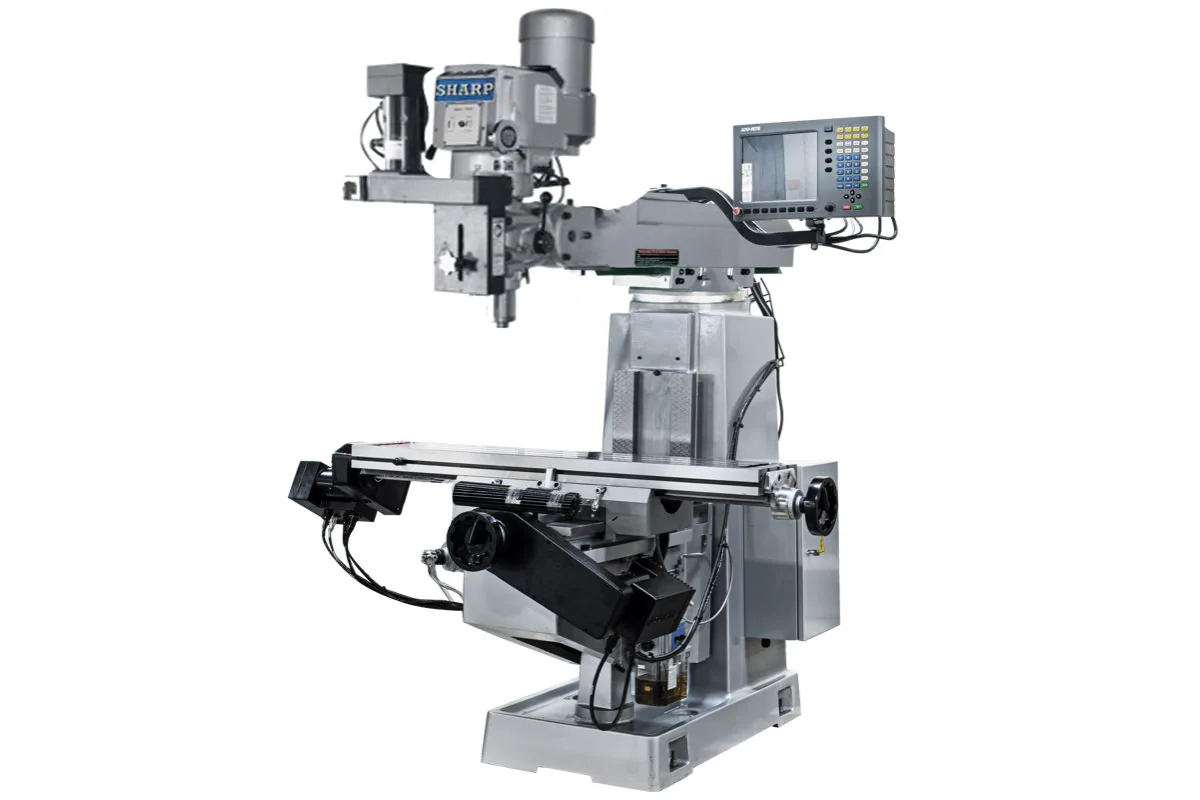

Sharp TMV-1-MP-3
Image: sharp-industries.com, Sharp
Key Specifications
Max Spindle
Spindle Taper
Spindle Power
x axis travel
y axis travel
z axis travel
How much does the Sharp TMV-1-MP-3 cost?
Price estimate
We do not have a price for the Sharp TMV-1-MP-3 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Of Sharp's CNC knee mills, the TMV-1-MP-3 is the most heavily equipped: three servo axes, an NT-40 spindle and a 5 hp (3.72 kW) motor. It is also the heaviest of the group at 3750 lb (1701 kg).
Think of it as the upper limit of what a knee mill does under CNC. The MILLPWR G2 control moves the table 31 in (787 mm) and 15.5 in (393 mm) and feeds the Z axis through 5 in (127 mm), so a complete part program, with roughing passes stepped down in depth, runs without the operator touching a handle. The 40-taper spindle lets those passes use a face mill or an indexable end mill of useful size.
Its limits are those of the frame. A knee, a ram and a tilting head give a wide range of positions (the ram moves 18.5 in (470 mm), the knee 15.3 in (388.62 mm) and the head tilts 90° sideways and 45° fore and aft), but every one of those joints is a place where a heavy cut can deflect the machine. Five horsepower on this frame is for steady cuts with sharp tools, not for hogging.
Sharp lists an NT-30 spindle in lieu of the NT-40 as an option. Spindle speed is 60 - 4500 rpm, and the machine occupies 7.08 x 6.66 x 7.5 ft (2.15 x 2.02 x 2.28 m).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 31 in (787 mm) |
| Y Axis Travel | 15.5 in (393 mm) |
| Z Axis Travel | 5 in (127 mm) |
| Ram Travel | 18.5 in (470 mm) |
| Knee Travel | 15.3 in (388.62 mm) |
| Distance Spindle Center to Column | 9.8 - 28.3 in (250 - 720 mm) |
| Distance Spindle Nose to Table | 1.6 - 16.9 in (40.64 - 429.26 mm) |
| Spindle Taper | NT-40 |
| Max Spindle Speed | 60 - 4500 rpm |
| Spindle Motor Power | 5 hp (3.72 kW) |
| Quill Feed per Rev | 0.0015, 0.003, 0.005 in (0.0381, 0.0762, 0.127 mm) |
| Head Tilt Left Right | 90° |
| Head Tilt Up Down | 45° |
| Machine Dimensions | 7.08 x 6.66 x 7.5 ft (2.15 x 2.02 x 2.28 m) |
| Machine Weight | 3750 lb (1701 kg) |
Specifications sourced from sharp-industries.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Three CNC axes with an NT-40 spindle
- 5 hp (3.72 kW) spindle motor
- Complete programs run with depth under control over 5 in (127 mm)
- Heaviest TMV knee mill at 3750 lb (1701 kg)
- Optional NT-30 spindle for existing tooling
Limitations
- Z stroke under CNC is 5 in (127 mm)
- Knee, ram and tilting head limit rigidity for 5 hp cuts
- No automatic tool change; 40-taper holders are swapped by hand
- Power draw bar and coolant system are optional accessories
Best For
Frequently Asked Questions
01
Spindle and motor. The TMV-1-MP-3 has an NT-40 taper and 5 hp (3.72 kW); the TMV-MP-3 is listed at 3 hp (2.25 kW). The TMV-1-MP-3 is also heavier, 3750 lb (1701 kg) against 3500 lb (1587 kg) for the TMV-MP-3. Travels and control are the same.
02
Head tilt is 90° left and right and 45° up and down. The ram travels 18.5 in (470 mm), placing the spindle center 9.8 - 28.3 in (250 - 720 mm) from the column, and the spindle nose sits 1.6 - 16.9 in (40.64 - 429.26 mm) above the table.
03
The Acu-Rite MILLPWR G2 control has G code and conversational type programming, according to Sharp. A 3 axes digital readout system on the table, saddle and quill is standard, as are an auto lube system and a cross way cover.
04
The floor area is listed as 7.08 x 6.66 x 7.5 ft (2.15 x 2.02 x 2.28 m), width by depth by height, and weight as 3750 lb (1701 kg). The table travels 31 in (787 mm), so allow room at both ends for the table overhang.
More from Sharp
Other Vertical Machining Centers (VMC)
Makino V77L (50 Taper)
Matec VMC B

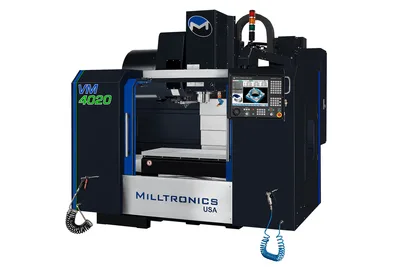

Milltronics VM4020

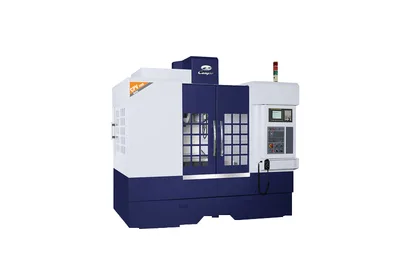

Campro CPV-850B

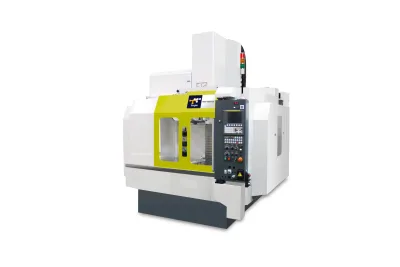

Anger Machining TMV 1050QII
