Sharp KMA-2H-CNC

Q: How much does the Sharp KMA-2H-CNC cost?

The price estimate for the Sharp KMA-2H-CNC is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/sharp-kma-2h-cnc#price; the request is passed to Sharp or an authorised dealer.

Specs verified 2026-10-04 · sharp-industries.com Updated 2026-10-04

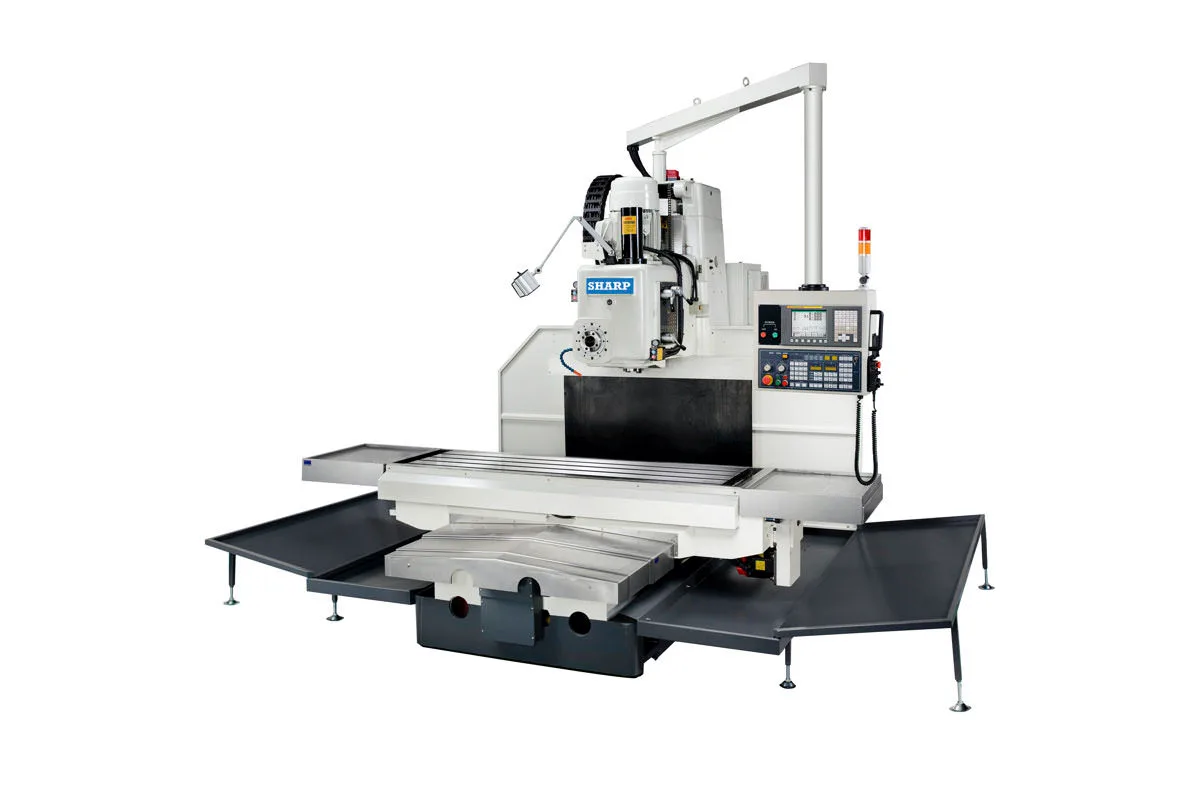

Sharp KMA-H-CNC series bed mill with vertical and horizontal spindles (series photo shown on the KMA-2H-CNC page)

Image: sharp-industries.com, Sharp

Key Specifications

Max Spindle

45-1500 rpm 18 steps

Spindle Taper

NT50

Table Size

74.8 x 19.7 in (1900 x 500 mm)

Spindle Power

4 hp, 10 hp (3 kW, 7.45 kW)

Accuracy

0.00039 in (0.01 mm)

x axis travel

59 in (1500 mm)

How much does the Sharp KMA-2H-CNC cost?

Price estimate

Uncertain

We do not have a price for the Sharp KMA-2H-CNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Sharp KMA-2H-CNC is a CNC bed mill with both a vertical and a horizontal spindle, and of the four KMA-H sizes it is the one whose travel rows read cleanly: 59 in (1500 mm) in X, 35.4 in (900 mm) in Y and 31 in (787 mm) in Z.

Those Y and Z figures are large for the table they serve. The table is 74.8 x 19.7 in (1900 x 500 mm), so Y travel is well beyond the table width and Z reaches from the table surface up to 23.7 in (0-602 mm between spindle nose and table). The extra stroke is what a horizontal spindle needs: it has to clear the part, come down beside it and reach in from the side.

Work is limited more by weight than by travel. Maximum workpiece weight is 3500 lb (1587 kg). Add an indexer or rotary table, which are options, and the fixture weight comes out of that allowance.

Both spindles are NT50 with 18 speed steps from 45 rpm to 1,500 rpm, and there is no automatic tool change. The front spindle bearing has a 3.54 in bore and the rear a 3.35 in bore (90 mm and 85 mm). Guideways are a dovetail on X and square ways on Y and Z with Turcite B; the Y ways are spaced 28.35 in (720 mm) apart. The machine weighs 13,200 lb (5987 kg) and needs 25 kVA.

Full Specifications

Parameter	Value
X Axis Travel	59 in (1500 mm)
Y Axis Travel	35.4 in (900 mm)
Z Axis Travel	31 in (787 mm)
Distance Spindle Nose to Table	0-23.7 in (0-602 mm)
Distance Spindle Center to Column	21.6 in (548 mm)
Table Size	74.8 x 19.7 in (1900 x 500 mm)
Table Height From Floor	32.25 in (820 mm)
Max Table Load	3500 lb (1587 kg)
T-Slots	5 x 0.7 x 3.16 in (5 x 17.78 x 80 mm)
Spindle Taper	NT50
Max Spindle Speed	45-1500 rpm 18 steps
Spindle Motor Power	4 hp, 10 hp (3 kW, 7.45 kW)
Spindle Bearing Bore	3.54 in (Front) / 3.35 in (Rear) (90 mm (Front) / 85 mm (Rear))
Positioning Accuracy	0.00039 in (0.01 mm)
X Axis Way Size Spacing	2.33+3.07 in / 16.54 in (59.2+78 mm / 420 mm)
Y Axis Way Size Spacing	4.72+4.72 in / 28.35 in (120+120 mm / 720 mm)
Z Axis Way Size Spacing	3.94+3.94 in / 15.75 in (100+100 mm / 400 mm)
Power Requirement	25 kVA
Air Requirement	6-8kg/cm2
Machine Height	117.32 in (2980 mm)
Machine Weight	13,200 lb (5987 kg)

Specifications sourced from sharp-industries.com — verified 2026-10-04

Strengths & Limitations

Strengths

59 in (1500 mm), 35.4 in (900 mm) and 31 in (787 mm) of X, Y and Z travel
Vertical and horizontal NT50 spindles with 18 speeds each
Spindle nose comes down to the table: 0-23.7 in (0-602 mm)
Square Y-axis ways spaced 28.35 in (720 mm) apart
0.00039 in (0.01 mm) listed positioning accuracy

Limitations

Workpiece weight limited to 3500 lb (1587 kg)
Table is only 19.7 in wide
No automatic tool change on either of the two spindles
Indexer and rotary table for 5-sided work are optional items

Best For

Housings and blocks machined on top and sides in one clamping Deep side features reached with the horizontal spindle Parts up to 59 in long and 3500 lb Low-volume heavy milling in steel and cast iron

Frequently Asked Questions

01 What are the travels of the KMA-2H-CNC?

X axis travel is 59 in (1500 mm), Y axis travel 35.4 in (900 mm) and Z axis travel 31 in (787 mm). Spindle nose to table is 0-23.7 in (0-602 mm) and spindle center to column is 21.6 in (548 mm).

02 How does the KMA-2H-CNC differ from the KMA-2-CNC?

The KMA-2-CNC has one vertical spindle, 26 in (660 mm) of Y travel and 23.6 in (600 mm) of Z travel, and carries 4,400 lb (2,000 kg). The KMA-2H-CNC adds a horizontal spindle and has 35.4 in (900 mm) of Y and 31 in (787 mm) of Z, with a 3500 lb (1587 kg) weight limit. X travel is 59 in (1500 mm) on both.

03 Can the KMA-2H-CNC machine five sides of a part?

Yes, with options. Sharp states that with the indexer or rotary table, which are optional items, the machine can perform 5-sided operations at one setup. The horizontal spindle reaches the sides while the vertical spindle works the top.

04 What guideways does the KMA-2H-CNC use?

Plain ways with Turcite B: a dovetail guide way on the X axis and square guide ways on Y and Z. Sharp lists the X ways at 2.33+3.07 in with 16.54 in spacing, the Y ways at 4.72+4.72 in with 28.35 in spacing and the Z ways at 3.94+3.94 in with 15.75 in spacing.
