Sharp SVL-4525SX-F

Q: How much does the Sharp SVL-4525SX-F cost?

The price estimate for the Sharp SVL-4525SX-F is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/sharp-svl-4525sx-f#price; the request is passed to Sharp or an authorised dealer.

Specs verified 2026-10-04 · sharp-industries.com Updated 2026-10-04

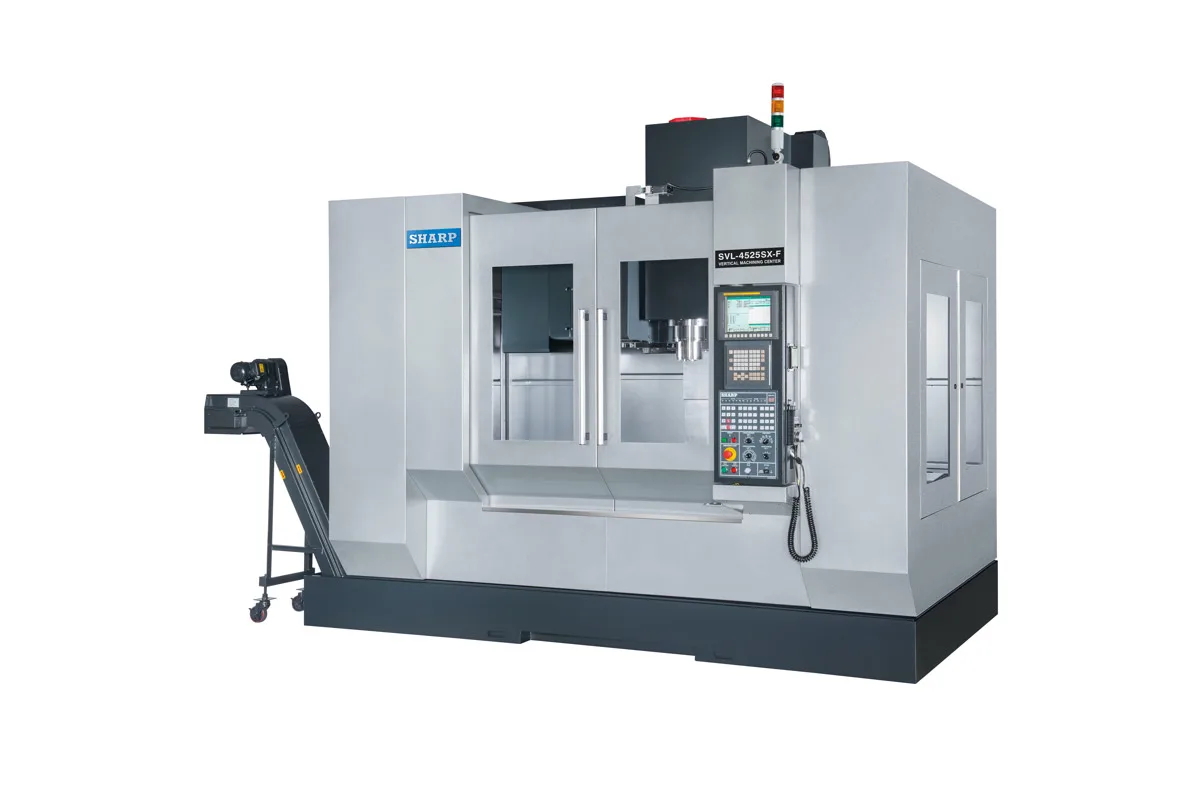

Sharp SVL-4525SX-F (SVL-4500 series) vertical machining center

Image: sharp-industries.com, Sharp

Key Specifications

Max Spindle

15,000 (ceramic bearing)

Spindle Taper

CAT-40, Big plus

Tool Capacity

Table Size

51.2 x 25 in (1300 x 635 mm)

Spindle Power

20/25 hp (15/18.5 kW)

Accuracy

0.0002 in (0.005 mm)

How much does the Sharp SVL-4525SX-F cost?

Price estimate

Uncertain

We do not have a price for the Sharp SVL-4525SX-F that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Sharp SVL-4525SX-F is a 15,000 rpm vertical machining center with 45.3 in (1150 mm) of X travel, 25 in (635 mm) of Y and 20.1 in (510 mm) of Z. Its table, 51.2 x 25 in (1300 x 635 mm), takes 1760 lb (800 kg).

Sharp describes the guideway layout as 2 high quality linear roller ways on X/Y/Z axis travel & 2 extra box ways on Y axis travel. The extra pair sits under the saddle, where a wide table overhangs most, and the 31.5 in (800 mm) from spindle center to column shows how deep the throat is. Ball screws are 1.57 in (40 mm) in diameter. Linear scales by Mitutoyo on three axes are a standard accessory here, which is unusual at this size and matters to anyone holding position over a long shift as the screws warm up.

Spindle power is 20/25 hp (15/18.5 kW) (continuous and short-term ratings) through a direct drive to a CAT-40 Big plus nose with ceramic bearings. The feed range is as wide as the rapids: cutting feed goes to 1417 ipm (36,000 mm/min). A 30-tool side-mount changer needs 2 sec tool to tool and 7 sec chip to chip, and limits tools to 2.95 in (75 mm) diameter when the pockets beside them are full.

The SVL-4528SX-F is the same machine with 28 in (711 mm) of Y. If the parts fit inside 25 in, nothing else in the table separates the two. Plan for 18,260 lb (8300 kg) on the floor, a 171.5 in (4356 mm) width and 35 kVA of 220 V three-phase supply.

Full Specifications

Parameter	Value
X Axis Travel	45.3 in (1150 mm)
Y Axis Travel	25 in (635 mm)
Z Axis Travel	20.1 in (510 mm)
Distance Spindle Nose to Table	5.1-25.2 in (130-640 mm)
Distance Spindle Center to Column	31.5 in (800 mm)
Table Size	51.2 x 25 in (1300 x 635 mm)
Max Table Load	1760 lb (800 kg)
T-Slots	5 x 0.7 x 3.9 in (5 x 18 x 100 mm)
Spindle Taper	CAT-40, Big plus
Max Spindle Speed	15,000 (ceramic bearing)
Spindle Motor Power	20/25 hp (15/18.5 kW)
Spindle Drive	Direct Drive
Tool Changer Type	Side Mount
Tool Capacity	30
Max Tool Diameter (full magazine)	2.95 in (75 mm)
Max Tool Diameter Without Adjacent Tools	5.9 in (150 mm)
Max Tool Length	11.8 in (300 mm)
Max Tool Weight	15.4 lb (7 kg)
Tool Change Time	2 sec
Chip to Chip Time	7 sec
Tool Selection	Random
Rapid Traverse Xyz	X/Y/Z 1417 ipm (36,000 mm/min)
Cutting Feed Rate	0.04-1417 ipm (1-36,000 mm/min)
Axis Drive	Direct Drive
Positioning Accuracy	0.0002 in (0.005 mm)
Repeatability	0.00012 in (0.003 mm)
Ballscrew Diameter	1.57 in (40 mm)
Coolant Tank Capacity	52.8 gal (200 L)
Coolant Nozzles	4
Floor Space	W: 171.5 in (4356 mm) x 134.3 in (3410 mm)
Machine Weight	18,260 lb (8300 kg)
Door Opening	45.3 in (1150 mm)
Power Requirement	220V / 3 Phase / 35 kVA / 60 Hz
Air Requirement	6 CFM at 88 psi

Specifications sourced from sharp-industries.com — verified 2026-10-04

Strengths & Limitations

Strengths

15,000 rpm direct-drive spindle with ceramic bearings on a 20/25 hp (15/18.5 kW) motor
3 axes linear scales (MITUTOYO) are listed as standard accessories
Two extra box ways support the Y axis in addition to the linear roller ways
Cutting feed up to 1417 ipm (36,000 mm/min), equal to the rapid traverse
CTS prepped (70 bar) and 4th axis wiring are standard

Limitations

Tools next to occupied pockets are limited to 2.95 in (75 mm) in diameter
Chip-to-chip time is 7 sec, slow next to the 2 sec arm swap
Needs 35 kVA of supply and 171.5 in (4356 mm) of width
Y travel is 25 in (635 mm); the SVL-4528SX-F has 28 in (711 mm)

Best For

High-speed finishing of molds and plates up to 1760 lb (800 kg) Aluminium structural parts within 45.3 x 25 in Work that needs scale feedback on X, Y and Z Jobs prepared for through-spindle coolant at 70 bar

Frequently Asked Questions

01 What spindle does the SVL-4525SX-F have?

A CAT-40 Big plus spindle on ceramic bearings, direct driven, with a maximum of 15,000 rpm in Sharp's table. The motor is rated 20/25 hp (15/18.5 kW) as continuous and short-term ratings. Sharp's overview summarises it as a 15k rpm, direct drive spindle with a 25 HP motor.

02 Are linear scales standard on the SVL-4525SX-F?

Yes. Sharp lists 3 axes linear scales (MITUTOYO) among the standard accessories, and repeats 3 axes Linear Scales (Mitutoyo) in the overview of the SVL-4500 series. Positioning accuracy is given as 0.0002 in (0.005 mm) and repeatability as 0.00012 in (0.003 mm).

03 How do the SVL-4525SX-F and SVL-4528SX-F differ?

In Y travel only, as far as Sharp's table shows: 25 in (635 mm) on the SVL-4525SX-F against 28 in (711 mm) on the SVL-4528SX-F. Both list 45.3 in (1150 mm) of X, 20.1 in (510 mm) of Z, the same 51.2 x 25 in (1300 x 635 mm) table and the same weight.

04 What options does Sharp list for the SVL-4525SX-F?

A FANUC 2 G Data server with Ethernet, 2 M memory, Nano smoothing, Bell type acceleration/deceleration and a riser block (3.9", 7.9"). The standard memory is 1 M. A flat type chip conveyor, CTS preparation at 70 bar and 4th axis wiring come with the machine.
