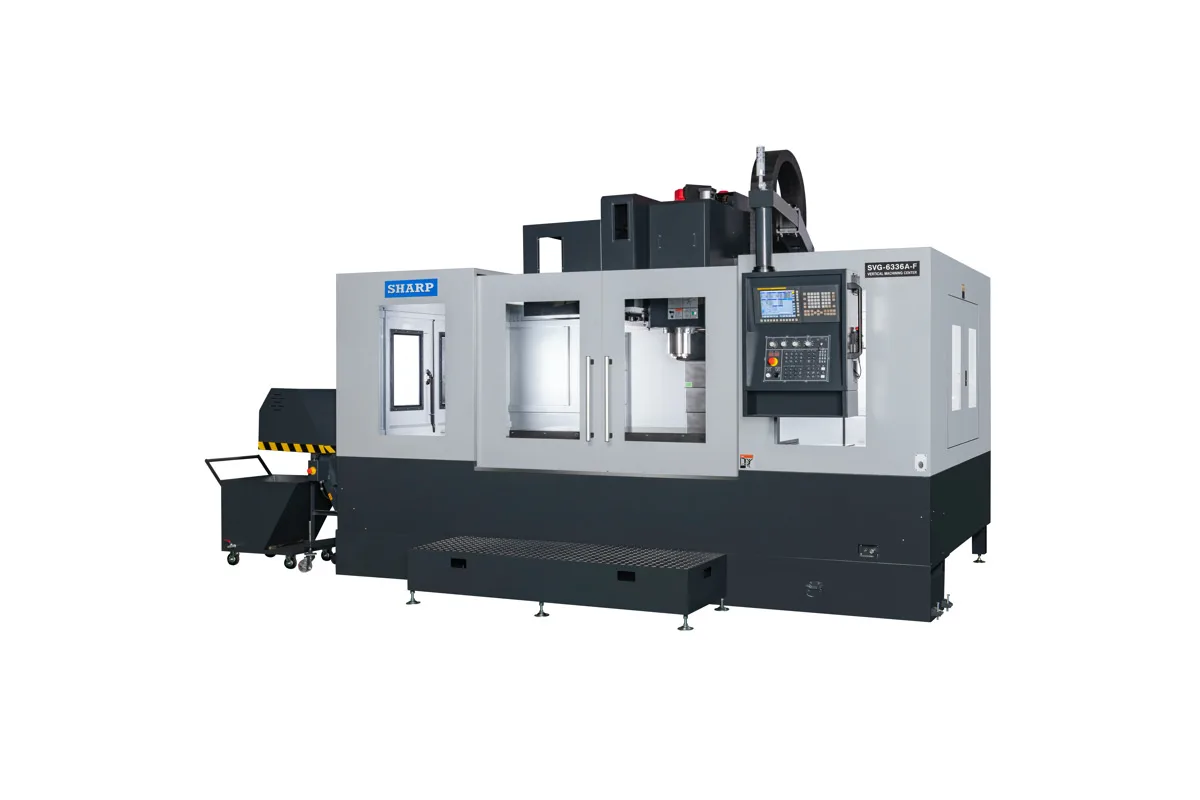

Sharp SVG-6336A-F
Image: sharp-industries.com, Sharp
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
Accuracy
Repeatability
How much does the Sharp SVG-6336A-F cost?
Price estimate
We do not have a price for the Sharp SVG-6336A-F that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Sharp SVG-6336A-F is a 50-taper, geared-head vertical machining center on four hardened and ground box ways, with 62.99 in (1600 mm) of X travel, 35.43 in (900 mm) of Y and 27.56 in (700 mm) of Z. Sharp says the SVG series was engineered for hard metal machining, and every figure on the page points that way.
Start with the spindle. A CAT 50 nose, a 2 speed gear transmission and a 22/26 kW motor give 427 ft-lb of torque on the short-term rating, while top speed is only 6000 rpm. Tools are held with 1800 kgf of clamp force and may be ø5 in (ø127 mm) in diameter with full pockets or ø9.84 in (ø250 mm) with the neighbours empty, up to 33 lb (15 kg) each. This is a machine for face mills, large drills and boring bars, not for small end mills at high surface speed.
The table is 70.87 x 31.5 in (1800 x 800 mm), stands 41.73 in (1060 mm) off the floor and takes 5511 lb (2500 kg). Box ways lined with turcite B trade speed for damping: rapids are 590 in/min on X and Y and 472 in/min on Z, and cutting feed is 236 in/min (6 m/min). Flood coolant is delivered at 290 psi (20 bar) and 30 Bar CTS preparation is standard.
Sharp's overview gives the side-mount tool changer as 32T and lists 40 tools in lieu of 32T as an option. The control is a FANUC Oi-MF with a 10.4" LCD color screen. Allow for 35,274 lb (16,000 kg) of machine and a 40 kVA supply.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 62.99 in (1600 mm) |
| Y Axis Travel | 35.43 in (900 mm) |
| Z Axis Travel | 27.56 in (700 mm) |
| Distance Spindle Center to Column | 33.46 in (850 mm) |
| Table Size | 70.87 x 31.5 in (1800 x 800 mm) |
| Table Height From Floor | 41.73 in (1060 mm) |
| Max Table Load | 5511 lb (2500 kg) |
| T-Slots | 22 x 6T x 6.3 in (22 x 6T x 160 mm) |
| Spindle Taper | CAT 50 |
| Max Spindle Speed | 6000 rpm |
| Spindle Motor Power | 22/26 kW (29.5/34.9 hp) |
| Spindle Torque | 427 ft-lb(α22i / 6000rpm) (579 Nm (α22i / 6000rpm)) |
| Spindle Motor Model | α22i |
| Spindle Drive | 2 speed gear |
| Spindle Bearing Bore | 3.94 in (100 mm) |
| Spindle Lubrication | Grease |
| Spindle Cooling | Chilled Oil |
| Tool Clamp Force | 1800 kgf |
| Tool Changer Type | Side Mount |
| Max Tool Diameter (full magazine) | ø5 in (ø127 mm) |
| Max Tool Diameter Without Adjacent Tools | ø9.84 in (ø250 mm) |
| Max Tool Length | 11.81 in (300 mm) |
| Max Tool Weight | 33 lb (15 kg) |
| Tool Change Time | 4.39 sec(cam-box-only) |
| Tool Selection | Bi-direction Random |
| Rapid Traverse Xyz | 590 / 590 / 472 in/min (15 / 15 / 12 m/min) |
| Cutting Feed Rate | 236 in/min (6 m/min) |
| Axis Motors | α22i / α22i / α30iB |
| Positioning Accuracy | 0.01 mm (0.00039 in), JIS standard |
| Repeatability | 0.006 mm (0.00024 in), JIS standard |
| Guideway Type | Square guide way with turcite B |
| X Axis Way Size Spacing | 4.84+4.84 in / 23.86 in (123+123 mm / 606 mm) |
| Y Axis Way Size Spacing | 4.72+4.72+4.72+4.72 in / 55.91 in (120+120+120+120 mm / 1420 mm) |
| Z Axis Way Size Spacing | 7.09+7.09 in / 23.62 in (180+180 mm / 600 mm) |
| Coolant Tank Capacity | 132 gal (500 L) |
| Coolant Pressure | 290 psi (20 bar) |
| Machine Dimensions | 175.5 x 144.84 x 137.8 in (4450 x 3679 x 3500 mm) |
| Machine Height | 137.8 in (3500 mm) |
| Machine Weight | 35274 lb (16000 kg) |
| Door Opening | 78.74 in (2000 mm) |
| Power Requirement | 40 kVA |
| Air Requirement | 80-110 psi (6-8kg/cm2) |
Specifications sourced from sharp-industries.com — verified 2026-10-04
Strengths & Limitations
Strengths
- CAT 50 geared-head spindle with 427 ft-lb (579 Nm) of torque on the short-term rating
- Four hardened and ground box ways with turcite B, hand scraped per Sharp
- Table load of 5511 lb (2500 kg) on a 70.87 x 31.5 in (1800 x 800 mm) table
- Spindle chiller, oil skimmer, 30 Bar CTS prep and 4th axis prep are standard accessories
- 78.74 in (2000 mm) operator door opening
Limitations
- Spindle speed stops at 6000 rpm
- Rapid traverse is 590 / 590 / 472 in/min (15 / 15 / 12 m/min), slow beside linear-way machines
- Tool change takes 4.39 sec for the cam box alone
- AICC 200 blocks look ahead and 2 MB part program storage are options, not standard
Best For
Frequently Asked Questions
01
Sharp lists 427 ft-lb (579 Nm) on the short-term rating with the α22i motor, through a 2 speed gear transmission. The motor is rated 22/26 kW continuous and short-term, and Sharp's overview calls it a 35 HP motor. Maximum speed is 6000 rpm. The spindle is grease lubricated and cooled with chilled oil.
02
Sharp's page is not consistent. The overview states a side mount ATC with 32T and the options list offers 40 tools in lieu of 32T, so this page does not carry a tool capacity row. Tool limits are clear: ø5 in (ø127 mm) diameter, ø9.84 in (ø250 mm) without an adjacent tool, 11.81 in (300 mm) long and 33 lb (15 kg).
03
Positioning accuracy of 0.01 mm and repeatability of 0.006 mm, both to the JIS standard. Sharp adds that accuracy and repeatability are calibrated by laser interferometer and that a ball bar test checks the circular path against the programmed one.
04
The machine measures 175.5 x 144.84 x 137.8 in (4450 x 3679 x 3500 mm) and weighs 35,274 lb (16,000 kg). It needs a 40 kVA electrical supply and air at 80-110 psi. The coolant tank holds 132 gal (500 L) according to the specification table.
